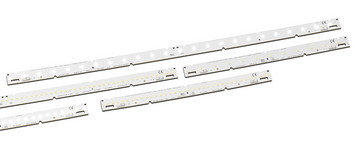

LED Line SMD W2 ComfortLine Gen.3

LED-Modul für lineare Beleuchtungsanwendungen

LED-Einbau-Linearmodule, zur Integration hauptsächlich in lineare Leuchten. Erhältlich in verschiedenen Lumenpaketen und auch in verschiedenen Längen, mit integrierter Steckklemme für TopSide- und BackSide-Anschlussmöglichkeiten. Passt perfekt zum W2-Linearoptiksystem mit Einzel- und Tunnellinsenvarianten.

Produktvorteile

Geringe Farbtoleranz: 3-fach MacAdam
In verschiedenen Farbtemperaturen erhältlich
In verschiedenen Längen verfügbar
Kombinierbar mit VS Optiken
Mehrere Lumenpakete verfügbar
Produktgarantie: 5 Jahre

Effizienz: bis zu 209 lm/W

Lange Lebensdauer: bis zu 93.000 Std.

Wählen Sie eine Variante:

LED Line SMD W2 ComfortLine Gen.3, 70 mm

Allgemeine Daten

Best.-Nr.	Typ	LED-Anzahl	Familien-Datenblatt	Länge	Breite	Höhe	LED-Technologie	LED-Farbe	Korrelierte Farbtemperatur	Abstrahlwinkel
573500	MLC SC W2/70 T/6/840 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	69 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573501	MLC SC W2/70 T/6/940 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	69 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573621	MLC SC W2/70 T/6/865 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	69 mm	20 mm	6.1 mm	SMD	kaltweiß	6500 K	120°
573916	MLC SC W2/70 T/3R/940 G3	3 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	69 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573917	MLC SC W2/70 T/3R/840 G3	3 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	69 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573979	MLC SC W2/70 S/3R/840 G3	3 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	69 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573980	MLC SC W2/70 S/6/840 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	69 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°

Elektrische Betriebsdaten

Best.-Nr.	Typ	LED-Anzahl	Betriebsstrom	Typ. Spannung DC	Typ. Leistungsaufnahme
573500	MLC SC W2/70 T/6/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W
573501	MLC SC W2/70 T/6/940 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W
573621	MLC SC W2/70 T/6/865 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W
573916	MLC SC W2/70 T/3R/940 G3	3 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	2.6 V 2.7 V 2.7 V 2.7 V 2.8 V 2.8 V	0.4 W 0.7 W 0.8 W 0.9 W 1.4 W 2 W
573917	MLC SC W2/70 T/3R/840 G3	3 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	2.6 V 2.7 V 2.7 V 2.7 V 2.8 V 2.8 V	0.4 W 0.7 W 0.8 W 0.9 W 1.4 W 2 W
573979	MLC SC W2/70 S/3R/840 G3	3 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	2.6 V 2.7 V 2.7 V 2.7 V 2.8 V 2.8 V	0.4 W 0.7 W 0.8 W 0.9 W 1.4 W 2 W
573980	MLC SC W2/70 S/6/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W

Optische Betriebsdaten

Best.-Nr.	Typ	LED-Anzahl	Strom	Typ. Lichtstrom bei If	Typ. Effizienz bei If	Typ. CRI (Ra)
573500	MLC SC W2/70 T/6/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	165 lm 265 lm 315 lm 365 lm 510 lm 695 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573501	MLC SC W2/70 T/6/940 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	145 lm 235 lm 275 lm 320 lm 445 lm 605 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573621	MLC SC W2/70 T/6/865 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	165 lm 265 lm 315 lm 365 lm 510 lm 695 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573916	MLC SC W2/70 T/3R/940 G3	3 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	70 lm 115 lm 140 lm 160 lm 220 lm 300 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573917	MLC SC W2/70 T/3R/840 G3	3 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 lm 135 lm 160 lm 185 lm 255 lm 345 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573979	MLC SC W2/70 S/3R/840 G3	3 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 lm 135 lm 160 lm 185 lm 255 lm 345 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573980	MLC SC W2/70 S/6/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	165 lm 265 lm 315 lm 365 lm 510 lm 695 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80

Lebensdauer

Best.-Nr.	Typ	LED-Anzahl
573500	MLC SC W2/70 T/6/840 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573501	MLC SC W2/70 T/6/940 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573621	MLC SC W2/70 T/6/865 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573916	MLC SC W2/70 T/3R/940 G3	3 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573917	MLC SC W2/70 T/3R/840 G3	3 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573979	MLC SC W2/70 S/3R/840 G3	3 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573980	MLC SC W2/70 S/6/840 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

EPREL Daten

Best.-Nr.	Typ	EPREL Registrierungs-Nummer	Energieeffizienzklasse
573500	MLC SC W2/70 T/6/840 G3		C
573501	MLC SC W2/70 T/6/940 G3		D
573621	MLC SC W2/70 T/6/865 G3	2269021	C
573916	MLC SC W2/70 T/3R/940 G3		D
573917	MLC SC W2/70 T/3R/840 G3		C
573979	MLC SC W2/70 S/3R/840 G3		C
573980	MLC SC W2/70 S/6/840 G3		C

Best.-Nr.	Typ	LED-Anzahl
573500	MLC SC W2/70 T/6/840 G3	6 Stück
573501	MLC SC W2/70 T/6/940 G3	6 Stück
573621	MLC SC W2/70 T/6/865 G3	6 Stück
573916	MLC SC W2/70 T/3R/940 G3	3 Stück
573917	MLC SC W2/70 T/3R/840 G3	3 Stück
573979	MLC SC W2/70 S/3R/840 G3	3 Stück
573980	MLC SC W2/70 S/6/840 G3	6 Stück

Best.-Nr.	Typ	LED-Anzahl	2D-Zeichnungen	3D-Daten
573500	MLC SC W2/70 T/6/840 G3	6 Stück	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLC_SC_W2-70_x-6-yzz_G3.zip
573501	MLC SC W2/70 T/6/940 G3	6 Stück	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLC_SC_W2-70_x-6-yzz_G3.zip
573621	MLC SC W2/70 T/6/865 G3	6 Stück	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLC_SC_W2-70_x-6-yzz_G3.zip
573916	MLC SC W2/70 T/3R/940 G3	3 Stück	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLC_SC_W2-70_x-6-yzz_G3.zip
573917	MLC SC W2/70 T/3R/840 G3	3 Stück	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLC_SC_W2-70_x-6-yzz_G3.zip
573979	MLC SC W2/70 S/3R/840 G3	3 Stück	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLC_SC_W2-70_x-6-yzz_G3.zip
573980	MLC SC W2/70 S/6/840 G3	6 Stück	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLC_SC_W2-70_x-6-yzz_G3.zip

ldt und ies Daten
LDC_LED_Line_SMD_W2_Comfort_Gen3_W2_Optics.zip

Best.-Nr.	Typ	Prüfzeichen	Prüfzertifikate
573500	MLC SC W2/70 T/6/840 G3
573501	MLC SC W2/70 T/6/940 G3
573621	MLC SC W2/70 T/6/865 G3
573916	MLC SC W2/70 T/3R/940 G3
573917	MLC SC W2/70 T/3R/840 G3
573979	MLC SC W2/70 S/3R/840 G3
573980	MLC SC W2/70 S/6/840 G3

Best.-Nr.	Typ	2D-Zeichnungen	3D-Daten
573500	MLC SC W2/70 T/6/840 G3	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573501	MLC SC W2/70 T/6/940 G3	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573621	MLC SC W2/70 T/6/865 G3	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573916	MLC SC W2/70 T/3R/940 G3	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573917	MLC SC W2/70 T/3R/840 G3	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573979	MLC SC W2/70 S/3R/840 G3	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573980	MLC SC W2/70 S/6/840 G3	2D_MLC_SC_W2-70_x-6-yzz_G3.pdf 2D_MLC_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

LED Line SMD W2 ComfortLine Gen.3, 140 mm

Allgemeine Daten

Best.-Nr.	Typ	LED-Anzahl	Familien-Datenblatt	Länge	Breite	Höhe	LED-Technologie	LED-Farbe	Korrelierte Farbtemperatur	Abstrahlwinkel
573506	MLC SC W2/140 T/12/830 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573507	MLC SC W2/140 T/12/840 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573508	MLC SC W2/140 T/12/930 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573509	MLC SC W2/140 T/12/940 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573623	MLC SC W2/140 S/12/865 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.1 mm	SMD	kaltweiß	6500 K	120°
573912	MLC SC W2/140 T/6R/940 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573913	MLC SC W2/140 T/6R/930 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573914	MLC SC W2/140 T/6R/840 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573915	MLC SC W2/140 T/6R/830 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573918	MLC SC W2/140 B/6R/840 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	6.4 mm	SMD	neutralweiß	4000 K	120°
573981	MLC SC W2/140 S/6R/840 G3	6 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573982	MLC SC W2/140 S/12/840 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	139 mm	20 mm	4.3 mm	SMD	kaltweiß	4000 K	120°

Elektrische Betriebsdaten

Best.-Nr.	Typ	LED-Anzahl	Betriebsstrom	Typ. Spannung DC	Typ. Leistungsaufnahme
573506	MLC SC W2/140 T/12/830 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W
573507	MLC SC W2/140 T/12/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W
573508	MLC SC W2/140 T/12/930 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.8 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W
573509	MLC SC W2/140 T/12/940 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.8 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W
573623	MLC SC W2/140 S/12/865 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W
573912	MLC SC W2/140 T/6R/940 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W
573913	MLC SC W2/140 T/6R/930 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W
573914	MLC SC W2/140 T/6R/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W
573915	MLC SC W2/140 T/6R/830 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W
573918	MLC SC W2/140 B/6R/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W
573981	MLC SC W2/140 S/6R/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	5.2 V 5.3 V 5.4 V 5.4 V 5.5 V 5.7 V	0.8 W 1.3 W 1.6 W 1.9 W 2.8 W 4 W
573982	MLC SC W2/140 S/12/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W

Optische Betriebsdaten

Best.-Nr.	Typ	LED-Anzahl	Strom	Typ. Lichtstrom bei If	Typ. Effizienz bei If	Typ. CRI (Ra)
573506	MLC SC W2/140 T/12/830 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	305 lm 500 lm 595 lm 690 lm 960 lm 1295 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573507	MLC SC W2/140 T/12/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	330 lm 535 lm 635 lm 735 lm 1020 lm 1385 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573508	MLC SC W2/140 T/12/930 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	265 lm 430 lm 510 lm 590 lm 825 lm 1115 lm	169 lm/W 162 lm/W 159 lm/W 156 lm/W 149 lm/W 140 lm/W	90 90 90 90 90 90
573509	MLC SC W2/140 T/12/940 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	285 lm 465 lm 555 lm 640 lm 890 lm 1205 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573623	MLC SC W2/140 S/12/865 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	330 lm 535 lm 635 lm 735 lm 1020 lm 1385 lm	209 lm/W 201 lm/W 197 lm/W 191 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573912	MLC SC W2/140 T/6R/940 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	145 lm 235 lm 275 lm 320 lm 445 lm 605 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573913	MLC SC W2/140 T/6R/930 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	130 lm 215 lm 255 lm 295 lm 410 lm 555 lm	169 lm/W 162 lm/W 159 lm/W 156 lm/W 149 lm/W 140 lm/W	90 90 90 90 90 90
573914	MLC SC W2/140 T/6R/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	165 lm 265 lm 315 lm 365 lm 510 lm 695 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573915	MLC SC W2/140 T/6R/830 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	155 lm 250 lm 295 lm 345 lm 480 lm 650 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573918	MLC SC W2/140 B/6R/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	165 lm 265 lm 315 lm 365 lm 510 lm 695 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573981	MLC SC W2/140 S/6R/840 G3	6 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	165 lm 265 lm 315 lm 365 lm 510 lm 695 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573982	MLC SC W2/140 S/12/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	330 lm 535 lm 635 lm 735 lm 1020 lm 1385 lm	209 lm/W 201 lm/W 197 lm/W 191 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80

Lebensdauer

Best.-Nr.	Typ	LED-Anzahl
573506	MLC SC W2/140 T/12/830 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573507	MLC SC W2/140 T/12/840 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573508	MLC SC W2/140 T/12/930 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573509	MLC SC W2/140 T/12/940 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573623	MLC SC W2/140 S/12/865 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573912	MLC SC W2/140 T/6R/940 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573913	MLC SC W2/140 T/6R/930 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573914	MLC SC W2/140 T/6R/840 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573915	MLC SC W2/140 T/6R/830 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573918	MLC SC W2/140 B/6R/840 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573981	MLC SC W2/140 S/6R/840 G3	6 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573982	MLC SC W2/140 S/12/840 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Best.-Nr.	Typ	LED-Anzahl
573506	MLC SC W2/140 T/12/830 G3	12 Stück
573507	MLC SC W2/140 T/12/840 G3	12 Stück
573508	MLC SC W2/140 T/12/930 G3	12 Stück
573509	MLC SC W2/140 T/12/940 G3	12 Stück
573623	MLC SC W2/140 S/12/865 G3	12 Stück
573912	MLC SC W2/140 T/6R/940 G3	6 Stück
573913	MLC SC W2/140 T/6R/930 G3	6 Stück
573914	MLC SC W2/140 T/6R/840 G3	6 Stück
573915	MLC SC W2/140 T/6R/830 G3	6 Stück
573918	MLC SC W2/140 B/6R/840 G3	6 Stück
573981	MLC SC W2/140 S/6R/840 G3	6 Stück
573982	MLC SC W2/140 S/12/840 G3	12 Stück

Best.-Nr.	Typ	LED-Anzahl	2D-Zeichnungen	3D-Daten
573506	MLC SC W2/140 T/12/830 G3	12 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573507	MLC SC W2/140 T/12/840 G3	12 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573508	MLC SC W2/140 T/12/930 G3	12 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573509	MLC SC W2/140 T/12/940 G3	12 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573623	MLC SC W2/140 S/12/865 G3	12 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573912	MLC SC W2/140 T/6R/940 G3	6 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573913	MLC SC W2/140 T/6R/930 G3	6 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573914	MLC SC W2/140 T/6R/840 G3	6 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573915	MLC SC W2/140 T/6R/830 G3	6 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573918	MLC SC W2/140 B/6R/840 G3	6 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573981	MLC SC W2/140 S/6R/840 G3	6 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip
573982	MLC SC W2/140 S/12/840 G3	12 Stück	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLC_SC_W2-140_x-12-yzz_G3.zip

ldt und ies Daten
LDC_LED_Line_SMD_W2_Comfort_Gen3_W2_Optics.zip

Best.-Nr.	Typ	Prüfzeichen	Prüfzertifikate
573506	MLC SC W2/140 T/12/830 G3
573507	MLC SC W2/140 T/12/840 G3
573508	MLC SC W2/140 T/12/930 G3
573509	MLC SC W2/140 T/12/940 G3
573623	MLC SC W2/140 S/12/865 G3
573912	MLC SC W2/140 T/6R/940 G3
573913	MLC SC W2/140 T/6R/930 G3
573914	MLC SC W2/140 T/6R/840 G3
573915	MLC SC W2/140 T/6R/830 G3
573918	MLC SC W2/140 B/6R/840 G3
573981	MLC SC W2/140 S/6R/840 G3
573982	MLC SC W2/140 S/12/840 G3

Best.-Nr.	Typ	2D-Zeichnungen	3D-Daten
573506	MLC SC W2/140 T/12/830 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573507	MLC SC W2/140 T/12/840 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573508	MLC SC W2/140 T/12/930 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573509	MLC SC W2/140 T/12/940 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573623	MLC SC W2/140 S/12/865 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573912	MLC SC W2/140 T/6R/940 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573913	MLC SC W2/140 T/6R/930 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573914	MLC SC W2/140 T/6R/840 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573915	MLC SC W2/140 T/6R/830 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573918	MLC SC W2/140 B/6R/840 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573981	MLC SC W2/140 S/6R/840 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573982	MLC SC W2/140 S/12/840 G3	2D_MLC_SC_W2-140_x-12-yzz_G3.pdf 2D_MLC_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

LED Line SMD W2 ComfortLine Gen.3, 280 mm

Allgemeine Daten

Best.-Nr.	Typ	LED-Anzahl	Familien-Datenblatt	Länge	Breite	Höhe	LED-Technologie	LED-Farbe	Korrelierte Farbtemperatur	Abstrahlwinkel
573519	MLC SC W2/280 T/24/827 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	warmweiß	2700 K	120°
573520	MLC SC W2/280 T/24/830 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573521	MLC SC W2/280 T/24/840 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573522	MLC SC W2/280 T/24/865 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	kaltweiß	6500 K	120°
573523	MLC SC W2/280 B/24/830 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.4 mm	SMD	warmweiß	3000 K	120°
573524	MLC SC W2/280 B/24/840 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.4 mm	SMD	neutralweiß	4000 K	120°
573525	MLC SC W2/280 S/24/830 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	4.3 mm	SMD	warmweiß	3000 K	120°
573526	MLC SC W2/280 S/24/840 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573527	MLC SC W2/280 T/24/930 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573528	MLC SC W2/280 T/24/940 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573529	MLC SC W2/280 B/24/930 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.4 mm	SMD	warmweiß	3000 K	120°
573530	MLC SC W2/280 B/24/940	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.4 mm	SMD	neutralweiß	4000 K	120°
573531	MLC SC W2/280 S/24/940 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573624	MLC SC W2/280 T/24/965 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	neutralweiß	6500 K	120°
573897	MLC SC W2/280 B/12R/840 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.4 mm	SMD	neutralweiß	4000 K	120°
573898	MLC SC W2/280 S/12R/840 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573899	MLC SC W2/280 S/12R/940 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573900	MLC SC W2/280 T/12R/830 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573901	MLC SC W2/280 T/12R/840 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573902	MLC SC W2/280 T/12R/930 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	279 mm	20 mm	6.1 mm	SMD	neutralweiß	3000 K	120°
573903	MLC SC W2/280 T/12R/940 G3	12 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	280 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°

Elektrische Betriebsdaten

Best.-Nr.	Typ	LED-Anzahl	Betriebsstrom	Typ. Spannung DC	Typ. Leistungsaufnahme
573519	MLC SC W2/280 T/24/827 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573520	MLC SC W2/280 T/24/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573521	MLC SC W2/280 T/24/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573522	MLC SC W2/280 T/24/865 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573523	MLC SC W2/280 B/24/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573524	MLC SC W2/280 B/24/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573525	MLC SC W2/280 S/24/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573526	MLC SC W2/280 S/24/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573527	MLC SC W2/280 T/24/930 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573528	MLC SC W2/280 T/24/940 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573529	MLC SC W2/280 B/24/930 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573530	MLC SC W2/280 B/24/940	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573531	MLC SC W2/280 S/24/940 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573624	MLC SC W2/280 T/24/965 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573897	MLC SC W2/280 B/12R/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.3 W 3.8 W 5.5 W 8 W
573898	MLC SC W2/280 S/12R/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.3 W 3.8 W 5.5 W 8 W
573899	MLC SC W2/280 S/12R/940 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.6 V 10.8 V 10.9 V 11 V 11.2 V 11.5 V	1.6 W 2.7 W 3.3 W 3.8 W 5.6 W 8.1 W
573900	MLC SC W2/280 T/12R/830 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W
573901	MLC SC W2/280 T/12R/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W
573902	MLC SC W2/280 T/12R/930 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W
573903	MLC SC W2/280 T/12R/940 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	10.5 V 10.7 V 10.8 V 10.8 V 11.1 V 11.4 V	1.6 W 2.7 W 3.2 W 3.8 W 5.5 W 8 W

Optische Betriebsdaten

Best.-Nr.	Typ	LED-Anzahl	Strom	Typ. Lichtstrom bei If	Typ. Effizienz bei If	Typ. CRI (Ra)
573519	MLC SC W2/280 T/24/827 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	615 lm 1000 lm 1190 lm 1370 lm 1910 lm 2595 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573520	MLC SC W2/280 T/24/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	615 lm 1000 lm 1190 lm 1370 lm 1910 lm 2595 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573521	MLC SC W2/280 T/24/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	655 lm 1070 lm 1270 lm 1465 lm 2045 lm 2770 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573522	MLC SC W2/280 T/24/865 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	655 lm 1070 lm 1270 lm 1465 lm 2045 lm 2770 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573523	MLC SC W2/280 B/24/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	615 lm 1000 lm 1190 lm 1370 lm 1910 lm 2595 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573524	MLC SC W2/280 B/24/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	655 lm 1070 lm 1270 lm 1465 lm 2045 lm 2770 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573525	MLC SC W2/280 S/24/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	615 lm 1000 lm 1190 lm 1370 lm 1910 lm 2595 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573526	MLC SC W2/280 S/24/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	655 lm 1070 lm 1270 lm 1465 lm 2045 lm 2770 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573527	MLC SC W2/280 T/24/930 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	530 lm 865 lm 1025 lm 1185 lm 1650 lm 2235 lm	169 lm/W 162 lm/W 159 lm/W 156 lm/W 149 lm/W 140 lm/W	90 90 90 90 90 90
573528	MLC SC W2/280 T/24/940 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	570 lm 930 lm 1105 lm 1280 lm 1780 lm 2415 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573529	MLC SC W2/280 B/24/930 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	530 lm 865 lm 1025 lm 1185 lm 1650 lm 2235 lm	169 lm/W 162 lm/W 159 lm/W 156 lm/W 149 lm/W 140 lm/W	90 90 90 90 90 90
573530	MLC SC W2/280 B/24/940	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	570 lm 930 lm 1105 lm 1280 lm 1780 lm 2415 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573531	MLC SC W2/280 S/24/940 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	570 lm 930 lm 1105 lm 1280 lm 1780 lm 2415 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573624	MLC SC W2/280 T/24/965 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	570 lm 930 lm 1105 lm 1280 lm 1780 lm 2415 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573897	MLC SC W2/280 B/12R/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	330 lm 535 lm 635 lm 735 lm 1020 lm 1385 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573898	MLC SC W2/280 S/12R/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	330 lm 535 lm 635 lm 735 lm 1020 lm 1385 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573899	MLC SC W2/280 S/12R/940 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	265 lm 430 lm 510 lm 585 lm 815 lm 1110 lm	166 lm/W 159 lm/W 156 lm/W 153 lm/W 146 lm/W 137 lm/W	90 90 90 90 90 90
573900	MLC SC W2/280 T/12R/830 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	305 lm 500 lm 595 lm 685 lm 955 lm 1295 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573901	MLC SC W2/280 T/12R/840 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	330 lm 535 lm 635 lm 735 lm 1020 lm 1385 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573902	MLC SC W2/280 T/12R/930 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	265 lm 430 lm 510 lm 590 lm 825 lm 1115 lm	169 lm/W 162 lm/W 159 lm/W 156 lm/W 149 lm/W 140 lm/W	90 90 90 90 90 90
573903	MLC SC W2/280 T/12R/940 G3	12 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	285 lm 465 lm 555 lm 640 lm 890 lm 1205 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90

Lebensdauer

Best.-Nr.	Typ	LED-Anzahl
573519	MLC SC W2/280 T/24/827 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573520	MLC SC W2/280 T/24/830 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573521	MLC SC W2/280 T/24/840 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573522	MLC SC W2/280 T/24/865 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573523	MLC SC W2/280 B/24/830 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573524	MLC SC W2/280 B/24/840 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573525	MLC SC W2/280 S/24/830 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573526	MLC SC W2/280 S/24/840 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573527	MLC SC W2/280 T/24/930 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573528	MLC SC W2/280 T/24/940 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573529	MLC SC W2/280 B/24/930 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573530	MLC SC W2/280 B/24/940	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573531	MLC SC W2/280 S/24/940 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573624	MLC SC W2/280 T/24/965 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573897	MLC SC W2/280 B/12R/840 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573898	MLC SC W2/280 S/12R/840 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573899	MLC SC W2/280 S/12R/940 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573900	MLC SC W2/280 T/12R/830 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573901	MLC SC W2/280 T/12R/840 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573902	MLC SC W2/280 T/12R/930 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573903	MLC SC W2/280 T/12R/940 G3	12 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Best.-Nr.	Typ	LED-Anzahl
573519	MLC SC W2/280 T/24/827 G3	24 Stück
573520	MLC SC W2/280 T/24/830 G3	24 Stück
573521	MLC SC W2/280 T/24/840 G3	24 Stück
573522	MLC SC W2/280 T/24/865 G3	24 Stück
573523	MLC SC W2/280 B/24/830 G3	24 Stück
573524	MLC SC W2/280 B/24/840 G3	24 Stück
573525	MLC SC W2/280 S/24/830 G3	24 Stück
573526	MLC SC W2/280 S/24/840 G3	24 Stück
573527	MLC SC W2/280 T/24/930 G3	24 Stück
573528	MLC SC W2/280 T/24/940 G3	24 Stück
573529	MLC SC W2/280 B/24/930 G3	24 Stück
573530	MLC SC W2/280 B/24/940	24 Stück
573531	MLC SC W2/280 S/24/940 G3	24 Stück
573624	MLC SC W2/280 T/24/965 G3	24 Stück
573897	MLC SC W2/280 B/12R/840 G3	12 Stück
573898	MLC SC W2/280 S/12R/840 G3	12 Stück
573899	MLC SC W2/280 S/12R/940 G3	12 Stück
573900	MLC SC W2/280 T/12R/830 G3	12 Stück
573901	MLC SC W2/280 T/12R/840 G3	12 Stück
573902	MLC SC W2/280 T/12R/930 G3	12 Stück
573903	MLC SC W2/280 T/12R/940 G3	12 Stück

Best.-Nr.	Typ	LED-Anzahl	2D-Zeichnungen	3D-Daten
573519	MLC SC W2/280 T/24/827 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573520	MLC SC W2/280 T/24/830 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573521	MLC SC W2/280 T/24/840 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573522	MLC SC W2/280 T/24/865 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573523	MLC SC W2/280 B/24/830 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573524	MLC SC W2/280 B/24/840 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573525	MLC SC W2/280 S/24/830 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573526	MLC SC W2/280 S/24/840 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573527	MLC SC W2/280 T/24/930 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573528	MLC SC W2/280 T/24/940 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573529	MLC SC W2/280 B/24/930 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573530	MLC SC W2/280 B/24/940	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573531	MLC SC W2/280 S/24/940 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573624	MLC SC W2/280 T/24/965 G3	24 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573897	MLC SC W2/280 B/12R/840 G3	12 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573898	MLC SC W2/280 S/12R/840 G3	12 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573899	MLC SC W2/280 S/12R/940 G3	12 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573900	MLC SC W2/280 T/12R/830 G3	12 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573901	MLC SC W2/280 T/12R/840 G3	12 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573902	MLC SC W2/280 T/12R/930 G3	12 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip
573903	MLC SC W2/280 T/12R/940 G3	12 Stück	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLC_SC_W2-280_x-24-yzz_G3.zip

ldt und ies Daten
LDC_LED_Line_SMD_W2_Comfort_Gen3_W2_Optics.zip

Best.-Nr.	Typ	Prüfzeichen	Prüfzertifikate
573519	MLC SC W2/280 T/24/827 G3
573520	MLC SC W2/280 T/24/830 G3
573521	MLC SC W2/280 T/24/840 G3
573522	MLC SC W2/280 T/24/865 G3
573523	MLC SC W2/280 B/24/830 G3
573524	MLC SC W2/280 B/24/840 G3
573525	MLC SC W2/280 S/24/830 G3
573526	MLC SC W2/280 S/24/840 G3
573527	MLC SC W2/280 T/24/930 G3
573528	MLC SC W2/280 T/24/940 G3
573529	MLC SC W2/280 B/24/930 G3
573530	MLC SC W2/280 B/24/940
573531	MLC SC W2/280 S/24/940 G3
573624	MLC SC W2/280 T/24/965 G3
573897	MLC SC W2/280 B/12R/840 G3
573898	MLC SC W2/280 S/12R/840 G3
573899	MLC SC W2/280 S/12R/940 G3
573900	MLC SC W2/280 T/12R/830 G3
573901	MLC SC W2/280 T/12R/840 G3
573902	MLC SC W2/280 T/12R/930 G3
573903	MLC SC W2/280 T/12R/940 G3

Best.-Nr.	Typ	2D-Zeichnungen	3D-Daten
573519	MLC SC W2/280 T/24/827 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573520	MLC SC W2/280 T/24/830 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573521	MLC SC W2/280 T/24/840 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573522	MLC SC W2/280 T/24/865 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573523	MLC SC W2/280 B/24/830 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573524	MLC SC W2/280 B/24/840 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573525	MLC SC W2/280 S/24/830 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573526	MLC SC W2/280 S/24/840 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573527	MLC SC W2/280 T/24/930 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573528	MLC SC W2/280 T/24/940 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573529	MLC SC W2/280 B/24/930 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573530	MLC SC W2/280 B/24/940	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573531	MLC SC W2/280 S/24/940 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573624	MLC SC W2/280 T/24/965 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573897	MLC SC W2/280 B/12R/840 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573898	MLC SC W2/280 S/12R/840 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573899	MLC SC W2/280 S/12R/940 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573900	MLC SC W2/280 T/12R/830 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573901	MLC SC W2/280 T/12R/840 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573902	MLC SC W2/280 T/12R/930 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573903	MLC SC W2/280 T/12R/940 G3	2D_MLC_SC_W2-280_x-24-yzz_G3.pdf 2D_MLC_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

LED Line SMD W2 ComfortLine Gen.3, 560 mm

Allgemeine Daten

Best.-Nr.	Typ	LED-Anzahl	Familien-Datenblatt	Länge	Breite	Höhe	LED-Technologie	LED-Farbe	Korrelierte Farbtemperatur	Abstrahlwinkel
573548	MLC SC W2/560 T/48/827 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	warmweiß	2700 K	120°
573549	MLC SC W2/560 T/48/830 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573550	MLC SC W2/560 T/48/840 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573551	MLC SC W2/560 T/48/865 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	kaltweiß	6500 K	120°
573552	MLC SC W2/560 B/48/830 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.4 mm	SMD	warmweiß	3000 K	120°
573553	MLC SC W2/560 B/48/840 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.4 mm	SMD	neutralweiß	4000 K	120°
573554	MLC SC W2/560 S/48/830 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	4.3 mm	SMD	warmweiß	3000 K	120°
573555	MLC SC W2/560 S/48/840 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573556	MLC SC W2/560 T/48/930 G3		LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573557	MLC SC W2/560 T/48/940 G3		LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573558	MLC SC W2/560 B/48/940 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.4 mm	SMD	neutralweiß	4000 K	120°
573559	MLC SC W2/560 S/48/930 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	4.3 mm	SMD	warmweiß	3000 K	120°
573560	MLC SC W2/560 S/48/940 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573904	MLC SC W2/560 B/24R/830 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.4 mm	SMD	warmweiß	3000 K	120°
573905	MLC SC W2/560 B/24R/840 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.4 mm	SMD	neutralweiß	4000 K	120°
573906	MLC SC W2/560 S/24R/840 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573907	MLC SC W2/560 S/24R/940 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	4.3 mm	SMD	neutralweiß	4000 K	120°
573908	MLC SC W2/560 T/24R/830 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573909	MLC SC W2/560 T/24R/840 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573910	MLC SC W2/560 T/24R/930 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	warmweiß	3000 K	120°
573911	MLC SC W2/560 T/24R/940 G3	24 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.1 mm	SMD	neutralweiß	4000 K	120°
573983	MLC SC W2/560 B/48/965 G3	48 Stück	LED-Line-SMD_W2_Comfort_Gen.3-High_Reliability_L07_14_28_56_DE.pdf	559 mm	20 mm	6.4 mm	SMD	kaltweiß	6500 K	120°

Elektrische Betriebsdaten

Best.-Nr.	Typ	LED-Anzahl	Betriebsstrom	Typ. Spannung DC	Typ. Leistungsaufnahme
573548	MLC SC W2/560 T/48/827 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573549	MLC SC W2/560 T/48/830 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573550	MLC SC W2/560 T/48/840 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573551	MLC SC W2/560 T/48/865 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573552	MLC SC W2/560 B/48/830 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573553	MLC SC W2/560 B/48/840 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573554	MLC SC W2/560 S/48/830 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573555	MLC SC W2/560 S/48/840 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573556	MLC SC W2/560 T/48/930 G3		150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43.4 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573557	MLC SC W2/560 T/48/940 G3		150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43.4 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573558	MLC SC W2/560 B/48/940 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43.4 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 22.2 W 22.2 W 31.9 W
573559	MLC SC W2/560 S/48/930 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43.4 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573560	MLC SC W2/560 S/48/940 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43.4 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 15.2 W 22.2 W 31.9 W
573904	MLC SC W2/560 B/24R/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573905	MLC SC W2/560 B/24R/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573906	MLC SC W2/560 S/24R/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573907	MLC SC W2/560 S/24R/940 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 3.5 W 7.6 W 11.1 W 16 W
573908	MLC SC W2/560 T/24R/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573909	MLC SC W2/560 T/24R/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 6.5 W 7.6 W 11.1 W 16 W
573910	MLC SC W2/560 T/24R/930 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	20.9 V 21.3 V 21.5 V 21.7 V 22.2 V 22.8 V	3.1 W 5.3 W 3.5 W 7.6 W 11.1 W 16 W
573911	MLC SC W2/560 T/24R/940 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	21.1 V 21.6 V 21.8 V 21.9 V 22.4 V 23 V	3.2 W 5.4 W 6.5 W 7.7 W 11.2 W 16.1 W
573983	MLC SC W2/560 B/48/965 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	41.8 V 42.7 V 43 V 43.4 V 44.4 V 45.6 V	6.3 W 10.7 W 12.9 W 22.2 W 22.2 W 31.9 W

Optische Betriebsdaten

Best.-Nr.	Typ	LED-Anzahl	Strom	Typ. Lichtstrom bei If	Typ. Effizienz bei If	Typ. CRI (Ra)
573548	MLC SC W2/560 T/48/827 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1230 lm 2000 lm 2375 lm 2745 lm 3825 lm 5185 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573549	MLC SC W2/560 T/48/830 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1230 lm 2000 lm 2375 lm 2745 lm 3825 lm 5185 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573550	MLC SC W2/560 T/48/840 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1315 lm 2140 lm 2540 lm 2935 lm 4085 lm 5545 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573551	MLC SC W2/560 T/48/865 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1315 lm 2140 lm 2540 lm 2935 lm 4085 lm 5545 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573552	MLC SC W2/560 B/48/830 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1230 lm 2000 lm 2375 lm 2745 lm 3825 lm 5185 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573553	MLC SC W2/560 B/48/840 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1315 lm 2140 lm 2540 lm 2935 lm 4085 lm 5545 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573554	MLC SC W2/560 S/48/830 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1230 lm 2000 lm 2375 lm 2745 lm 3825 lm 5185 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573555	MLC SC W2/560 S/48/840 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1315 lm 2140 lm 2540 lm 2935 lm 4085 lm 5545 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573556	MLC SC W2/560 T/48/930 G3		150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1050 lm 1710 lm 2030 lm 2345 lm 3270 lm 4435 lm	166 lm/W 159 lm/W 156 lm/W 159 lm/W 146 lm/W 137 lm/W	90 90 90 90 90 90
573557	MLC SC W2/560 T/48/940 G3		150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1125 lm 1830 lm 2170 lm 2510 lm 3495 lm 4735 lm	177 lm/W 170 lm/W 166 lm/W 163 lm/W 156 lm/W 147 lm/W	90 90 90 90 90 90
573558	MLC SC W2/560 B/48/940 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1145 lm 1865 lm 2210 lm 2555 lm 3560 lm 4825 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573559	MLC SC W2/560 S/48/930 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1050 lm 1710 lm 2030 lm 2345 lm 3270 lm 4435 lm	166 lm/W 159 lm/W 156 lm/W 159 lm/W 146 lm/W 137 lm/W	90 90 90 90 90 90
573560	MLC SC W2/560 S/48/940 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1125 lm 1830 lm 2170 lm 2510 lm 3495 lm 4735 lm	177 lm/W 170 lm/W 166 lm/W 163 lm/W 156 lm/W 147 lm/W	90 90 90 90 90 90
573904	MLC SC W2/560 B/24R/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	615 lm 1000 lm 1190 lm 1370 lm 1910 lm 2595 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573905	MLC SC W2/560 B/24R/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	655 lm 1070 lm 1270 lm 1465 lm 2045 lm 2770 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573906	MLC SC W2/560 S/24R/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	655 lm 1070 lm 1270 lm 1465 lm 2045 lm 2770 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573907	MLC SC W2/560 S/24R/940 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	570 lm 930 lm 1085 lm 1280 lm 1780 lm 2415 lm	182 lm/W 175 lm/W 166 lm/W 168 lm/W 160 lm/W 151 lm/W	80 80 80 80 80 80
573908	MLC SC W2/560 T/24R/830 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	615 lm 1000 lm 1190 lm 1370 lm 1910 lm 2595 lm	196 lm/W 188 lm/W 184 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573909	MLC SC W2/560 T/24R/840 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	655 lm 1070 lm 1270 lm 1465 lm 2045 lm 2770 lm	209 lm/W 201 lm/W 197 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573910	MLC SC W2/560 T/24R/930 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	530 lm 865 lm 1025 lm 1185 lm 1650 lm 2235 lm	169 lm/W 162 lm/W 159 lm/W 156 lm/W 149 lm/W 140 lm/W	90 90 90 90 90 90
573911	MLC SC W2/560 T/24R/940 G3	24 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	570 lm 930 lm 1085 lm 1280 lm 1780 lm 2415 lm	182 lm/W 175 lm/W 166 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573983	MLC SC W2/560 B/48/965 G3	48 Stück	150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	1145 lm 1865 lm 2210 lm 2555 lm 3560 lm 4825 lm	182 lm/W 175 lm/W 171 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90

Lebensdauer

Best.-Nr.	Typ	LED-Anzahl
573548	MLC SC W2/560 T/48/827 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573549	MLC SC W2/560 T/48/830 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573550	MLC SC W2/560 T/48/840 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573551	MLC SC W2/560 T/48/865 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573552	MLC SC W2/560 B/48/830 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573553	MLC SC W2/560 B/48/840 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573554	MLC SC W2/560 S/48/830 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573555	MLC SC W2/560 S/48/840 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573556	MLC SC W2/560 T/48/930 G3
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573557	MLC SC W2/560 T/48/940 G3
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573558	MLC SC W2/560 B/48/940 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573559	MLC SC W2/560 S/48/930 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573560	MLC SC W2/560 S/48/940 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573904	MLC SC W2/560 B/24R/830 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573905	MLC SC W2/560 B/24R/840 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573906	MLC SC W2/560 S/24R/840 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573907	MLC SC W2/560 S/24R/940 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573908	MLC SC W2/560 T/24R/830 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573909	MLC SC W2/560 T/24R/840 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573910	MLC SC W2/560 T/24R/930 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573911	MLC SC W2/560 T/24R/940 G3	24 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573983	MLC SC W2/560 B/48/965 G3	48 Stück
Betriebsstrom	Performance-Temperatur (tp)	Betriebslebensdauer	Lichtstromdegradation auf (L)	Ausfallrate (B)
150 mA 250 mA 300 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std. 93000 Std.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Best.-Nr.	Typ	LED-Anzahl
573548	MLC SC W2/560 T/48/827 G3	48 Stück
573549	MLC SC W2/560 T/48/830 G3	48 Stück
573550	MLC SC W2/560 T/48/840 G3	48 Stück
573551	MLC SC W2/560 T/48/865 G3	48 Stück
573552	MLC SC W2/560 B/48/830 G3	48 Stück
573553	MLC SC W2/560 B/48/840 G3	48 Stück
573554	MLC SC W2/560 S/48/830 G3	48 Stück
573555	MLC SC W2/560 S/48/840 G3	48 Stück
573556	MLC SC W2/560 T/48/930 G3
573557	MLC SC W2/560 T/48/940 G3
573558	MLC SC W2/560 B/48/940 G3	48 Stück
573559	MLC SC W2/560 S/48/930 G3	48 Stück
573560	MLC SC W2/560 S/48/940 G3	48 Stück
573904	MLC SC W2/560 B/24R/830 G3	24 Stück
573905	MLC SC W2/560 B/24R/840 G3	24 Stück
573906	MLC SC W2/560 S/24R/840 G3	24 Stück
573907	MLC SC W2/560 S/24R/940 G3	24 Stück
573908	MLC SC W2/560 T/24R/830 G3	24 Stück
573909	MLC SC W2/560 T/24R/840 G3	24 Stück
573910	MLC SC W2/560 T/24R/930 G3	24 Stück
573911	MLC SC W2/560 T/24R/940 G3	24 Stück
573983	MLC SC W2/560 B/48/965 G3	48 Stück

Best.-Nr.	Typ	LED-Anzahl	2D-Zeichnungen	3D-Daten
573548	MLC SC W2/560 T/48/827 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573549	MLC SC W2/560 T/48/830 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573550	MLC SC W2/560 T/48/840 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573551	MLC SC W2/560 T/48/865 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573552	MLC SC W2/560 B/48/830 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573553	MLC SC W2/560 B/48/840 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573554	MLC SC W2/560 S/48/830 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573555	MLC SC W2/560 S/48/840 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573556	MLC SC W2/560 T/48/930 G3		2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573557	MLC SC W2/560 T/48/940 G3		2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573558	MLC SC W2/560 B/48/940 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573559	MLC SC W2/560 S/48/930 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573560	MLC SC W2/560 S/48/940 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573904	MLC SC W2/560 B/24R/830 G3	24 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573905	MLC SC W2/560 B/24R/840 G3	24 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573906	MLC SC W2/560 S/24R/840 G3	24 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573907	MLC SC W2/560 S/24R/940 G3	24 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573908	MLC SC W2/560 T/24R/830 G3	24 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573909	MLC SC W2/560 T/24R/840 G3	24 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573910	MLC SC W2/560 T/24R/930 G3	24 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573911	MLC SC W2/560 T/24R/940 G3	24 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip
573983	MLC SC W2/560 B/48/965 G3	48 Stück	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLC_SC_W2-560_x-48-yzz_G3.zip

ldt und ies Daten
LDC_LED_Line_SMD_W2_Comfort_Gen3_W2_Optics.zip

Best.-Nr.	Typ	Prüfzeichen	Prüfzertifikate
573548	MLC SC W2/560 T/48/827 G3
573549	MLC SC W2/560 T/48/830 G3
573550	MLC SC W2/560 T/48/840 G3
573551	MLC SC W2/560 T/48/865 G3
573552	MLC SC W2/560 B/48/830 G3
573553	MLC SC W2/560 B/48/840 G3
573554	MLC SC W2/560 S/48/830 G3
573555	MLC SC W2/560 S/48/840 G3
573556	MLC SC W2/560 T/48/930 G3
573557	MLC SC W2/560 T/48/940 G3
573558	MLC SC W2/560 B/48/940 G3
573559	MLC SC W2/560 S/48/930 G3
573560	MLC SC W2/560 S/48/940 G3
573904	MLC SC W2/560 B/24R/830 G3
573905	MLC SC W2/560 B/24R/840 G3
573906	MLC SC W2/560 S/24R/840 G3
573907	MLC SC W2/560 S/24R/940 G3
573908	MLC SC W2/560 T/24R/830 G3
573909	MLC SC W2/560 T/24R/840 G3
573910	MLC SC W2/560 T/24R/930 G3
573911	MLC SC W2/560 T/24R/940 G3
573983	MLC SC W2/560 B/48/965 G3

Best.-Nr.	Typ	2D-Zeichnungen	3D-Daten
573548	MLC SC W2/560 T/48/827 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573549	MLC SC W2/560 T/48/830 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573550	MLC SC W2/560 T/48/840 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573551	MLC SC W2/560 T/48/865 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573552	MLC SC W2/560 B/48/830 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573553	MLC SC W2/560 B/48/840 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573554	MLC SC W2/560 S/48/830 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573555	MLC SC W2/560 S/48/840 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573556	MLC SC W2/560 T/48/930 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573557	MLC SC W2/560 T/48/940 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573558	MLC SC W2/560 B/48/940 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573559	MLC SC W2/560 S/48/930 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573560	MLC SC W2/560 S/48/940 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573904	MLC SC W2/560 B/24R/830 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573905	MLC SC W2/560 B/24R/840 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573906	MLC SC W2/560 S/24R/840 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573907	MLC SC W2/560 S/24R/940 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573908	MLC SC W2/560 T/24R/830 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573909	MLC SC W2/560 T/24R/840 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573910	MLC SC W2/560 T/24R/930 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573911	MLC SC W2/560 T/24R/940 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573983	MLC SC W2/560 B/48/965 G3	2D_MLC_SC_W2-560_x-48-yzz_G3.pdf 2D_MLC_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Kontakt

LED Line SMD W2 ComfortLine Gen.3

LED-Modul für lineare Beleuchtungsanwendungen

Produktvorteile

Wählen Sie eine Variante:

LED Line SMD W2 ComfortLine Gen.3, 70 mm

Allgemeine Daten

Elektrische Betriebsdaten

Optische Betriebsdaten

Lebensdauer

EPREL Daten

LED Line SMD W2 ComfortLine Gen.3, 140 mm

Allgemeine Daten

Elektrische Betriebsdaten

Optische Betriebsdaten

Lebensdauer

LED Line SMD W2 ComfortLine Gen.3, 280 mm

Allgemeine Daten

Elektrische Betriebsdaten

Optische Betriebsdaten

Lebensdauer

LED Line SMD W2 ComfortLine Gen.3, 560 mm

Allgemeine Daten

Elektrische Betriebsdaten

Optische Betriebsdaten

Lebensdauer

Kontakt

CREE

Nichia

Ergänzende Sekundäroptiken
