Compact Optics 2x3 for SMD W5 Z15
2x3 optics for Industry and Streetlighting
The optics made of high-quality optical material are designed for installation in luminaires with a glass cover and can be used for many street and industry lighting applications. For the typical lighting situations of the street a uniform and at the same time glare-free light with low color deviations is possible.
Product benefits
- Developed & optimized for High Power LED chips up to a size of 5 mm
- Highly versatile product family for street lighting
- Optical efficiency: up to 97%
Choose a variant:
Compact Optics 2x3 for SMD W5 Z15 50x50 mm IP00 High Power 5050

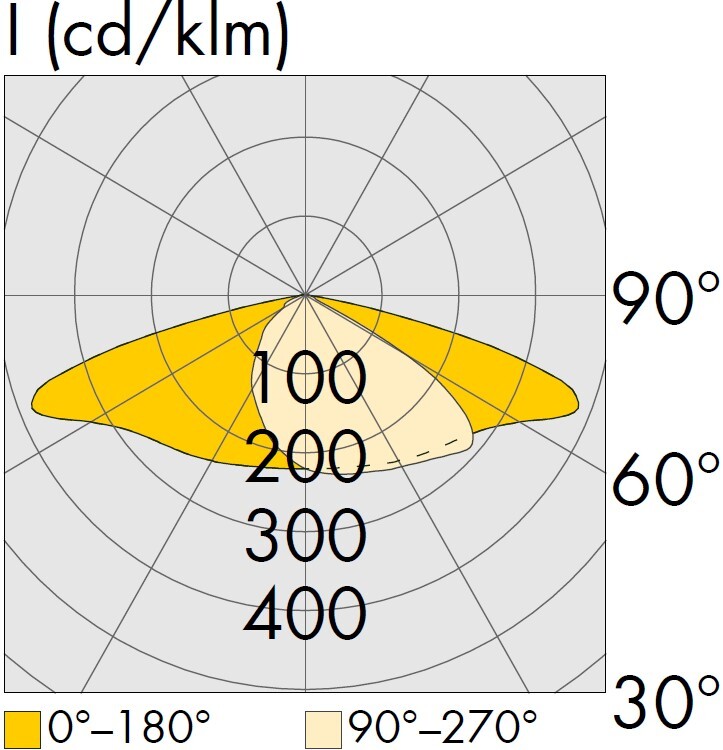

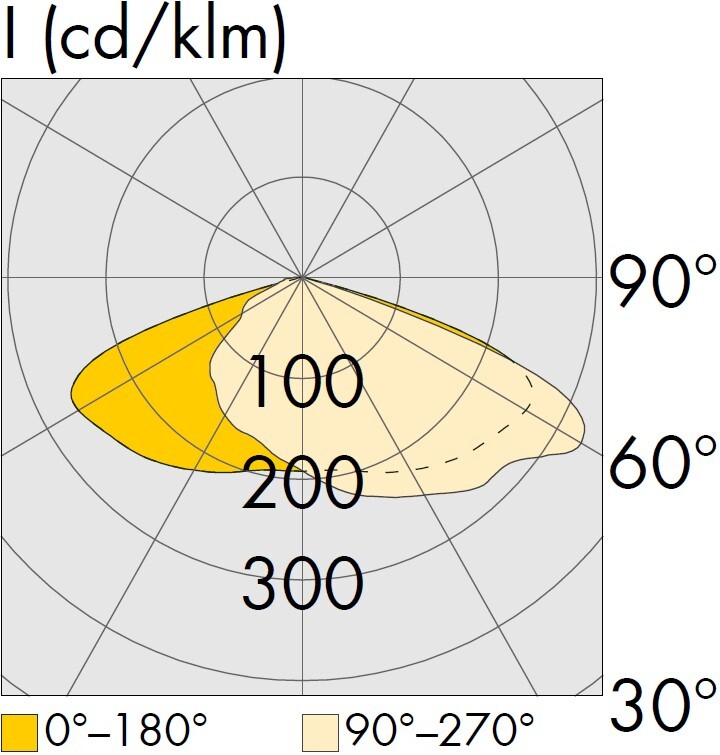

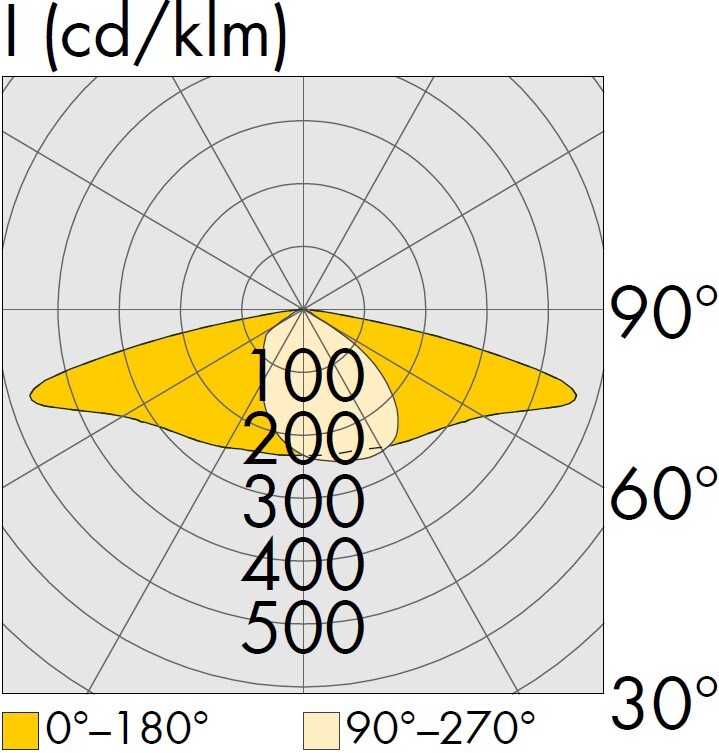

| Ref. No. | Type | Light distribution | Light distribution | Family data sheet | Material | Light transmission | Surface texture | Length | Width | Height | LED technology |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 574263 | 95560 |
|
T2 | PMMA | clear | high-glossy | 50mm | 50mm | 7mm | SMD | |
| 574264 | 95561 |
|
T3 | PMMA | clear | high-glossy | 50mm | 50mm | 7.2mm | SMD | |
| 574266 | 95564 |
|
T4 | PMMA | clear | high-glossy | 50mm | 50mm | 6.5mm | SMD | |
| 574267 | 95566 |
|
VSM | PMMA | clear | high-glossy | 50mm | 50mm | 6.8mm | SMD | |
| 574268 | 95570 |
|
Medium 60° | PC | clear | high-glossy | 50mm | 50mm | 8.8mm | SMD | |
| 574269 | 95571 |
|
Wide 90° | PC | clear | high-glossy | 50mm | 50mm | 7mm | SMD |
| Ref. No. | Type | Light distribution |
|---|---|---|
| 574263 | 95560 | T2 |
| 574264 | 95561 | T3 |
| 574266 | 95564 | T4 |
| 574267 | 95566 | VSM |
| 574268 | 95570 | Medium 60° |
| 574269 | 95571 | Wide 90° |
| Ref. No. | Type | Light distribution | 2D data | 3D data |
|---|---|---|---|---|
| 574263 | 95560 |
|
||
| 574264 | 95561 |
|
||
| 574266 | 95564 |
|
||
| 574267 | 95566 |
|
||
| 574268 | 95570 |
|
||
| 574269 | 95571 |
|
| Ref. No. | Type | Light distribution | ldt und ies data |
|---|---|---|---|
| 574263 | 95560 |
|
|
| 574264 | 95561 |
|
|
| 574266 | 95564 |
|
|
| 574267 | 95566 |
|
|
| 574268 | 95570 |
|
|
| 574269 | 95571 |
|
| Ref. No. | Type | Light distribution |
|---|---|---|
| 574263 | 95560 |
|
| 574264 | 95561 |
|
| 574266 | 95564 |
|
| 574267 | 95566 |
|
| 574268 | 95570 |
|
| 574269 | 95571 |
|
| Ref. No. | Type | ||
|---|---|---|---|
| 574263 | 95560 | ||
| 574264 | 95561 | ||
| 574266 | 95564 | ||
| 574267 | 95566 | ||
| 574268 | 95570 | ||
| 574269 | 95571 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 574263 | 95560 |
|
|
| 574264 | 95561 |
|
|
| 574266 | 95564 |
|
|
| 574267 | 95566 |
|
|
| 574268 | 95570 |
|
|
| 574269 | 95571 |
|
