Linear Optics 4R for SMD W5.5 Industry

Linear 4-row optics for LED Industry SMD W5.5 modules

Due to brilliant surfaces and light distributions the optics made of high-quality PC offer a variety of usage in application fields of industry lighting, e.g. in production or warehouse facilities, sports centers and applications with wide distances between single luminaires. The protection IP65 in combination with the suitability for luminaires with a degree of protection against mechanical load IK08/5,0 ensures the optimal protection against the intrusion of dirt, dust and water as well as mechanical stress and allows the saving of front glass.

Product benefits

  • Glareless and excellent lens design
  • High temperature resistance
  • Suitable for luminaires with impact resistance IK08/5.0
  • UV-resistance
  • Variants with protection class (incl. gasket) IP65

Choose a variant:

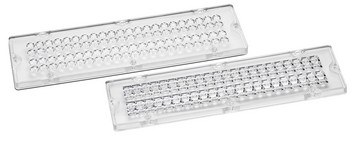

Linear Optics 4R for SMD W5.5 Industry 88 Single Lenses 318 mm IP65

Ref. No. Type Light distribution Light distribution Family data sheet Material Light transmission Surface texture Length Width Height LED technology
571732 97603 Extra Wide 110° PC clear high-glossy 318mm 84mm 11.75mm SMD
565228 97600 Medium 60° PC clear high-glossy 318mm 84mm 11.75mm SMD
565229 97601 Wide 90° PC clear high-glossy 318mm 84mm 11.75mm SMD
565230 97602 High Rack PC clear high-glossy 318mm 84mm 11.75mm SMD
Ref. No. Type Light distribution
571732 97603 Extra Wide 110°
565228 97600 Medium 60°
565229 97601 Wide 90°
565230 97602 High Rack
Ref. No. Type Light distribution
571732 97603
565228 97600
565229 97601
565230 97602
Ref. No. Type
571732 97603
565228 97600
565229 97601
565230 97602
Ref. No. Type 2D data 3D data
571732 97603
565228 97600
565229 97601
565230 97602
