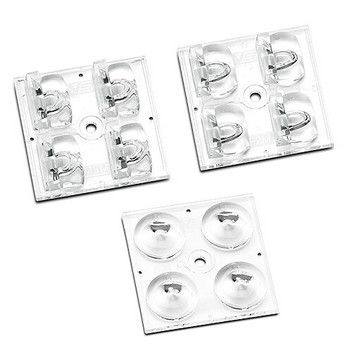

Compact Optics 2x2 for SMD W5 Z15

2x2 Streetlight Optics for LED Linear Allround Boards

The optics made of high-quality optical material are designed for installation in luminaires with a glass cover and can be used for many street lighting applications. For the typical lighting situations of the street a uniform and at the same time glare-free light with low color deviations is possible.

Product benefits

  • Developed & optimized for High Power LED chips up to a size of 5 mm
  • Highly versatile product family for street lighting
  • Optical efficiency: up to 96%

Choose a variant:

Compact Optics 2x2 for SMD W5 Z15 50x50 mm IP00 High Power 3535

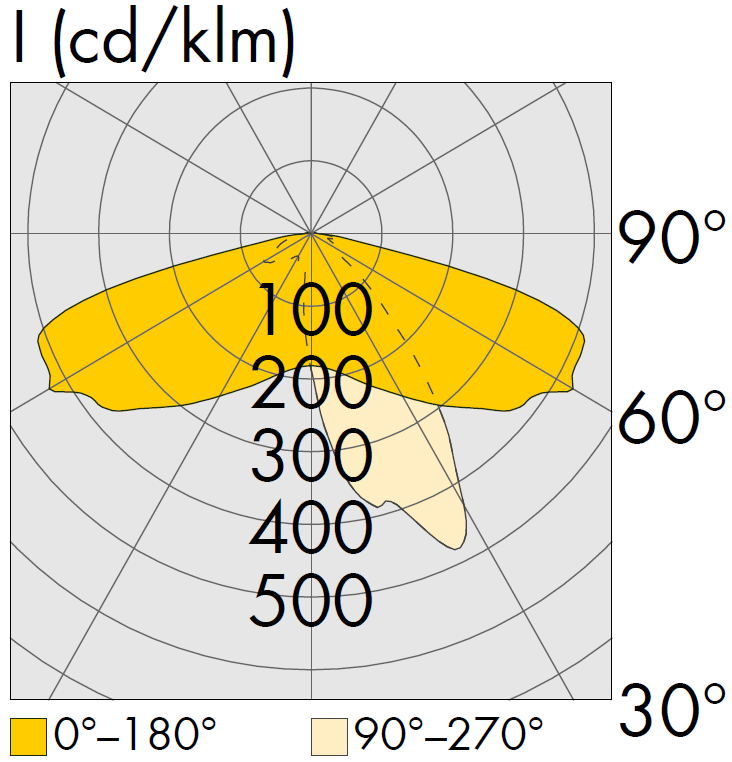

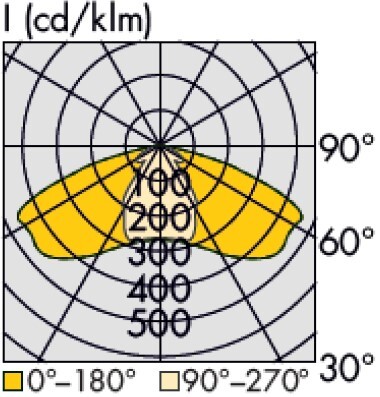

Ref. No. Type Light distribution Light distribution Family data sheet Material Light transmission Surface texture Length Width Height LED technology
571855 95500 T2 PMMA clear high-glossy 50mm 50mm 9.3mm SMD
571856 95501 T3 PMMA clear high-glossy 50mm 50mm 6.4mm SMD
571857 95502 DWC PMMA clear high-glossy 50mm 50mm 9.4mm SMD
571858 95503 ME PMMA clear high-glossy 50mm 50mm 8.9mm SMD
571859 95504 T4 PMMA clear high-glossy 50mm 50mm 9.8mm SMD
571860 95505 SCL PMMA clear high-glossy 50mm 50mm 9.2mm SMD
571861 95506 VSM PMMA clear high-glossy 50mm 50mm 7.5mm SMD
572255 95507 SCL2 PMMA clear high-glossy 50mm 50mm 9mm SMD
Ref. No. Type Light distribution
571855 95500 T2
571856 95501 T3
571857 95502 DWC
571858 95503 ME
571859 95504 T4
571860 95505 SCL
571861 95506 VSM
572255 95507 SCL2
Ref. No. Type Light distribution 2D data 3D data
571855 95500
571856 95501
571857 95502
571858 95503
571859 95504
571860 95505
571861 95506
572255 95507
Ref. No. Type Light distribution ldt und ies data
571855 95500
571856 95501
571857 95502
571858 95503
571859 95504
571860 95505
571861 95506
572255 95507
Ref. No. Type Light distribution
571855 95500
571856 95501
571857 95502
571858 95503
571859 95504
571860 95505
571861 95506
572255 95507
Ref. No. Type
571855 95500
571856 95501
571857 95502
571858 95503
571859 95504
571860 95505
571861 95506
572255 95507
Ref. No. Type 2D data 3D data
571855 95500
571856 95501
571857 95502
571858 95503
571859 95504
571860 95505
571861 95506
572255 95507

Compact Optics 2x2 for SMD W5 Z15 50x50 mm IP00 High Power 5050

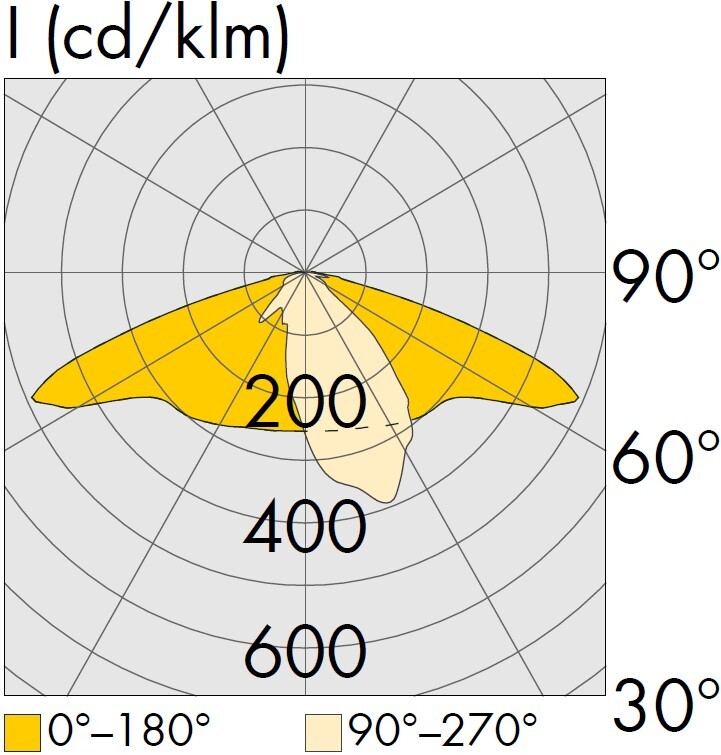

Ref. No. Type Light distribution Light distribution Family data sheet Material Light transmission Surface texture Length Width Height LED technology
569966 5050 M-Class M3M 2x2 lens Zhaga M-Class PMMA clear high-glossy 50mm 50mm 10.6mm SMD
569967 5050 P-Class P2M 2x2 lens Zhaga P-Class PMMA clear high-glossy 50mm 50mm 9.8mm SMD
569968 5050 Area A5 2x2 lens Zhaga Area PMMA clear high-glossy 50mm 50mm 5.85mm SMD
570137 5050 M5 2x2 lens Zhaga M-Class PMMA clear high-glossy 50mm 50mm 10.2mm SMD
573165 95509 FA60 PMMA clear high-glossy 50mm 50mm 12.2mm SMD
573243 95520 T2 PMMA clear high-glossy 50mm 50mm 8.8mm SMD
573244 95521 T3 PMMA clear high-glossy 50mm 50mm 8.7mm SMD
573245 95522 DWC PMMA clear high-glossy 50mm 50mm 8.8mm SMD
573246 95524 T4 PMMA clear high-glossy 50mm 50mm 10.5mm SMD
573282 95534 CAT PMMA clear high-glossy 50mm 50mm 7.6mm SMD
573886 95509 FA60 PMMA clear high-glossy 50mm 50mm 12.2mm SMD
Ref. No. Type Light distribution
569966 5050 M-Class M3M 2x2 lens Zhaga M-Class
569967 5050 P-Class P2M 2x2 lens Zhaga P-Class
569968 5050 Area A5 2x2 lens Zhaga Area
570137 5050 M5 2x2 lens Zhaga M-Class
573165 95509 FA60
573243 95520 T2
573244 95521 T3
573245 95522 DWC
573246 95524 T4
573282 95534 CAT
573886 95509 FA60
Ref. No. Type Light distribution
569966 5050 M-Class M3M 2x2 lens Zhaga
569967 5050 P-Class P2M 2x2 lens Zhaga
569968 5050 Area A5 2x2 lens Zhaga
570137 5050 M5 2x2 lens Zhaga
573165 95509
573243 95520
573244 95521
573245 95522
573246 95524
573282 95534
573886 95509
Ref. No. Type
569966 5050 M-Class M3M 2x2 lens Zhaga
569967 5050 P-Class P2M 2x2 lens Zhaga
569968 5050 Area A5 2x2 lens Zhaga
570137 5050 M5 2x2 lens Zhaga
573165 95509
573243 95520
573244 95521
573245 95522
573246 95524
573282 95534
573886 95509
Ref. No. Type 2D data 3D data
569966 5050 M-Class M3M 2x2 lens Zhaga
569967 5050 P-Class P2M 2x2 lens Zhaga
569968 5050 Area A5 2x2 lens Zhaga
570137 5050 M5 2x2 lens Zhaga
573165 95509
573243 95520
573244 95521
573245 95522
573246 95524
573282 95534
573886 95509
