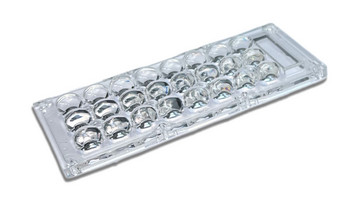

Compact Optics 3x8 for SMD W4.5 Z19

Compact Optics 3x8 for SMD W4.5

The new compact optics 3x8 for the LED 5050 are suitable for use in industrial lighting applications where high efficiency combined with high luminous flux is needed. Due to their compact design and light distributions, the IP67 protection rating, combined with suitability for luminaires with impact resistance IK08/5J, ensures optimum protection against the ingress of dirt, dust and water, in such enviroments and allows front glass to be dispensed with.

Product benefits

  • High temperature resistance
  • Protection class (incl. gasket) IP67
  • Suitable for luminaires with impact resistance IK08/5.0
  • UV-resistance

Choose a variant:

Compact Optics 3x8 for SMD W4.5 Z19 173x71 mm IP67 High Power 5050

Ref. No. Type Light distribution Light distribution Family data sheet Material Light transmission Surface texture Length Width Height LED technology
573475 95810 Medium 60° PC clear high-glossy 173mm 71.4mm 9.4mm SMD
573476 95811 Wide 90° PC clear high-glossy 173mm 71.4mm 7.9mm SMD
573477 95812 High Rack PC clear high-glossy 173mm 71.4mm 12.3mm SMD
Ref. No. Type Light distribution
573475 95810 Medium 60°
573476 95811 Wide 90°
573477 95812 High Rack
Ref. No. Type Light distribution 2D data 3D data
573475 95810
573476 95811
573477 95812
Ref. No. Type Light distribution
573475 95810
573476 95811
573477 95812
Ref. No. Type
573475 95810
573476 95811
573477 95812
Ref. No. Type 2D data 3D data
573475 95810
573476 95811
573477 95812
