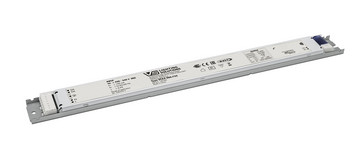

PrimeLine NFC L-F11 DALI2
For installation in linear luminaires
Designed for intelligent lighting applications in office, retail, and residential environments. with only 11 mm height, it offers new possibilities for integration into luminaires where space is limited. This mechanical advantage comes together with a strong electrical specification, including DALI2 compatibility and a wide range of configuration options. Additionally, the driver comes with NFC functionality, which makes configuration fast, flexible, and easy to handle.
Product benefits
- Adjustable output current, CLO, DC level via NFC
- Dimmable: DALI (Ed. 2) and PUSH key
- Memory Data (DALI Parts 251, 252, 253)
- Product guarantee: 5 years
- Selectable output current via NFC
- Long service life: up to 100.000 hrs.
Choose a variant:
PrimeLine NFC L-F11 DALI2
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary - secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187569 | ECXd 400.732 | 35 W | no Isolation | 360 mm | 30 mm | 11 mm | 190 g | |
| 187570 | ECXd 700.733 | 75 W | no Isolation | 360 mm | 30 mm | 11 mm | 195 g |
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|---|
| 187569 | ECXd 400.732 | 35 W |
