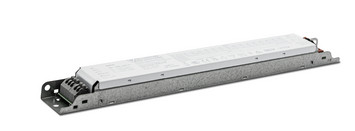

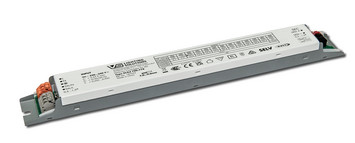

ComfortLine DIP Switch L-LV DALI2
For installation in Linear luminaires
Linear LED drivers with DALI-2 dimming interface and selectable output current via DIP switch. Designed for office, retail and industrial applications, these drivers support DC emergency operation, PUSH dimming, and Corridor Function. Compatible with DALI parts 251, 252, and 253 for extended control capabilities.
Product benefits
- Dimmable: DALI (Ed. 2) and PUSH key
- Memory Data (DALI Parts 251, 252, 253)
- Product guarantee: 5 years
- SELV
- Selectable output current via DIP switch
- Very low ripple: < 2%
- Long service life: up to 100.000 hrs.
Choose a variant:
ComfortLine DIP Switch L-LV DALI2
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary - secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187653 | ECXd 700.778 | 35 W | SELV | 280 mm | 30 mm | 21 mm | 181.7 g | |
| 187654 | ECXd 1050.779 | 50 W | SELV | 280 mm | 30 mm | 21 mm | 190.8 g | |
| 187655 | ECXd 1800.780 | 76 W | SELV | 280 mm | 30 mm | 21 mm | 221.1 g |
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|---|
| 187653 | ECXd 700.778 | 35 W |
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
|
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
50 V
|
2 % | < 0.4 |
|
-5 % | 5 % | |
| 187654 | ECXd 1050.779 | 50 W |
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
|
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
51 V
50 V
47 V
|
1 % | < 0.4 |
|
-5 % | 5 % | |
| 187655 | ECXd 1800.780 | 76 W |
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
15 V
|
51 V
51 V
51 V
51 V
51 V
50 V
50 V
50 V
50 V
49 V
48 V
47 V
45 V
44 V
43 V
42 V
|
1 % | < 0.4 |
|
-5 % | 5 % |
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187653 | ECXd 700.778 | 35 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 173 mA | 0.95 | 0.905 | 4 % | ≤ 0.3 W | ≤ 0.3 W | ≤ 0.3 W | 7.3 A | 40 µs | 692 ms |
| 187654 | ECXd 1050.779 | 50 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 252 mA | 0.95 | 0.91 | 3 % | ≤ 0.3 W | ≤ 0.3 W | ≤ 0.3 W | 12 A | 40 µs | 644 ms |
| 187655 | ECXd 1800.780 | 76 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 357 mA | 0.95 | 0.915 | 3 % | ≤ 0.3 W | ≤ 0.3 W | ≤ 0.3 W | 14 A | 32 µs | 664 ms |
| Ref. No. | Type | Max. output power at AC operation | Min. input voltage DC | Max. input voltage DC | Input current at max. V DC with max. load | Switching time AC - DC | Switching time DC - AC | Time to light on in DC operation |
|---|---|---|---|---|---|---|---|---|
| 187653 | ECXd 700.778 | 35 W | 176 V | 280 V | 138 mA | 9 µs | 13 µs | 684 ms |
| 187654 | ECXd 1050.779 | 50 W | 176 V | 280 V | 199 mA | 13 µs | 16 µs | 624 ms |
| 187655 | ECXd 1800.780 | 76 W | 176 V | 280 V | 54 mA | 256 µs | 18 µs | 658 ms |
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Light control / dimming | DALI power supply integrated | Min. dimming level | Max. dimming level |
|---|---|---|---|---|---|---|---|
| 187653 | ECXd 700.778 | 35 W | Yes |
|
No | 1 % | 100 % |
| 187654 | ECXd 1050.779 | 50 W | Yes |
|
No | 1 % | 100 % |
| 187655 | ECXd 1800.780 | 76 W | Yes |
|
No | 1 % | 100 % |
| Ref. No. | Type | Max. output power at AC operation | Isolation primary - secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187653 | ECXd 700.778 | 35 W | SELV | 59 V | 1 kV | 2 kV | 0.196 mA |
| 187654 | ECXd 1050.779 | 50 W | SELV | 59 V | 1 kV | 2 kV | 0.172 mA |
| 187655 | ECXd 1800.780 | 76 W | SELV | 59 V | 1 kV | 2 kV | 0.324 mA |
| Ref. No. | Type | Max. output power at AC operation | EU Declaration of Conformity | CB certificate | ENEC certificate |
|---|---|---|---|---|---|
| 187653 | ECXd 700.778 | 35 W | |||
| 187654 | ECXd 1050.779 | 50 W | |||
| 187655 | ECXd 1800.780 | 76 W |
| Ref. No. | Type | Max. output power at AC operation | 2D data | 3D data |
|---|---|---|---|---|
| 187653 | ECXd 700.778 | 35 W | ||
| 187654 | ECXd 1050.779 | 50 W | ||
| 187655 | ECXd 1800.780 | 76 W |
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187653 | ECXd 700.778 | 35 W |
| 187654 | ECXd 1050.779 | 50 W |
| 187655 | ECXd 1800.780 | 76 W |
| Ref. No. | Type | ||
|---|---|---|---|
| 187653 | ECXd 700.778 | ||
| 187654 | ECXd 1050.779 | ||
| 187655 | ECXd 1800.780 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 187653 | ECXd 700.778 |
|
|
| 187654 | ECXd 1050.779 |
|
|
| 187655 | ECXd 1800.780 |
|
