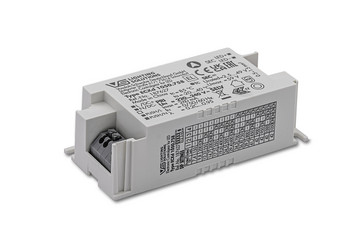

Blu2Light PrimeLine DIP switch C Casambi
For installation in compact luminaires or independent operation in the suspended ceiling
Compact dimmable LED driver with integrated DIP switch interface for individual adjustment of the output current. The LED driver has a Blu2Light Casambi interface for flexible, wireless lighting control. The housing design of the LED driver offers the option of installing cord grips for independent operation.
Product benefits
- Dimmable: Blu2Light
- Low power consumption in standby: < 0.5W
- Operating window for max. flexibility
- Product guarantee: 5 years
- SELV
- Selectable output current via DIP switch
- Suitable for emergency escape lighting systems acc. to EN 50172
- Through-wiring
- Long service life: up to 100.000 hrs.
Choose a variant:
Blu2Light PrimeLine DIP switch C Casambi
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary - secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187627 | ECXd 1050.758 | 42 W | SELV | 97 mm | 43 mm | 30 mm | 109.7 g |
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|---|
| 187627 | ECXd 1050.758 | 42 W |
3 V
3 V
3 V
3 V
3 V
3 V
3 V
3 V
3 V
3 V
3 V
3 V
3 V
3 V
3 V
3 V
|
49 V
49 V
49 V
49 V
49 V
49 V
49 V
49 V
49 V
49 V
49 V
49 V
47 V
44 V
42 V
40 V
|
1 % | < 0.4 |
|
-5 % | 5 % |
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187627 | ECXd 1050.758 | 42 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 205 mA | 0.95 | 0.915 | 5 % | ≤ 0.35 W | ≤ 0.3 W | 9.4 A | 32 µs |
| Ref. No. | Type | Max. output power at AC operation | Min. input voltage DC | Max. input voltage DC | Input current at max. V DC with max. load | Switching time AC - DC | Switching time DC - AC | Time to light on in DC operation |
|---|---|---|---|---|---|---|---|---|
| 187627 | ECXd 1050.758 | 42 W | 176 V | 280 V | 164 mA | 125 µs | 136 µs | 235 ms |
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Light control / dimming | DALI power supply integrated | DALI power supply switchable | Min. dimming level | Max. dimming level |
|---|---|---|---|---|---|---|---|---|
| 187627 | ECXd 1050.758 | 42 W | Yes |
|
No | No | 1 % | 100 % |
| Ref. No. | Type | Max. output power at AC operation | Isolation primary - secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE |
|---|---|---|---|---|---|---|
| 187627 | ECXd 1050.758 | 42 W | SELV | 59 V | 1 kV | 2 kV |
| Ref. No. | Type | Max. output power at AC operation | EU Declaration of Conformity | CB certificate | ENEC certificate |
|---|---|---|---|---|---|
| 187627 | ECXd 1050.758 | 42 W |
| Ref. No. | Type | Max. output power at AC operation | 2D data | 3D data |
|---|---|---|---|---|
| 187627 | ECXd 1050.758 | 42 W |
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187627 | ECXd 1050.758 | 42 W |
| Ref. No. | Type | ||
|---|---|---|---|
| 187627 | ECXd 1050.758 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 187627 | ECXd 1050.758 |
|
