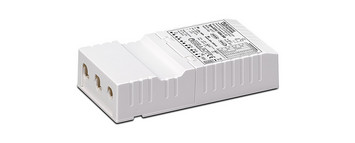

PrimeLine DIP switch C-R3 loop DALI2


For recessed or independent operation of compact luminaires

Compact LED drivers with integrated DIP switch interface, DALI2 interface and through-wiring for individual setting of the output current.

Product benefits

  • Dimmable: DALI (Ed. 2)
  • SELV
  • Selectable output current via DIP switch
  • Through-wiring
  • Very low ripple: < 3%
  • Long service life: up to 100.000 hrs.




Choose a variant:

PrimeLine DIP switch C-R3 loop DALI2

Ref. No. Type Max. output power at AC operation Family data sheet Isolation primary - secondary Length Width Height Weight
187217 ECXd 1050.560           40 W SELV 141.6 mm 79 mm 30 mm 171 g
187218 ECXd 1400.561           52 W SELV 141.6 mm 79 mm 30 mm 188 g
Ref. No. Type Max. output power at AC operation Output current Min. output voltage Max. output voltage Output ripple (100 Hz) Current setting / Configuration Output current tolerance – Output current tolerance +
187217 ECXd 1050.560           40 W
10 V 10 V 10 V 10 V 10 V 10 V 10 V 10 V 10 V 10 V 10 V 10 V 10 V 10 V 10 V 10 V
54 V 54 V 54 V 54 V 54 V 54 V 54 V 54 V 54 V 54 V 50 V 47 V 45 V 42 V 40 V 38 V
3 %
  • DALI
  • DIP switch
-5 % 5 %
187218 ECXd 1400.561           52 W
10 V 10 V 10 V 10 V 10 V 10 V 10 V 8 V 8 V 8 V 8 V 8 V 8 V 8 V 8 V 8 V
42 V 42 V 41 V 41 V 41 V 40 V 40 V 40 V 40 V 39 V 39 V 39 V 38 V 38 V 38 V 38 V
3 %
  • DALI
  • DIP switch
-5 % 5 %
Ref. No. Type Max. output power at AC operation Min. voltage Max. voltage Min. input voltage AC Max. input voltage AC Min. mains frequency Max. mains frequency Input current at 230 V AC with max. load Power factor at full load (230 V) Efficiency at full load (230 V) THD at full load (230 V) Standby power No-load standby power Networked standby power Inrush current Inrush current time at 50% Ipeak Time to light on in AC operation
187217 ECXd 1050.560           40 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 196 mA 0.95 0.87 10 % no standby operation possible no load operation not intended ≤ 0.5 W 5 A 50 µs 700 ms
187218 ECXd 1400.561           52 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 256 mA 0.95 0.9 15 % no standby operation possible no load operation not intended ≤ 0.5 W 5 A 50 µs 700 ms
Ref. No. Type Max. output power at AC operation Min. input voltage DC Max. input voltage DC Input current at max. V DC with max. load Time to light on in DC operation
187217 ECXd 1050.560           40 W 176 V 275 V 170 mA 700 ms
187218 ECXd 1400.561           52 W 176 V 275 V 220 mA 700 ms
Ref. No. Type Max. output power at AC operation Dimmable Light control / dimming DALI power supply integrated Min. dimming level Max. dimming level
187217 ECXd 1050.560           40 W Yes
  • Dimming interface DALI
  • PUSH
No 0 % 100 %
187218 ECXd 1400.561           52 W Yes
  • Dimming interface DALI
  • PUSH
No 0 % 100 %
Ref. No. Type Max. output power at AC operation Isolation primary - secondary Max. working voltage (Uout) Open circuit voltage (Umax.) Protection against transient main peaks L–N Protection against transient main peaks L/N–PE Leakage current over PE
187217 ECXd 1050.560           40 W SELV 59 V 59 V 2 kV 4 kV 0.1 mA
187218 ECXd 1400.561           52 W SELV 59 V 59 V 2 kV 4 kV 0.1 mA
Ref. No. Type Max. output power at AC operation EU Declaration of Conformity CB certificate ENEC certificate
187217 ECXd 1050.560           40 W
187218 ECXd 1400.561           52 W
Ref. No. Type Max. output power at AC operation 2D data 3D data
187217 ECXd 1050.560           40 W
187218 ECXd 1400.561           52 W
Ref. No. Type Max. output power at AC operation
187217 ECXd 1050.560           40 W
187218 ECXd 1400.561           52 W
Ref. No. Type
187217 ECXd 1050.560
187218 ECXd 1400.561
Ref. No. Type 2D data 3D data
187217 ECXd 1050.560
187218 ECXd 1400.561
