Linear Optics 1R for SMD W4


Linear 1-row optics for LED Line SMD W4 modules

The optics made of high-quality PMMA offer a variety of usage in application fields of office, retail, corridor and shelf lighting due to different light distributions, which are available in a length of 280 mm. Additionally, some types are also available in a lenght of 560 mm. To create longer module chains several optics can be stringed together.

Product benefits

  • Glareless and excellent lens design
  • UV-resistance
  • Variants with UGR optimized light distributions available
  • Variants with end caps available, for luminaire protection class IP40
  • Zhaga-compliant dimensions
  • Optical efficiency: up to 95%

Choose a variant:

Linear Optics 1R for SMD W4 60 Single Lenses 560 mm IP20/40

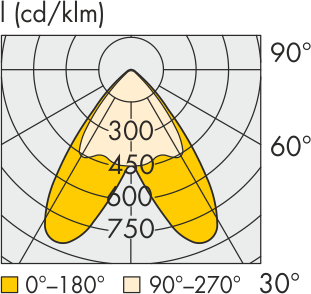

Ref. No. Type Light distribution Light distribution Family data sheet Material Light transmission Surface texture Length Width Height LED technology
562984 98850 Standard PMMA clear mat 560mm 43mm 9.5mm SMD
562985 98850 Diffuse 100° PMMA diffuse mat 560mm 43mm 9.5mm SMD
563524 98851 Retail SYM 1 PMMA clear microstructure 560mm 43mm 9.5mm SMD
Ref. No. Type Light distribution
562984 98850 Standard
562985 98850 Diffuse 100°
563524 98851 Retail SYM 1
Ref. No. Type Light distribution 2D data 3D data
562984 98850
562985 98850
563524 98851
Ref. No. Type Light distribution
562984 98850
562985 98850
563524 98851
Ref. No. Type
562984 98850
562985 98850
563524 98851
Ref. No. Type 2D data 3D data
562984 98850
562985 98850
563524 98851

Linear Optics 1R for SMD W4 30 Single Lenses 280 mm IP20/40

Ref. No. Type Light distribution Light distribution Family data sheet Material Light transmission Surface texture Length Width Height LED technology
555437 98810 Standard PMMA clear mat 280mm 43mm 9.5mm SMD
555438 98811 Retail SYM 1 PMMA clear microstructure 280mm 43mm 9.5mm SMD
555439 98812 Retail ASYM PMMA clear microstructure 280mm 43mm 9.5mm SMD
560570 98813 Wide 90° PMMA clear microstructure 280mm 43mm 9.5mm SMD
560571 98814 Narrow 30° PMMA clear microstructure 280mm 43mm 9.5mm SMD
560573 98816 Medium 60° PMMA clear microstructure 280mm 43mm 9.5mm SMD
559972 98810 Diffuse 100° PMMA diffuse mat 280mm 43mm 9.5mm SMD
563598 98817 High Rack PMMA clear microstructure 280mm 43mm 9.5mm SMD
Ref. No. Type Light distribution
555437 98810 Standard
555438 98811 Retail SYM 1
555439 98812 Retail ASYM
560570 98813 Wide 90°
560571 98814 Narrow 30°
560573 98816 Medium 60°
559972 98810 Diffuse 100°
563598 98817 High Rack
Ref. No. Type Light distribution ldt und ies data
555437 98810
555438 98811
555439 98812
560570 98813
560571 98814
560573 98816
559972 98810
563598 98817
Ref. No. Type Light distribution
555437 98810
555438 98811
555439 98812
560570 98813
560571 98814
560573 98816
559972 98810
563598 98817
Ref. No. Type
555437 98810
555438 98811
555439 98812
560570 98813
560571 98814
560573 98816
559972 98810
563598 98817
Ref. No. Type 2D data 3D data
555437 98810
555438 98811
555439 98812
560570 98813
560571 98814
560573 98816
559972 98810
563598 98817
