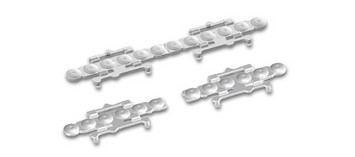

Linear Optics 1R for SMD W2 Backlight
Linear Optics 1R For SMD W2 Backlight
Primary optics with wide batwing light distribution that creates homogeneous luminance in flat luminaires with front diffusers and microprismatics.
Product benefits
- Constant Light Colour (CLC)
- Glareless and excellent lens design
- Screwless clip fixation
- Optical efficiency: up to 96%
Choose a variant:
Linear Optics 1R for SMD W2 Backlight 140 mm
| Ref. No. | Type | Light distribution | Light distribution | Family data sheet | Material | Light transmission | Surface texture | Length | Width | Height | LED technology |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 573989 | 98760 |
|

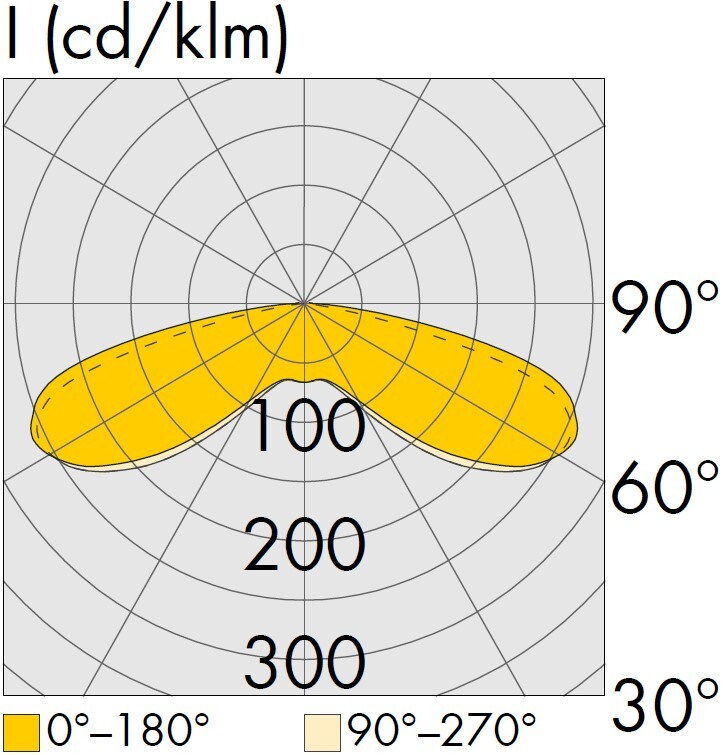

Batwing 140° | PMMA | clear | high-glossy | 140mm | 32mm | 4mm | SMD |
| Ref. No. | Type | Light distribution |
|---|---|---|
| 573989 | 98760 | Batwing 140° |
| Ref. No. | Type | Light distribution | 2D data | 3D data |
|---|---|---|---|---|
| 573989 | 98760 |
|
| Ref. No. | Type | Light distribution | ldt und ies data |
|---|---|---|---|
| 573989 | 98760 |
|
| Ref. No. | Type | Light distribution |
|---|---|---|
| 573989 | 98760 |
|
| Ref. No. | Type | ||
|---|---|---|---|
| 573989 | 98760 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 573989 | 98760 |
|
