Blu2Light PrimeLine DIP switch UIT-325
Intrack Adapter Pro, for complete integration of the LED driver into the track

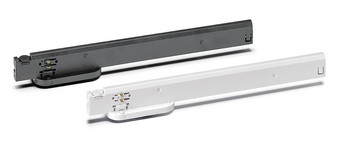

Adapter with integrated LED driver electronics for conventional 3-phase track systems. Selectable output current via DIP switch and Blu2Light. Available in two different casing colours: white and black.
Product benefits
- Complete integration of the LED driver into the track rail
- DIMMABLE: BLUETOOTH BLU2LIGHT
- SELECTABLE OUTPUT CURRENT VIA DIP SWITCH
- EXTRA LOW RIPPLE CURRENT: < 1%
- COMPATIBLE WITH VARIOUS 3-PHASE POWER TRACKS
- SELV
Choose a variant:
Blu2Light PrimeLine DIP switch UIT-325
| Ref. No. | Type | Family data sheet | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 186973 | ECXd 700.406 | 325 mm | 34 mm | 36.6 mm | 126 g | |
| 186974 | ECXd 700.406 | 325 mm | 34 mm | 36.6 mm | 126 g |
| Ref. No. | Type | Min. voltage | Max. voltage | Min. mains frequency | Max. mains frequency |
|---|---|---|---|---|---|
| 186973 | ECXd 700.406 | 220 V | 240 V | 50 Hz | 60 Hz |
| 186974 | ECXd 700.406 | 220 V | 240 V | 50 Hz | 60 Hz |
| Ref. No. | Type |
|---|---|
| 186973 | ECXd 700.406 |
| 186974 | ECXd 700.406 |
| Ref. No. | Type | Isolation primary - secondary | Protection against transient main peaks L–N |
|---|---|---|---|
| 186973 | ECXd 700.406 | SELV | 4 kV |
| 186974 | ECXd 700.406 | SELV | 4 kV |
| Ref. No. | Type | EU Declaration of Conformity | CB certificate | ENEC certificate |
|---|---|---|---|---|
| 186973 | ECXd 700.406 | |||
| 186974 | ECXd 700.406 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 186973 | ECXd 700.406 | ||
| 186974 | ECXd 700.406 |
| Ref. No. | Type | Mounting instruction |
|---|---|---|
| 186973 | ECXd 700.406 | |
| 186974 | ECXd 700.406 |
| Ref. No. | Type | ||
|---|---|---|---|
| 186973 | ECXd 700.406 | ||
| 186974 | ECXd 700.406 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 186973 | ECXd 700.406 |
|
|
| 186974 | ECXd 700.406 |
|
