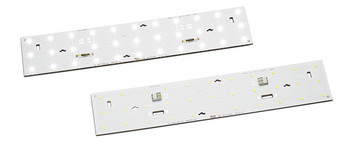

LED Line SMD W5.5 Gen. 4

LED modules for linear lighting applications

LED built-in module for integration into luminaires with on-board push terminal system.

Product benefits

Available in different lengths
Various attachment optics available

Efficiency: up to 204 lm/W

Long service life: up to 50.000 hrs.

Find system solution!

LED Line W5.5 3R Gen. 4, 280 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
569503	WU-M-526-S2-TC-830	33 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	280 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
569504	WU-M-526-S2-TC-840	33 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	280 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
569505	WU-M-526-S2-TC-850	33 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
569506	WU-M-526-S2-TC-865	33 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	6500 K	120°
569507	WU-M-526-S2-BC-830	33 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	280 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
569508	WU-M-526-S2-BC-840	33 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	280 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
569509	WU-M-526-S2-BC-850	33 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	280 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
569510	WU-M-526-S2-BC-865	33 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	280 mm	55 mm	6.4 mm	SMD	cool white	6500 K	120°
570152	WU-M-526-S2-BC-835	33 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	280 mm	55 mm	6.4 mm	SMD	warm white	3500 K	120°
573101	WU-M-526-S2-BC-835	33 pcs.		280 mm	55 mm	6.4 mm	SMD	warm white	3500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
569503	WU-M-526-S2-TC-830	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W
569504	WU-M-526-S2-TC-840	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W
569505	WU-M-526-S2-TC-850	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W
569506	WU-M-526-S2-TC-865	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W
569507	WU-M-526-S2-BC-830	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W
569508	WU-M-526-S2-BC-840	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W
569509	WU-M-526-S2-BC-850	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W
569510	WU-M-526-S2-BC-865	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W
570152	WU-M-526-S2-BC-835	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W
573101	WU-M-526-S2-BC-835	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 31 V 32 V 33.2 V	4.4 W 6 W 10.8 W 16 W 23.3 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
569503	WU-M-526-S2-TC-830	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	845 lm 1110 lm 1890 lm 2640 lm 3595 lm	191 lm/W 186 lm/W 174 lm/W 165 lm/W 155 lm/W	80 80 80 80 80
569504	WU-M-526-S2-TC-840	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	900 lm 1185 lm 2010 lm 2815 lm 3830 lm	204 lm/W 198 lm/W 186 lm/W 176 lm/W 165 lm/W	80 80 80 80 80
569505	WU-M-526-S2-TC-850	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	900 lm 1185 lm 2010 lm 2815 lm 3830 lm	204 lm/W 198 lm/W 186 lm/W 176 lm/W 165 lm/W	80 80 80 80 80
569506	WU-M-526-S2-TC-865	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	835 lm 1100 lm 1870 lm 2615 lm 3560 lm	189 lm/W 184 lm/W 173 lm/W 163 lm/W 153 lm/W	80 80 80 80 80
569507	WU-M-526-S2-BC-830	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	845 lm 1110 lm 1890 lm 2640 lm 3595 lm	191 lm/W 186 lm/W 174 lm/W 165 lm/W 155 lm/W	80 80 80 80 80
569508	WU-M-526-S2-BC-840	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	900 lm 1185 lm 2010 lm 2815 lm 3830 lm	204 lm/W 198 lm/W 186 lm/W 176 lm/W 165 lm/W	80 80 80 80 80
569509	WU-M-526-S2-BC-850	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	900 lm 1185 lm 2010 lm 2815 lm 3830 lm	204 lm/W 198 lm/W 186 lm/W 176 lm/W 165 lm/W	80 80 80 80 80
569510	WU-M-526-S2-BC-865	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	835 lm 1100 lm 1870 lm 2615 lm 3560 lm	189 lm/W 184 lm/W 173 lm/W 163 lm/W 153 lm/W	80 80 80 80 80
570152	WU-M-526-S2-BC-835	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	850 lm 1120 lm 1910 lm 2665 lm 3630 lm	193 lm/W 188 lm/W 176 lm/W 167 lm/W 156 lm/W
573101	WU-M-526-S2-BC-835	33 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	850 lm 1120 lm 1910 lm 2665 lm 3630 lm	193 lm/W 188 lm/W 176 lm/W 167 lm/W 156 lm/W

Lifetime

Ref. No.	Type	LED quantity
569503	WU-M-526-S2-TC-830	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	40 °C 50 °C 75 °C 75 °C 40 °C 50 °C 50 °C 75 °C 40 °C 40 °C 50 °C 75 °C 40 °C 50 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569504	WU-M-526-S2-TC-840	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	40 °C 75 °C 50 °C 75 °C 50 °C 40 °C 50 °C 75 °C 40 °C 75 °C 50 °C 40 °C 40 °C 75 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569505	WU-M-526-S2-TC-850	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	75 °C 50 °C 40 °C 40 °C 75 °C 50 °C 75 °C 50 °C 40 °C 50 °C 40 °C 75 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569506	WU-M-526-S2-TC-865	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	50 °C 40 °C 75 °C 40 °C 75 °C 50 °C 40 °C 50 °C 75 °C 40 °C 75 °C 50 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569507	WU-M-526-S2-BC-830	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	50 °C 40 °C 75 °C 75 °C 50 °C 40 °C 75 °C 50 °C 40 °C 50 °C 75 °C 40 °C 40 °C 75 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569508	WU-M-526-S2-BC-840	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	40 °C 50 °C 75 °C 40 °C 50 °C 75 °C 75 °C 50 °C 40 °C 50 °C 40 °C 75 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569509	WU-M-526-S2-BC-850	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	50 °C 40 °C 75 °C 40 °C 50 °C 75 °C 50 °C 75 °C 40 °C 40 °C 50 °C 75 °C 40 °C 75 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569510	WU-M-526-S2-BC-865	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	75 °C 50 °C 40 °C 50 °C 40 °C 75 °C 40 °C 75 °C 50 °C 40 °C 75 °C 50 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
570152	WU-M-526-S2-BC-835	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	75 °C 50 °C 40 °C 50 °C 40 °C 75 °C 40 °C 50 °C 75 °C 75 °C 40 °C 50 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573101	WU-M-526-S2-BC-835	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	75 °C 50 °C 40 °C 50 °C 40 °C 75 °C 40 °C 50 °C 75 °C 75 °C 40 °C 50 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
569503	WU-M-526-S2-TC-830	908110	C
569504	WU-M-526-S2-TC-840	908111	C
569505	WU-M-526-S2-TC-850	908112	C
569506	WU-M-526-S2-TC-865	908113	C
569507	WU-M-526-S2-BC-830	908106	C
569508	WU-M-526-S2-BC-840	908107	C
569509	WU-M-526-S2-BC-850	908108	C
569510	WU-M-526-S2-BC-865	908109	C
570152	WU-M-526-S2-BC-835	1061066	C
573101	WU-M-526-S2-BC-835	1061066	C

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
569503	WU-M-526-S2-TC-830	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569504	WU-M-526-S2-TC-840	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569505	WU-M-526-S2-TC-850	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569506	WU-M-526-S2-TC-865	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569507	WU-M-526-S2-BC-830	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569508	WU-M-526-S2-BC-840	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569509	WU-M-526-S2-BC-850	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569510	WU-M-526-S2-BC-865	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
570152	WU-M-526-S2-BC-835	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
573101	WU-M-526-S2-BC-835	33 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf

Ref. No.	Type	LED quantity	2D data	3D data
569503	WU-M-526-S2-TC-830	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf	3D_WU-M-526-S-TC_with_Optic.zip
569504	WU-M-526-S2-TC-840	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf	3D_WU-M-526-S-TC_with_Optic.zip
569505	WU-M-526-S2-TC-850	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf	3D_WU-M-526-S-TC_with_Optic.zip
569506	WU-M-526-S2-TC-865	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf	3D_WU-M-526-S-TC_with_Optic.zip
569507	WU-M-526-S2-BC-830	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf	3D_WU-M-526-S-BC_with_Optic.zip
569508	WU-M-526-S2-BC-840	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf	3D_WU-M-526-S-BC_with_Optic.zip
569509	WU-M-526-S2-BC-850	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf	3D_WU-M-526-S-BC_with_Optic.zip
569510	WU-M-526-S2-BC-865	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf	3D_WU-M-526-S-BC_with_Optic.zip
570152	WU-M-526-S2-BC-835	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf	3D_WU-M-526-S-BC_with_Optic.zip
573101	WU-M-526-S2-BC-835	33 pcs.	2D_WU-M-526-S2_Catalogue-graphic.pdf

ldt und ies data
LDC_LED_Line_W5-5_Gen4.zip LDC_LED_Line_SMD_W5-5_Gen4_LED_Optiken_3R_for_SMD_PCB_W5-5.zip

Application notes
Thermal_Design_EN.pdf ESD Protection Procedures_EN.pdf Chemical Incompatibility_EN.pdf

Ref. No.	Type
569503	WU-M-526-S2-TC-830
569504	WU-M-526-S2-TC-840
569505	WU-M-526-S2-TC-850
569506	WU-M-526-S2-TC-865
569507	WU-M-526-S2-BC-830
569508	WU-M-526-S2-BC-840
569509	WU-M-526-S2-BC-850
569510	WU-M-526-S2-BC-865
570152	WU-M-526-S2-BC-835
573101	WU-M-526-S2-BC-835

Ref. No.	Type	2D data	3D data
569503	WU-M-526-S2-TC-830	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569504	WU-M-526-S2-TC-840	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569505	WU-M-526-S2-TC-850	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569506	WU-M-526-S2-TC-865	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569507	WU-M-526-S2-BC-830	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569508	WU-M-526-S2-BC-840	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569509	WU-M-526-S2-BC-850	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569510	WU-M-526-S2-BC-865	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
570152	WU-M-526-S2-BC-835	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573101	WU-M-526-S2-BC-835	2D_WU-M-526-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

LED Line W5.5 3R Gen. 4, 566 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
569495	WU-M-536-S2-TC-830	66 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	566 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
569496	WU-M-536-S2-TC-840	66 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	566 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
569497	WU-M-536-S2-TC-850	66 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	566 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
569498	WU-M-536-S2-TC-865	66 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	566 mm	55 mm	6.1 mm	SMD	cool white	6500 K	120°
569499	WU-M-536-S2-BC-830	66 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	566 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
569500	WU-M-536-S2-BC-840	66 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	566 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
569501	WU-M-536-S2-BC-850	66 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	566 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
569502	WU-M-536-S2-BC-865	66 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	566 mm	55 mm	6.4 mm	SMD	cool white	6500 K	120°
570156	WU-M-536-S2-BC-835	66 pcs.	LED-Line-SMD-Kit_3R-GEN-4_EN.pdf	566 mm	55 mm	6.4 mm	SMD	neutral white	3500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
569495	WU-M-536-S2-TC-830	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	58.9 V 59.7 V 61.9 V 64 V 66.4 V	8.8 W 11.9 W 21.7 W 32 W 46.5 W
569496	WU-M-536-S2-TC-840	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	58.9 V 59.7 V 61.9 V 64 V 66.4 V	8.8 W 11.9 W 21.7 W 32 W 46.5 W
569497	WU-M-536-S2-TC-850	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	58.9 V 59.7 V 61.9 V 64 V 66.4 V	8.8 W 11.9 W 21.7 W 32 W 46.5 W
569498	WU-M-536-S2-TC-865	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	58.9 V 59.7 V 61.9 V 64 V 66.4 V	8.8 W 11.9 W 21.7 W 32 W 46.5 W
569499	WU-M-536-S2-BC-830	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	58.9 V 59.7 V 61.9 V 64 V 66.4 V	8.8 W 11.9 W 21.7 W 32 W 46.5 W
569500	WU-M-536-S2-BC-840	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	58.9 V 59.7 V 61.9 V 64 V 66.4 V	8.8 W 11.9 W 21.7 W 32 W 46.5 W
569501	WU-M-536-S2-BC-850	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	58.9 V 59.7 V 61.9 V 64 V 66.4 V	8.8 W 11.9 W 21.7 W 32 W 46.5 W
569502	WU-M-536-S2-BC-865	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	58.9 V 59.7 V 61.9 V 64 V 66.4 V	8.8 W 11.9 W 21.7 W 32 W 46.5 W
570156	WU-M-536-S2-BC-835	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	58.9 V 59.7 V 61.9 V 64 V 66.4 V	8.8 W 11.9 W 21.7 W 32 W 46.5 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
569495	WU-M-536-S2-TC-830	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	1690 lm 2225 lm 3780 lm 5280 lm 7195 lm	191 lm/W 186 lm/W 174 lm/W 165 lm/W 155 lm/W	80 80 80 80 80
569496	WU-M-536-S2-TC-840	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	1800 lm 2365 lm 4025 lm 5625 lm 7660 lm	204 lm/W 198 lm/W 186 lm/W 176 lm/W 165 lm/W	80 80 80 80 80
569497	WU-M-536-S2-TC-850	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	1800 lm 2365 lm 4025 lm 5625 lm 7660 lm	204 lm/W 198 lm/W 186 lm/W 176 lm/W 165 lm/W	80 80 80 80 80
569498	WU-M-536-S2-TC-865	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	1670 lm 2200 lm 3740 lm 5225 lm 7120 lm	189 lm/W 184 lm/W 173 lm/W 163 lm/W 153 lm/W	80 80 80 80 80
569499	WU-M-536-S2-BC-830	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	1690 lm 2225 lm 3780 lm 5280 lm 7195 lm	191 lm/W 186 lm/W 174 lm/W 165 lm/W 155 lm/W	80 80 80 80 80
569500	WU-M-536-S2-BC-840	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	1800 lm 2365 lm 4025 lm 5625 lm 7660 lm	204 lm/W 198 lm/W 186 lm/W 176 lm/W 165 lm/W	80 80 80 80 80
569501	WU-M-536-S2-BC-850	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	1800 lm 2365 lm 4025 lm 5625 lm 7660 lm	204 lm/W 198 lm/W 186 lm/W 176 lm/W 165 lm/W	80 80 80 80 80
569502	WU-M-536-S2-BC-865	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	1670 lm 2200 lm 3740 lm 5225 lm 7120 lm	189 lm/W 184 lm/W 173 lm/W 163 lm/W 153 lm/W	80 80 80 80 80
570156	WU-M-536-S2-BC-835	66 pcs.	150 mA 200 mA 350 mA 500 mA 700 mA	1705 lm 2245 lm 3815 lm 5335 lm 7265 lm	193 lm/W 188 lm/W 176 lm/W 167 lm/W 156 lm/W	80 80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
569495	WU-M-536-S2-TC-830	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	40 °C 50 °C 75 °C 50 °C 40 °C 75 °C 40 °C 75 °C 50 °C 50 °C 40 °C 75 °C 40 °C 75 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569496	WU-M-536-S2-TC-840	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	75 °C 40 °C 50 °C 40 °C 50 °C 75 °C 50 °C 40 °C 75 °C 50 °C 75 °C 40 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569497	WU-M-536-S2-TC-850	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	50 °C 40 °C 75 °C 75 °C 50 °C 40 °C 40 °C 50 °C 75 °C 75 °C 40 °C 50 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569498	WU-M-536-S2-TC-865	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	40 °C 50 °C 75 °C 50 °C 40 °C 75 °C 50 °C 75 °C 40 °C 50 °C 40 °C 75 °C 75 °C 50 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569499	WU-M-536-S2-BC-830	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	50 °C 40 °C 75 °C 75 °C 40 °C 50 °C 75 °C 40 °C 50 °C 40 °C 75 °C 50 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569500	WU-M-536-S2-BC-840	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	40 °C 50 °C 75 °C 50 °C 75 °C 40 °C 75 °C 40 °C 50 °C 75 °C 50 °C 40 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569501	WU-M-536-S2-BC-850	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	75 °C 50 °C 40 °C 75 °C 40 °C 50 °C 75 °C 50 °C 40 °C 75 °C 50 °C 40 °C 40 °C 75 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569502	WU-M-536-S2-BC-865	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	40 °C 50 °C 75 °C 50 °C 75 °C 40 °C 50 °C 40 °C 75 °C 40 °C 75 °C 50 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
570156	WU-M-536-S2-BC-835	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 350 mA 500 mA 700 mA	50 °C 75 °C 40 °C 50 °C 75 °C 40 °C 75 °C 40 °C 50 °C 50 °C 40 °C 75 °C 40 °C 75 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
569495	WU-M-536-S2-TC-830	908118	C
569496	WU-M-536-S2-TC-840	908119	C
569497	WU-M-536-S2-TC-850	908121	C
569498	WU-M-536-S2-TC-865	908123	D
569499	WU-M-536-S2-BC-830	908114	C
569500	WU-M-536-S2-BC-840	908115	C
569501	WU-M-536-S2-BC-850	908116	C
569502	WU-M-536-S2-BC-865	908117	D
570156	WU-M-536-S2-BC-835	943335	C

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
569495	WU-M-536-S2-TC-830	66 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569496	WU-M-536-S2-TC-840	66 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569497	WU-M-536-S2-TC-850	66 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569498	WU-M-536-S2-TC-865	66 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569499	WU-M-536-S2-BC-830	66 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569500	WU-M-536-S2-BC-840	66 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569501	WU-M-536-S2-BC-850	66 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569502	WU-M-536-S2-BC-865	66 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
570156	WU-M-536-S2-BC-835	66 pcs.	Module LED Line SMD W5.5 Gen.4 (WU-M-526-S2-xC-yzz and WU-M-536-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf

Ref. No.	Type	LED quantity	2D data	3D data
569495	WU-M-536-S2-TC-830	66 pcs.	2D_WU-M-536-S2_Catalogue-graphic.pdf	3D_WU-M-536-S-TC_with_Optic.zip
569496	WU-M-536-S2-TC-840	66 pcs.	2D_WU-M-536-S2_Catalogue-graphic.pdf	3D_WU-M-536-S-TC_with_Optic.zip
569497	WU-M-536-S2-TC-850	66 pcs.	2D_WU-M-536-S2_Catalogue-graphic.pdf	3D_WU-M-536-S-TC_with_Optic.zip
569498	WU-M-536-S2-TC-865	66 pcs.	2D_WU-M-536-S2_Catalogue-graphic.pdf	3D_WU-M-536-S-TC_with_Optic.zip
569499	WU-M-536-S2-BC-830	66 pcs.	2D_WU-M-536-S2_Catalogue-graphic.pdf	3D_WU-M-536-S-BC_with_Optic.zip
569500	WU-M-536-S2-BC-840	66 pcs.	2D_WU-M-536-S2_Catalogue-graphic.pdf	3D_WU-M-536-S-BC_with_Optic.zip
569501	WU-M-536-S2-BC-850	66 pcs.	2D_WU-M-536-S2_Catalogue-graphic.pdf	3D_WU-M-536-S-BC_with_Optic.zip
569502	WU-M-536-S2-BC-865	66 pcs.	2D_WU-M-536-S2_Catalogue-graphic.pdf	3D_WU-M-536-S-BC_with_Optic.zip
570156	WU-M-536-S2-BC-835	66 pcs.	2D_WU-M-536-S2_Catalogue-graphic.pdf	3D_WU-M-536-S-BC_with_Optic.zip

ldt und ies data
LDC_LED_Line_W5-5_Gen4.zip LDC_LED_Line_SMD_W5-5_Gen4_LED_Optiken_3R_for_SMD_PCB_W5-5.zip

Application notes
Thermal_Design_EN.pdf ESD Protection Procedures_EN.pdf Chemical Incompatibility_EN.pdf

Ref. No.	Type
569495	WU-M-536-S2-TC-830
569496	WU-M-536-S2-TC-840
569497	WU-M-536-S2-TC-850
569498	WU-M-536-S2-TC-865
569499	WU-M-536-S2-BC-830
569500	WU-M-536-S2-BC-840
569501	WU-M-536-S2-BC-850
569502	WU-M-536-S2-BC-865
570156	WU-M-536-S2-BC-835

Ref. No.	Type	2D data	3D data
569495	WU-M-536-S2-TC-830	2D_WU-M-536-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569496	WU-M-536-S2-TC-840	2D_WU-M-536-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569497	WU-M-536-S2-TC-850	2D_WU-M-536-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569498	WU-M-536-S2-TC-865	2D_WU-M-536-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569499	WU-M-536-S2-BC-830	2D_WU-M-536-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569500	WU-M-536-S2-BC-840	2D_WU-M-536-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569501	WU-M-536-S2-BC-850	2D_WU-M-536-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
569502	WU-M-536-S2-BC-865	2D_WU-M-536-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
570156	WU-M-536-S2-BC-835	2D_WU-M-536-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Contact

LED Line SMD W5.5 Gen. 4

LED modules for linear lighting applications

Product benefits

Choose a variant:

LED Line W5.5 3R Gen. 4, 280 mm

General data

Electrical operating data

Optical operating data

Lifetime

EPREL data

LED Line W5.5 3R Gen. 4, 566 mm

General data

Electrical operating data

Optical operating data

Lifetime

EPREL data

Contact

CREE

Nichia

Complementary secondary optics
