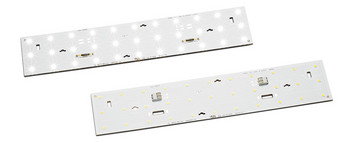

LED Line SMD W5.5 3R ComfortLine Gen.2

LED modules for linear lighting applications

LED build-in Linear modules, for integration mainly into linear luminaires. Available in different leghts, with on-board push-in terminal for TopSide and BackSide connection possibility. Perfectly fits to W5.5 Linear Optic system.

Product benefits

Available in different colour temperatures
Available in different lengths
Can be combined with VS optics
Narrow colour tolerance: 3-step MacAdam
Product guarantee: 5 years

Efficiency: up to 209 lm/W

Long service life: up to 93.000 hrs.

Find system solution!

Choose a variant:

LED Line SMD W5.5 3R ComfortLine Gen.2, 280 mm
LED Line SMD W5.5 3R ComfortLine Gen.2, 566 mm

LED Line SMD W5.5 3R ComfortLine Gen.2, 280 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
573626	MLC SC W5.5/280 T/33/830 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
573627	MLC SC W5.5/280 T/33/840 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
573628	MLC SC W5.5/280 T/33/850 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
573629	MLC SC W5.5/280 T/33/865 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	6500 K	120°
573630	MLC SC W5.5/280 B/33/830 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
573631	MLC SC W5.5/280 B/33/840 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
573632	MLC SC W5.5/280 B/33/850 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
573633	MLC SC W5.5/280 B/33/865 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.4 mm	SMD	cool white	6500 K	120°
573634	MLC SC W5.5/280 T/33/930 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
573635	MLC SC W5.5/280 T/33/940 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
573636	MLC SC W5.5/280 T/33/950 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
573637	MLC SC W5.5/280 T/33/965 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	6500 K	120°
573638	MLC SC W5.5/280 B/33/930 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
573639	MLC SC W5.5/280 B/33/940 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
573640	MLC SC W5.5/280 B/33/950 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
573641	MLC SC W5.5/280 B/33/965 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.4 mm	SMD	cool white	6500 K	120°
573677	MLC SC W5.5/280 T/33/927 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.1 mm	SMD	warm white	2700 K	120°
574289	MLC SC W5.5/280 B/33/935 G2	33 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	280 mm	55 mm	6.4 mm	SMD	neutral white	3500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
573626	MLC SC W5.5/280 T/33/830 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573627	MLC SC W5.5/280 T/33/840 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573628	MLC SC W5.5/280 T/33/850 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573629	MLC SC W5.5/280 T/33/865 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573630	MLC SC W5.5/280 B/33/830 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573631	MLC SC W5.5/280 B/33/840 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573632	MLC SC W5.5/280 B/33/850 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573633	MLC SC W5.5/280 B/33/865 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573634	MLC SC W5.5/280 T/33/930 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573635	MLC SC W5.5/280 T/33/940 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573636	MLC SC W5.5/280 T/33/950 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573637	MLC SC W5.5/280 T/33/965 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573638	MLC SC W5.5/280 B/33/930 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573639	MLC SC W5.5/280 B/33/940 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573640	MLC SC W5.5/280 B/33/950 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573641	MLC SC W5.5/280 B/33/965 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
573677	MLC SC W5.5/280 T/33/927 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W
574289	MLC SC W5.5/280 B/33/935 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	28.7 V 29.3 V 29.8 V 30.5 V 31.3 V 31.7 V	4.3 W 7.3 W 10.4 W 15.3 W 21.9 W 25.4 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
573626	MLC SC W5.5/280 T/33/830 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	845 lm 1375 lm 1885 lm 2630 lm 3565 lm 4005 lm	196 lm/W 188 lm/W 181 lm/W 172 lm/W 162 lm/W 158 lm/W	80 80 80 80 80 80
573627	MLC SC W5.5/280 T/33/840 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	905 lm 1470 lm 2015 lm 2810 lm 3810 lm 4280 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573628	MLC SC W5.5/280 T/33/850 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	905 lm 1470 lm 2015 lm 2810 lm 3810 lm 4280 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573629	MLC SC W5.5/280 T/33/865 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	905 lm 1470 lm 2015 lm 2810 lm 3810 lm 4280 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573630	MLC SC W5.5/280 B/33/830 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	845 lm 1375 lm 1885 lm 2630 lm 3565 lm 4005 lm	196 lm/W 188 lm/W 181 lm/W 172 lm/W 162 lm/W 158 lm/W	80 80 80 80 80 80
573631	MLC SC W5.5/280 B/33/840 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	905 lm 1470 lm 2015 lm 2810 lm 3810 lm 4280 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573632	MLC SC W5.5/280 B/33/850 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	905 lm 1470 lm 2015 lm 2810 lm 3810 lm 4280 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573633	MLC SC W5.5/280 B/33/865 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	905 lm 1470 lm 2015 lm 2810 lm 3810 lm 4280 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573634	MLC SC W5.5/280 T/33/930 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	730 lm 1185 lm 1625 lm 2265 lm 3075 lm 3450 lm	169 lm/W 162 lm/W 156 lm/W 149 lm/W 140 lm/W 136 lm/W	90 90 90 90 90 90
573635	MLC SC W5.5/280 T/33/940 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	785 lm 1280 lm 1755 lm 2445 lm 3320 lm 3730 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573636	MLC SC W5.5/280 T/33/950 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	785 lm 1280 lm 1755 lm 2445 lm 3320 lm 3730 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573637	MLC SC W5.5/280 T/33/965 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	785 lm 1280 lm 1755 lm 2445 lm 3320 lm 3730 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573638	MLC SC W5.5/280 B/33/930 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	730 lm 1185 lm 1625 lm 2265 lm 3075 lm 3450 lm	169 lm/W 162 lm/W 156 lm/W 149 lm/W 140 lm/W 136 lm/W	90 90 90 90 90 90
573639	MLC SC W5.5/280 B/33/940 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	785 lm 1280 lm 1755 lm 2445 lm 3320 lm 3730 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573640	MLC SC W5.5/280 B/33/950 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	785 lm 1280 lm 1755 lm 2445 lm 3320 lm 3730 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573641	MLC SC W5.5/280 B/33/965 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	785 lm 1280 lm 1755 lm 2445 lm 3320 lm 3730 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573677	MLC SC W5.5/280 T/33/927 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	670 lm 1090 lm 1495 lm 2085 lm 2825 lm 3175 lm	155 lm/W 149 lm/W 143 lm/W 137 lm/W 129 lm/W 125 lm/W	90 90 90 90 90 90
574289	MLC SC W5.5/280 B/33/935 G2	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	730 lm 1185 lm 1625 lm 2265 lm 3075 lm 3450 lm	169 lm/W 162 lm/W 156 lm/W 149 lm/W 140 lm/W 136 lm/W	90 90 90 90 90 90

Lifetime

Ref. No.	Type	LED quantity
573626	MLC SC W5.5/280 T/33/830 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573627	MLC SC W5.5/280 T/33/840 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573628	MLC SC W5.5/280 T/33/850 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573629	MLC SC W5.5/280 T/33/865 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573630	MLC SC W5.5/280 B/33/830 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573631	MLC SC W5.5/280 B/33/840 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573632	MLC SC W5.5/280 B/33/850 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573633	MLC SC W5.5/280 B/33/865 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573634	MLC SC W5.5/280 T/33/930 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573635	MLC SC W5.5/280 T/33/940 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573636	MLC SC W5.5/280 T/33/950 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573637	MLC SC W5.5/280 T/33/965 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573638	MLC SC W5.5/280 B/33/930 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573639	MLC SC W5.5/280 B/33/940 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573640	MLC SC W5.5/280 B/33/950 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573641	MLC SC W5.5/280 B/33/965 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573677	MLC SC W5.5/280 T/33/927 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574289	MLC SC W5.5/280 B/33/935 G2	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
573626	MLC SC W5.5/280 T/33/830 G2	2640305	C
573627	MLC SC W5.5/280 T/33/840 G2	2640390	C
573628	MLC SC W5.5/280 T/33/850 G2	2640391	C
573629	MLC SC W5.5/280 T/33/865 G2	2640392	C
573630	MLC SC W5.5/280 B/33/830 G2	2640304	C
573631	MLC SC W5.5/280 B/33/840 G2	2640377	C
573632	MLC SC W5.5/280 B/33/850 G2	2640378	C
573633	MLC SC W5.5/280 B/33/865 G2	2640379	C
573634	MLC SC W5.5/280 T/33/930 G2	2640395	D
573635	MLC SC W5.5/280 T/33/940 G2	2640396	D
573636	MLC SC W5.5/280 T/33/950 G2	2640397	D
573637	MLC SC W5.5/280 T/33/965 G2	2640399	D
573638	MLC SC W5.5/280 B/33/930 G2	2640381	D
573639	MLC SC W5.5/280 B/33/940 G2	2640386	D
573640	MLC SC W5.5/280 B/33/950 G2	2640387	D
573641	MLC SC W5.5/280 B/33/965 G2	2640388	D
573677	MLC SC W5.5/280 T/33/927 G2	2640394	E
574289	MLC SC W5.5/280 B/33/935 G2	2640383	D

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
573626	MLC SC W5.5/280 T/33/830 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573627	MLC SC W5.5/280 T/33/840 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573628	MLC SC W5.5/280 T/33/850 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573629	MLC SC W5.5/280 T/33/865 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573630	MLC SC W5.5/280 B/33/830 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573631	MLC SC W5.5/280 B/33/840 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573632	MLC SC W5.5/280 B/33/850 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573633	MLC SC W5.5/280 B/33/865 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573634	MLC SC W5.5/280 T/33/930 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573635	MLC SC W5.5/280 T/33/940 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573636	MLC SC W5.5/280 T/33/950 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573637	MLC SC W5.5/280 T/33/965 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573638	MLC SC W5.5/280 B/33/930 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573639	MLC SC W5.5/280 B/33/940 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573640	MLC SC W5.5/280 B/33/950 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573641	MLC SC W5.5/280 B/33/965 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573677	MLC SC W5.5/280 T/33/927 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
574289	MLC SC W5.5/280 B/33/935 G2	33 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf

Ref. No.	Type	LED quantity	2D data	3D data
573626	MLC SC W5.5/280 T/33/830 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573627	MLC SC W5.5/280 T/33/840 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573628	MLC SC W5.5/280 T/33/850 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573629	MLC SC W5.5/280 T/33/865 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573630	MLC SC W5.5/280 B/33/830 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573631	MLC SC W5.5/280 B/33/840 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573632	MLC SC W5.5/280 B/33/850 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573633	MLC SC W5.5/280 B/33/865 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573634	MLC SC W5.5/280 T/33/930 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573635	MLC SC W5.5/280 T/33/940 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573636	MLC SC W5.5/280 T/33/950 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573637	MLC SC W5.5/280 T/33/965 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573638	MLC SC W5.5/280 B/33/930 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573639	MLC SC W5.5/280 B/33/940 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573640	MLC SC W5.5/280 B/33/950 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573641	MLC SC W5.5/280 B/33/965 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
573677	MLC SC W5.5/280 T/33/927 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip
574289	MLC SC W5.5/280 B/33/935 G2	33 pcs.	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	3D_MLC_SC_W5.5-280_x-33-yzz_G2.zip

ldt und ies data
LDC_MLC-SC-W5_5-280-33-G2_OpticsIP20.zip

Ref. No.	Type
573626	MLC SC W5.5/280 T/33/830 G2
573627	MLC SC W5.5/280 T/33/840 G2
573628	MLC SC W5.5/280 T/33/850 G2
573629	MLC SC W5.5/280 T/33/865 G2
573630	MLC SC W5.5/280 B/33/830 G2
573631	MLC SC W5.5/280 B/33/840 G2
573632	MLC SC W5.5/280 B/33/850 G2
573633	MLC SC W5.5/280 B/33/865 G2
573634	MLC SC W5.5/280 T/33/930 G2
573635	MLC SC W5.5/280 T/33/940 G2
573636	MLC SC W5.5/280 T/33/950 G2
573637	MLC SC W5.5/280 T/33/965 G2
573638	MLC SC W5.5/280 B/33/930 G2
573639	MLC SC W5.5/280 B/33/940 G2
573640	MLC SC W5.5/280 B/33/950 G2
573641	MLC SC W5.5/280 B/33/965 G2
573677	MLC SC W5.5/280 T/33/927 G2
574289	MLC SC W5.5/280 B/33/935 G2

Ref. No.	Type	2D data	3D data
573626	MLC SC W5.5/280 T/33/830 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573627	MLC SC W5.5/280 T/33/840 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573628	MLC SC W5.5/280 T/33/850 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573629	MLC SC W5.5/280 T/33/865 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573630	MLC SC W5.5/280 B/33/830 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573631	MLC SC W5.5/280 B/33/840 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573632	MLC SC W5.5/280 B/33/850 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573633	MLC SC W5.5/280 B/33/865 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573634	MLC SC W5.5/280 T/33/930 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573635	MLC SC W5.5/280 T/33/940 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573636	MLC SC W5.5/280 T/33/950 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573637	MLC SC W5.5/280 T/33/965 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573638	MLC SC W5.5/280 B/33/930 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573639	MLC SC W5.5/280 B/33/940 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573640	MLC SC W5.5/280 B/33/950 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573641	MLC SC W5.5/280 B/33/965 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573677	MLC SC W5.5/280 T/33/927 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574289	MLC SC W5.5/280 B/33/935 G2	2D_MLC_SC_W5.5-280_x-33-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

LED Line SMD W5.5 3R ComfortLine Gen.2, 566 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
573642	MLC SC W5.5/566 T/66/830 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
573643	MLC SC W5.5/566 T/66/840 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
573644	MLC SC W5.5/566 T/66/850 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
573645	MLC SC W5.5/566 T/66/865 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.1 mm	SMD	cool white	6500 K	120°
573646	MLC SC W5.5/566 B/66/830 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
573647	MLC SC W5.5/566 B/66/840 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
573648	MLC SC W5.5/566 B/66/850 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
573649	MLC SC W5.5/566 B/66/865 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.4 mm	SMD	cool white	6500 K	120°
573650	MLC SC W5.5/566 T/66/930 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
573651	MLC SC W5.5/566 T/66/940 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
573652	MLC SC W5.5/566 T/66/950 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
573653	MLC SC W5.5/566 T/66/965 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.1 mm	SMD	cool white	6500 K	120°
573654	MLC SC W5.5/566 B/66/930 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
573655	MLC SC W5.5/566 B/66/940 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
573656	MLC SC W5.5/566 B/66/950 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
573657	MLC SC W5.5/566 B/66/965 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.4 mm	SMD	cool white	6500 K	120°
574662	MLC SC W5.5/566 T/66/835 G2	66 pcs.	LED-Line-SMD-3R-Comfort_Gen-2_EN.pdf	566 mm	55 mm	6.1 mm	SMD	neutral white	3500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
573642	MLC SC W5.5/566 T/66/830 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573643	MLC SC W5.5/566 T/66/840 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573644	MLC SC W5.5/566 T/66/850 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573645	MLC SC W5.5/566 T/66/865 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573646	MLC SC W5.5/566 B/66/830 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573647	MLC SC W5.5/566 B/66/840 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573648	MLC SC W5.5/566 B/66/850 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573649	MLC SC W5.5/566 B/66/865 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573650	MLC SC W5.5/566 T/66/930 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573651	MLC SC W5.5/566 T/66/940 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573652	MLC SC W5.5/566 T/66/950 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573653	MLC SC W5.5/566 T/66/965 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573654	MLC SC W5.5/566 B/66/930 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573655	MLC SC W5.5/566 B/66/940 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573656	MLC SC W5.5/566 B/66/950 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
573657	MLC SC W5.5/566 B/66/965 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W
574662	MLC SC W5.5/566 T/66/835 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	57.5 V 58.6 V 59.6 V 61 V 62.7 V 63.5 V	8.6 W 14.7 W 20.9 W 30.5 W 43.9 W 50.8 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
573642	MLC SC W5.5/566 T/66/830 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1690 lm 2750 lm 3775 lm 5255 lm 7130 lm 8010 lm	196 lm/W 188 lm/W 181 lm/W 172 lm/W 162 lm/W 158 lm/W	80 80 80 80 80 80
573643	MLC SC W5.5/566 T/66/840 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1805 lm 2940 lm 4035 lm 5620 lm 7620 lm 8560 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573644	MLC SC W5.5/566 T/66/850 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1805 lm 2940 lm 4035 lm 5620 lm 7620 lm 8560 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573645	MLC SC W5.5/566 T/66/865 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1805 lm 2940 lm 4035 lm 5620 lm 7620 lm 8560 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573646	MLC SC W5.5/566 B/66/830 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1690 lm 2750 lm 3775 lm 5255 lm 7130 lm 8010 lm	196 lm/W 188 lm/W 181 lm/W 172 lm/W 162 lm/W 158 lm/W	80 80 80 80 80 80
573647	MLC SC W5.5/566 B/66/840 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1805 lm 2940 lm 4035 lm 5620 lm 7620 lm 8560 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573648	MLC SC W5.5/566 B/66/850 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1805 lm 2940 lm 4035 lm 5620 lm 7620 lm 8560 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573649	MLC SC W5.5/566 B/66/865 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1805 lm 2940 lm 4035 lm 5620 lm 7620 lm 8560 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80
573650	MLC SC W5.5/566 T/66/930 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1455 lm 2375 lm 3255 lm 4530 lm 6145 lm 6905 lm	169 lm/W 162 lm/W 156 lm/W 149 lm/W 140 lm/W 136 lm/W	90 90 90 90 90 90
573651	MLC SC W5.5/566 T/66/940 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1575 lm 2565 lm 3515 lm 4895 lm 6640 lm 7455 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573652	MLC SC W5.5/566 T/66/950 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1575 lm 2565 lm 3515 lm 4895 lm 6640 lm 7455 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573653	MLC SC W5.5/566 T/66/965 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1575 lm 2565 lm 3515 lm 4895 lm 6640 lm 7455 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573654	MLC SC W5.5/566 B/66/930 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1455 lm 2375 lm 3255 lm 4530 lm 6145 lm 6905 lm	169 lm/W 162 lm/W 156 lm/W 149 lm/W 140 lm/W 136 lm/W	90 90 90 90 90 90
573655	MLC SC W5.5/566 B/66/940 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1575 lm 2565 lm 3515 lm 4895 lm 6640 lm 7455 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573656	MLC SC W5.5/566 B/66/950 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1575 lm 2565 lm 3515 lm 4895 lm 6640 lm 7455 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
573657	MLC SC W5.5/566 B/66/965 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1575 lm 2565 lm 3515 lm 4895 lm 6640 lm 7455 lm	182 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W 147 lm/W	90 90 90 90 90 90
574662	MLC SC W5.5/566 T/66/835 G2	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	1805 lm 2940 lm 4035 lm 5620 lm 7620 lm 8560 lm	209 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W 169 lm/W	80 80 80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
573642	MLC SC W5.5/566 T/66/830 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573643	MLC SC W5.5/566 T/66/840 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573644	MLC SC W5.5/566 T/66/850 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573645	MLC SC W5.5/566 T/66/865 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573646	MLC SC W5.5/566 B/66/830 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573647	MLC SC W5.5/566 B/66/840 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573648	MLC SC W5.5/566 B/66/850 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573649	MLC SC W5.5/566 B/66/865 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573650	MLC SC W5.5/566 T/66/930 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573651	MLC SC W5.5/566 T/66/940 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573652	MLC SC W5.5/566 T/66/950 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573653	MLC SC W5.5/566 T/66/965 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573654	MLC SC W5.5/566 B/66/930 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573655	MLC SC W5.5/566 B/66/940 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573656	MLC SC W5.5/566 B/66/950 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573657	MLC SC W5.5/566 B/66/965 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574662	MLC SC W5.5/566 T/66/835 G2	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA 800 mA	80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 70 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 50 10 10 10 10 10 10 10 10 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
573642	MLC SC W5.5/566 T/66/830 G2	2640410	C
573643	MLC SC W5.5/566 T/66/840 G2	2640411	C
573644	MLC SC W5.5/566 T/66/850 G2	2640412	C
573645	MLC SC W5.5/566 T/66/865 G2	2640414	C
573646	MLC SC W5.5/566 B/66/830 G2	2640400	C
573647	MLC SC W5.5/566 B/66/840 G2	2640401	C
573648	MLC SC W5.5/566 B/66/850 G2	2640402	C
573649	MLC SC W5.5/566 B/66/865 G2	2640404	C
573650	MLC SC W5.5/566 T/66/930 G2	2640415	D
573651	MLC SC W5.5/566 T/66/940 G2	2640417	D
573652	MLC SC W5.5/566 T/66/950 G2	2640418	D
573653	MLC SC W5.5/566 T/66/965 G2	2640419	D
573654	MLC SC W5.5/566 B/66/930 G2	2640406	D
573655	MLC SC W5.5/566 B/66/940 G2	2640407	D
573656	MLC SC W5.5/566 B/66/950 G2	2640408	D
573657	MLC SC W5.5/566 B/66/965 G2	2640409	D
574662	MLC SC W5.5/566 T/66/835 G2	2642283	C

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
573642	MLC SC W5.5/566 T/66/830 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573643	MLC SC W5.5/566 T/66/840 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573644	MLC SC W5.5/566 T/66/850 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573645	MLC SC W5.5/566 T/66/865 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573646	MLC SC W5.5/566 B/66/830 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573647	MLC SC W5.5/566 B/66/840 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573648	MLC SC W5.5/566 B/66/850 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573649	MLC SC W5.5/566 B/66/865 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573650	MLC SC W5.5/566 T/66/930 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573651	MLC SC W5.5/566 T/66/940 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573652	MLC SC W5.5/566 T/66/950 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573653	MLC SC W5.5/566 T/66/965 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573654	MLC SC W5.5/566 B/66/930 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573655	MLC SC W5.5/566 B/66/940 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573656	MLC SC W5.5/566 B/66/950 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573657	MLC SC W5.5/566 B/66/965 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
574662	MLC SC W5.5/566 T/66/835 G2	66 pcs.	EU Declaration of Conformity Module LED Line SMD W5.5 3R Comfort G2 (MLC SC W5.5).pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf

Ref. No.	Type	LED quantity	2D data	3D data
573642	MLC SC W5.5/566 T/66/830 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573643	MLC SC W5.5/566 T/66/840 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573644	MLC SC W5.5/566 T/66/850 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573645	MLC SC W5.5/566 T/66/865 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573646	MLC SC W5.5/566 B/66/830 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573647	MLC SC W5.5/566 B/66/840 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573648	MLC SC W5.5/566 B/66/850 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573649	MLC SC W5.5/566 B/66/865 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573650	MLC SC W5.5/566 T/66/930 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573651	MLC SC W5.5/566 T/66/940 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573652	MLC SC W5.5/566 T/66/950 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573653	MLC SC W5.5/566 T/66/965 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573654	MLC SC W5.5/566 B/66/930 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573655	MLC SC W5.5/566 B/66/940 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573656	MLC SC W5.5/566 B/66/950 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
573657	MLC SC W5.5/566 B/66/965 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip
574662	MLC SC W5.5/566 T/66/835 G2	66 pcs.	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	3D_MLC_SC_W5.5-566_x-66-yzz_G2.zip

ldt und ies data
LDC_MLC-SC-W5_5-280-33-G2_OpticsIP20.zip

Ref. No.	Type
573642	MLC SC W5.5/566 T/66/830 G2
573643	MLC SC W5.5/566 T/66/840 G2
573644	MLC SC W5.5/566 T/66/850 G2
573645	MLC SC W5.5/566 T/66/865 G2
573646	MLC SC W5.5/566 B/66/830 G2
573647	MLC SC W5.5/566 B/66/840 G2
573648	MLC SC W5.5/566 B/66/850 G2
573649	MLC SC W5.5/566 B/66/865 G2
573650	MLC SC W5.5/566 T/66/930 G2
573651	MLC SC W5.5/566 T/66/940 G2
573652	MLC SC W5.5/566 T/66/950 G2
573653	MLC SC W5.5/566 T/66/965 G2
573654	MLC SC W5.5/566 B/66/930 G2
573655	MLC SC W5.5/566 B/66/940 G2
573656	MLC SC W5.5/566 B/66/950 G2
573657	MLC SC W5.5/566 B/66/965 G2
574662	MLC SC W5.5/566 T/66/835 G2

Ref. No.	Type	2D data	3D data
573642	MLC SC W5.5/566 T/66/830 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573643	MLC SC W5.5/566 T/66/840 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573644	MLC SC W5.5/566 T/66/850 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573645	MLC SC W5.5/566 T/66/865 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573646	MLC SC W5.5/566 B/66/830 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573647	MLC SC W5.5/566 B/66/840 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573648	MLC SC W5.5/566 B/66/850 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573649	MLC SC W5.5/566 B/66/865 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573650	MLC SC W5.5/566 T/66/930 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573651	MLC SC W5.5/566 T/66/940 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573652	MLC SC W5.5/566 T/66/950 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573653	MLC SC W5.5/566 T/66/965 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573654	MLC SC W5.5/566 B/66/930 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573655	MLC SC W5.5/566 B/66/940 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573656	MLC SC W5.5/566 B/66/950 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573657	MLC SC W5.5/566 B/66/965 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574662	MLC SC W5.5/566 T/66/835 G2	2D_MLC_SC_W5.5-566_x-66-yzz_G2.pdf	10 10 10 10 10 10 10 10 50 10 10 10 10 10 10 10 10 10 10

Contact

LED Line SMD W5.5 3R ComfortLine Gen.2

LED modules for linear lighting applications

Product benefits

Choose a variant:

LED Line SMD W5.5 3R ComfortLine Gen.2, 280 mm

General data

Electrical operating data

Optical operating data

Lifetime

EPREL data

LED Line SMD W5.5 3R ComfortLine Gen.2, 566 mm

General data

Electrical operating data

Optical operating data

Lifetime

EPREL data

Contact

CREE

Nichia

Complementary secondary optics
