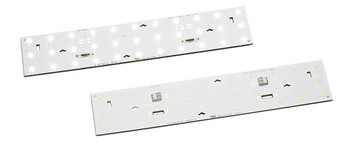

LED Line SMD W5.5 3R Comfort

LED SMD modules for linear lighting applications

LED built-in modules for integration into luminaires with on-board push terminal system.

Product benefits

Available in different colour temperatures
Available in different lengths
Narrow colour tolerance: 3-step MacAdam
Various attachment optics available

Efficiency: up to 201 lm/W

Long service life: up to 90.000 hrs.

Find system solution!

LED Line W5.5 3R Comfort, 280 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
571792	WU-M-526-SH-TC-830	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
571793	WU-M-526-SH-BC-830	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
571794	WU-M-526-SH-TC-840	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
571795	WU-M-526-SH-BC-840	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
571796	WU-M-526-SH-TC-850	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
571797	WU-M-526-SH-TC-865	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	6500 K	120°
571798	WU-M-526-SH-TC-930	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
571799	WU-M-526-SH-TC-940	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
571837	WU-M-526-SH-BC-930	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
571838	WU-M-526-SH-BC-940	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
572164	WU-M-526-SH-TC-950	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
572939	WU-M-526-SH-BC-850	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
572757	WU-M-526-SH-BC-950	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
572949	WU-M-526-SH-TC-965	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.1 mm	SMD	cool white	6500 K	120°
573077	WU-M-526-SH-TC-835	33 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	280 mm	55 mm	6.1 mm	SMD	neutral white	3500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
571792	WU-M-526-SH-TC-830	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
571793	WU-M-526-SH-BC-830	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
571794	WU-M-526-SH-TC-840	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
571795	WU-M-526-SH-BC-840	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
571796	WU-M-526-SH-TC-850	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
571797	WU-M-526-SH-TC-865	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
571798	WU-M-526-SH-TC-930	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
571799	WU-M-526-SH-TC-940	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
571837	WU-M-526-SH-BC-930	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
571838	WU-M-526-SH-BC-940	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
572164	WU-M-526-SH-TC-950	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
572939	WU-M-526-SH-BC-850	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
572757	WU-M-526-SH-BC-950	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.8 V 30.4 V 31.2 V 32.5 V 33.7 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
572949	WU-M-526-SH-TC-965	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W
573077	WU-M-526-SH-TC-835	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	29.4 V 29.9 V 30.8 V 32 V 33.2 V	4.4 W 7.5 W 10.8 W 16 W 23.2 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
571792	WU-M-526-SH-TC-830	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	840 lm 1385 lm 1915 lm 2695 lm 3655 lm	190 lm/W 185 lm/W 178 lm/W 168 lm/W 157 lm/W	80 80 80 80 80
571793	WU-M-526-SH-BC-830	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	840 lm 1385 lm 1915 lm 2695 lm 3655 lm	190 lm/W 185 lm/W 178 lm/W 168 lm/W 157 lm/W	80 80 80 80 80
571794	WU-M-526-SH-TC-840	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	885 lm 1460 lm 2025 lm 2850 lm 3865 lm	201 lm/W 195 lm/W 188 lm/W 178 lm/W 167 lm/W	80 80 80 80 80
571795	WU-M-526-SH-BC-840	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	885 lm 1460 lm 2025 lm 2850 lm 3865 lm	201 lm/W 195 lm/W 188 lm/W 178 lm/W 167 lm/W	80 80 80 80 80
571796	WU-M-526-SH-TC-850	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	885 lm 1460 lm 2025 lm 2850 lm 3865 lm	201 lm/W 195 lm/W 188 lm/W 178 lm/W 167 lm/W	80 80 80 80 80
571797	WU-M-526-SH-TC-865	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	865 lm 1425 lm 1980 lm 2780 lm 3770 lm	196 lm/W 191 lm/W 184 lm/W 173 lm/W 162 lm/W	80 80 80 80 80
571798	WU-M-526-SH-TC-930	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	715 lm 1180 lm 1630 lm 2295 lm 3115 lm	162 lm/W 157 lm/W 152 lm/W 143 lm/W 134 lm/W	90 90 90 90 90
571799	WU-M-526-SH-TC-940	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	745 lm 1235 lm 1710 lm 2400 lm 3260 lm	170 lm/W 165 lm/W 159 lm/W 150 lm/W 140 lm/W	90 90 90 90 90
571837	WU-M-526-SH-BC-930	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	715 lm 1180 lm 1630 lm 2295 lm 3115 lm	162 lm/W 157 lm/W 152 lm/W 143 lm/W 134 lm/W	90 90 90 90 90
571838	WU-M-526-SH-BC-940	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	745 lm 1235 lm 1710 lm 2400 lm 3260 lm	170 lm/W 165 lm/W 159 lm/W 150 lm/W 140 lm/W	90 90 90 90 90
572164	WU-M-526-SH-TC-950	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	745 lm 1235 lm 1710 lm 2400 lm 3260 lm	170 lm/W 165 lm/W 159 lm/W 150 lm/W 140 lm/W	90 90 90 90 90
572939	WU-M-526-SH-BC-850	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	885 lm 1460 lm 2025 lm 2850 lm 3865 lm	201 lm/W 195 lm/W 188 lm/W 178 lm/W 167 lm/W	80 80 80 80 80
572757	WU-M-526-SH-BC-950	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	745 lm 1235 lm 1710 lm 2400 lm 3260 lm	170 lm/W 165 lm/W 159 lm/W 150 lm/W 140 lm/W	90 90 90 90 90
572949	WU-M-526-SH-TC-965	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	720 lm 1185 lm 1645 lm 2310 lm 3135 lm	163 lm/W 158 lm/W 153 lm/W 144 lm/W 135 lm/W	90 90 90 90 90
573077	WU-M-526-SH-TC-835	33 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	850 lm 1400 lm 1940 lm 2725 lm 3700 lm	193 lm/W 187 lm/W 180 lm/W 170 lm/W 159 lm/W	80 80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
571792	WU-M-526-SH-TC-830	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	85000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571793	WU-M-526-SH-BC-830	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C	85000 hrs. 90000 hrs. 90000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571794	WU-M-526-SH-TC-840	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C	85000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571795	WU-M-526-SH-BC-840	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C	90000 hrs. 85000 hrs. 90000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571796	WU-M-526-SH-TC-850	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	85000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571797	WU-M-526-SH-TC-865	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C	85000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571798	WU-M-526-SH-TC-930	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	90000 hrs. 85000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571799	WU-M-526-SH-TC-940	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C	85000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571837	WU-M-526-SH-BC-930	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	85000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571838	WU-M-526-SH-BC-940	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	90000 hrs. 85000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572164	WU-M-526-SH-TC-950	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	90000 hrs. 90000 hrs. 85000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572939	WU-M-526-SH-BC-850	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C	90000 hrs. 85000 hrs. 90000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572757	WU-M-526-SH-BC-950	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	90000 hrs. 85000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572949	WU-M-526-SH-TC-965	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	90000 hrs. 90000 hrs. 85000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573077	WU-M-526-SH-TC-835	33 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C	90000 hrs. 90000 hrs. 85000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
571792	WU-M-526-SH-TC-830	1058078	C
571793	WU-M-526-SH-BC-830	1058046	C
571794	WU-M-526-SH-TC-840	1058079	C
571795	WU-M-526-SH-BC-840	1058049	C
571796	WU-M-526-SH-TC-850	1058081	C
571797	WU-M-526-SH-TC-865	1058084	C
571798	WU-M-526-SH-TC-930	1058099	D
571799	WU-M-526-SH-TC-940	1058104	D
571837	WU-M-526-SH-BC-930	1058070	D
571838	WU-M-526-SH-BC-940	1058072	D
572164	WU-M-526-SH-TC-950	1058107	D
572939	WU-M-526-SH-BC-850	1194409	C
572757	WU-M-526-SH-BC-950	1551271	D
572949	WU-M-526-SH-TC-965	1674999	D
573077	WU-M-526-SH-TC-835	1775656	C

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
571792	WU-M-526-SH-TC-830	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571793	WU-M-526-SH-BC-830	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571794	WU-M-526-SH-TC-840	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571795	WU-M-526-SH-BC-840	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571796	WU-M-526-SH-TC-850	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571797	WU-M-526-SH-TC-865	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571798	WU-M-526-SH-TC-930	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571799	WU-M-526-SH-TC-940	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571837	WU-M-526-SH-BC-930	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571838	WU-M-526-SH-BC-940	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
572164	WU-M-526-SH-TC-950	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
572939	WU-M-526-SH-BC-850	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
572757	WU-M-526-SH-BC-950	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
572949	WU-M-526-SH-TC-965	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573077	WU-M-526-SH-TC-835	33 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf

Ref. No.	Type	LED quantity	2D data	3D data
571792	WU-M-526-SH-TC-830	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-TC.zip
571793	WU-M-526-SH-BC-830	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-BC.zip
571794	WU-M-526-SH-TC-840	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-TC.zip
571795	WU-M-526-SH-BC-840	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-BC.zip
571796	WU-M-526-SH-TC-850	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-TC.zip
571797	WU-M-526-SH-TC-865	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-TC.zip
571798	WU-M-526-SH-TC-930	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-TC.zip
571799	WU-M-526-SH-TC-940	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-TC.zip
571837	WU-M-526-SH-BC-930	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-BC.zip
571838	WU-M-526-SH-BC-940	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-BC.zip
572164	WU-M-526-SH-TC-950	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-TC.zip
572939	WU-M-526-SH-BC-850	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-BC.zip
572757	WU-M-526-SH-BC-950	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-BC.zip
572949	WU-M-526-SH-TC-965	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf
573077	WU-M-526-SH-TC-835	33 pcs.	2D_WU-M-526-SH_Catalogue-graphic.pdf	3D-Model_WU-M-526-SH-TC.zip

Ref. No.	Type
571792	WU-M-526-SH-TC-830
571793	WU-M-526-SH-BC-830
571794	WU-M-526-SH-TC-840
571795	WU-M-526-SH-BC-840
571796	WU-M-526-SH-TC-850
571797	WU-M-526-SH-TC-865
571798	WU-M-526-SH-TC-930
571799	WU-M-526-SH-TC-940
571837	WU-M-526-SH-BC-930
571838	WU-M-526-SH-BC-940
572164	WU-M-526-SH-TC-950
572939	WU-M-526-SH-BC-850
572757	WU-M-526-SH-BC-950
572949	WU-M-526-SH-TC-965
573077	WU-M-526-SH-TC-835

Ref. No.	Type	2D data	3D data
571792	WU-M-526-SH-TC-830	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571793	WU-M-526-SH-BC-830	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571794	WU-M-526-SH-TC-840	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571795	WU-M-526-SH-BC-840	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571796	WU-M-526-SH-TC-850	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571797	WU-M-526-SH-TC-865	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571798	WU-M-526-SH-TC-930	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571799	WU-M-526-SH-TC-940	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571837	WU-M-526-SH-BC-930	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571838	WU-M-526-SH-BC-940	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572164	WU-M-526-SH-TC-950	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572939	WU-M-526-SH-BC-850	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572757	WU-M-526-SH-BC-950	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572949	WU-M-526-SH-TC-965	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573077	WU-M-526-SH-TC-835	2D_WU-M-526-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

LED Line W5.5 3R Comfort, 566 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
571800	WU-M-536-SH-TC-830	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
571801	WU-M-536-SH-BC-830	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
571802	WU-M-536-SH-TC-840	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
571803	WU-M-536-SH-BC-840	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
571804	WU-M-536-SH-TC-850	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
571805	WU-M-536-SH-TC-865	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.1 mm	SMD	cool white	6500 K	120°
571806	WU-M-536-SH-TC-930	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.1 mm	SMD	warm white	3000 K	120°
571807	WU-M-536-SH-TC-940	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.1 mm	SMD	neutral white	4000 K	120°
571839	WU-M-536-SH-BC-930	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
571840	WU-M-536-SH-BC-940	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
572165	WU-M-536-SH-TC-950	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.1 mm	SMD	cool white	5000 K	120°
573078	WU-M-536-SH-TC-835	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.1 mm	SMD	warm white	3500 K	120°
573184	WU-M-536-SH-BC-865	66 pcs.	LED-Line-SMD-3R-Comfort_EN.pdf	566 mm	55 mm	6.4 mm	SMD	cool white	6500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
571800	WU-M-536-SH-TC-830	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
571801	WU-M-536-SH-BC-830	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
571802	WU-M-536-SH-TC-840	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
571803	WU-M-536-SH-BC-840	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
571804	WU-M-536-SH-TC-850	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
571805	WU-M-536-SH-TC-865	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
571806	WU-M-536-SH-TC-930	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
571807	WU-M-536-SH-TC-940	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
571839	WU-M-536-SH-BC-930	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
571840	WU-M-536-SH-BC-940	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
572165	WU-M-536-SH-TC-950	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
573078	WU-M-536-SH-TC-835	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W
573184	WU-M-536-SH-BC-865	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	58.7 V 59.9 V 61.5 V 64.1 V 66.3 V	8.8 W 15 W 21.5 W 32 W 46.4 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
571800	WU-M-536-SH-TC-830	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1675 lm 2765 lm 3835 lm 5390 lm 7315 lm	190 lm/W 185 lm/W 178 lm/W 168 lm/W 157 lm/W	80 80 80 80 80
571801	WU-M-536-SH-BC-830	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1675 lm 2765 lm 3835 lm 5390 lm 7315 lm	190 lm/W 185 lm/W 178 lm/W 168 lm/W 157 lm/W	80 80 80 80 80
571802	WU-M-536-SH-TC-840	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1775 lm 2925 lm 4055 lm 5700 lm 7735 lm	201 lm/W 195 lm/W 188 lm/W 178 lm/W 167 lm/W	80 80 80 80 80
571803	WU-M-536-SH-BC-840	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1775 lm 2925 lm 4055 lm 5700 lm 7735 lm	201 lm/W 195 lm/W 188 lm/W 178 lm/W 167 lm/W	80 80 80 80 80
571804	WU-M-536-SH-TC-850	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1775 lm 2925 lm 4055 lm 5700 lm 7735 lm	201 lm/W 195 lm/W 188 lm/W 178 lm/W 167 lm/W	80 80 80 80 80
571805	WU-M-536-SH-TC-865	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1730 lm 2855 lm 3955 lm 5560 lm 7545 lm	196 lm/W 191 lm/W 184 lm/W 173 lm/W 162 lm/W	80 80 80 80 80
571806	WU-M-536-SH-TC-930	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1430 lm 2355 lm 3265 lm 4590 lm 6225 lm	162 lm/W 157 lm/W 152 lm/W 143 lm/W 134 lm/W	90 90 90 90 90
571807	WU-M-536-SH-TC-940	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1495 lm 2465 lm 3420 lm 4805 lm 6520 lm	170 lm/W 165 lm/W 159 lm/W 150 lm/W 140 lm/W	90 90 90 90 90
571839	WU-M-536-SH-BC-930	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1430 lm 2355 lm 3265 lm 4590 lm 6225 lm	162 lm/W 157 lm/W 152 lm/W 143 lm/W 134 lm/W	90 90 90 90 90
571840	WU-M-536-SH-BC-940	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1495 lm 2465 lm 3420 lm 4805 lm 6520 lm	170 lm/W 165 lm/W 159 lm/W 150 lm/W 140 lm/W	90 90 90 90 90
572165	WU-M-536-SH-TC-950	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1495 lm 2465 lm 3420 lm 4805 lm 6520 lm	170 lm/W 165 lm/W 159 lm/W 150 lm/W 140 lm/W	90 90 90 90 90
573078	WU-M-536-SH-TC-835	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1695 lm 2800 lm 3880 lm 5450 lm 7395 lm	193 lm/W 187 lm/W 180 lm/W 170 lm/W 159 lm/W	80 80 80 80 80
573184	WU-M-536-SH-BC-865	66 pcs.	150 mA 250 mA 350 mA 500 mA 700 mA	1730 lm 2855 lm 3955 lm 5560 lm 7545 lm	196 lm/W 191 lm/W 184 lm/W 173 lm/W 162 lm/W	80 80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
571800	WU-M-536-SH-TC-830	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C	90000 hrs. 90000 hrs. 85000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571801	WU-M-536-SH-BC-830	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C	85000 hrs. 90000 hrs. 90000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571802	WU-M-536-SH-TC-840	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	90000 hrs. 85000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571803	WU-M-536-SH-BC-840	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C	85000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571804	WU-M-536-SH-TC-850	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C	90000 hrs. 90000 hrs. 85000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571805	WU-M-536-SH-TC-865	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C	85000 hrs. 90000 hrs. 90000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571806	WU-M-536-SH-TC-930	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C	85000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571807	WU-M-536-SH-TC-940	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	90000 hrs. 85000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571839	WU-M-536-SH-BC-930	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	90000 hrs. 85000 hrs. 90000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571840	WU-M-536-SH-BC-940	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	90000 hrs. 90000 hrs. 85000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572165	WU-M-536-SH-TC-950	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C	85000 hrs. 90000 hrs. 90000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573078	WU-M-536-SH-TC-835	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C	90000 hrs. 90000 hrs. 85000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573184	WU-M-536-SH-BC-865	66 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 250 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C	85000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 54000 hrs. 72000 hrs. 72000 hrs. 36000 hrs. 36000 hrs. 36000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
571800	WU-M-536-SH-TC-830	1058146	C
571801	WU-M-536-SH-BC-830	1058111	C
571802	WU-M-536-SH-TC-840	1058151	C
571803	WU-M-536-SH-BC-840	1058123	C
571804	WU-M-536-SH-TC-850	1058155	C
571805	WU-M-536-SH-TC-865	1058157	C
571806	WU-M-536-SH-TC-930	1058167	D
571807	WU-M-536-SH-TC-940	1058170	D
571839	WU-M-536-SH-BC-930	1058128	D
571840	WU-M-536-SH-BC-940	1058136	D
572165	WU-M-536-SH-TC-950	1058174	D
573078	WU-M-536-SH-TC-835	1775660	C
573184	WU-M-536-SH-BC-865	1925503	C

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
571800	WU-M-536-SH-TC-830	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571801	WU-M-536-SH-BC-830	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571802	WU-M-536-SH-TC-840	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571803	WU-M-536-SH-BC-840	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571804	WU-M-536-SH-TC-850	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571805	WU-M-536-SH-TC-865	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571806	WU-M-536-SH-TC-930	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571807	WU-M-536-SH-TC-940	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571839	WU-M-536-SH-BC-930	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
571840	WU-M-536-SH-BC-940	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
572165	WU-M-536-SH-TC-950	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573078	WU-M-536-SH-TC-835	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf
573184	WU-M-536-SH-BC-865	66 pcs.	Module LED Line SMD W5.5 Comfort (WU-M-526-SH-xC-yzz and WU-M-536-SH-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040054046_ORDER_325985_12914946.pdf

Ref. No.	Type	LED quantity	2D data	3D data
571800	WU-M-536-SH-TC-830	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-TC.zip
571801	WU-M-536-SH-BC-830	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-BC.zip
571802	WU-M-536-SH-TC-840	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-TC.zip
571803	WU-M-536-SH-BC-840	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-BC.zip
571804	WU-M-536-SH-TC-850	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-TC.zip
571805	WU-M-536-SH-TC-865	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-TC.zip
571806	WU-M-536-SH-TC-930	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-TC.zip
571807	WU-M-536-SH-TC-940	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-TC.zip
571839	WU-M-536-SH-BC-930	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-BC.zip
571840	WU-M-536-SH-BC-940	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-BC.zip
572165	WU-M-536-SH-TC-950	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-TC.zip
573078	WU-M-536-SH-TC-835	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-TC.zip
573184	WU-M-536-SH-BC-865	66 pcs.	2D_WU-M-536-SH_Catalogue-graphic.pdf	3D-Model_WU-M-536-SH-BC.zip

Ref. No.	Type
571800	WU-M-536-SH-TC-830
571801	WU-M-536-SH-BC-830
571802	WU-M-536-SH-TC-840
571803	WU-M-536-SH-BC-840
571804	WU-M-536-SH-TC-850
571805	WU-M-536-SH-TC-865
571806	WU-M-536-SH-TC-930
571807	WU-M-536-SH-TC-940
571839	WU-M-536-SH-BC-930
571840	WU-M-536-SH-BC-940
572165	WU-M-536-SH-TC-950
573078	WU-M-536-SH-TC-835
573184	WU-M-536-SH-BC-865

Ref. No.	Type	2D data	3D data
571800	WU-M-536-SH-TC-830	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571801	WU-M-536-SH-BC-830	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571802	WU-M-536-SH-TC-840	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571803	WU-M-536-SH-BC-840	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571804	WU-M-536-SH-TC-850	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571805	WU-M-536-SH-TC-865	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571806	WU-M-536-SH-TC-930	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571807	WU-M-536-SH-TC-940	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571839	WU-M-536-SH-BC-930	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
571840	WU-M-536-SH-BC-940	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
572165	WU-M-536-SH-TC-950	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573078	WU-M-536-SH-TC-835	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573184	WU-M-536-SH-BC-865	2D_WU-M-536-SH_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Contact

LED Line SMD W5.5 3R Comfort

LED SMD modules for linear lighting applications

Product benefits

Choose a variant:

LED Line W5.5 3R Comfort, 280 mm

General data

Electrical operating data

Optical operating data

Lifetime

EPREL data

LED Line W5.5 3R Comfort, 566 mm

General data

Electrical operating data

Optical operating data

Lifetime

EPREL data

Contact

CREE

Nichia

Complementary secondary optics
