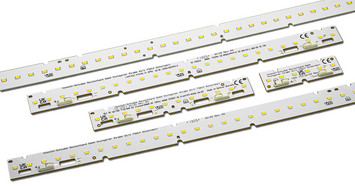

LED Line SMD W2 EasyLine Gen.3

LED modules for linear lighting applications

LED build-in Linear modules, for integration mainly into linear luminaires. Available in different lumen packages and as well in different leghts, with on-board push-in terminal for TopSide and BackSide connection possibility. Perfectly fits to W2 Linear Optic system with Single and Tunnel lens variants.

Product benefits

Available in different colour temperatures
Available in different lengths
Available in different lumen packages
Can be combined with VS optics
Narrow colour tolerance: 3-step MacAdam
Product guarantee: 5 years

Efficiency: up to 185 lm/W

Long service life: up to 90.000 hrs.

Choose a variant:

LED Line SMD W2 EasyLine Gen.3, 70 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
574000	MLE SC W2/70 S/3R/840 G3	3 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574001	MLE SC W2/70 S/6/830 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574002	MLE SC W2/70 S/6/840 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
573991	MLE SC W2/70 T/3R/830 G3	3 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
573992	MLE SC W2/70 T/3R/840 G3	3 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
573993	MLE SC W2/70 T/3R/850 G3	3 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
573994	MLE SC W2/70 T/3R/865 G3	3 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
573995	MLE SC W2/70 T/6/830 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
573996	MLE SC W2/70 T/6/840 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
573997	MLE SC W2/70 T/6/850 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
573998	MLE SC W2/70 T/6/865 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
573999	MLE SC W2/70 S/3R/830 G3	3 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	69 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
574000	MLE SC W2/70 S/3R/840 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	2.7 V 2.7 V 2.8 V 2.8 V	0.4 W 0.5 W 0.7 W 0.8 W
574001	MLE SC W2/70 S/6/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
574002	MLE SC W2/70 S/6/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
573991	MLE SC W2/70 T/3R/830 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	2.7 V 2.7 V 2.8 V 2.8 V	0.4 W 0.5 W 0.7 W 0.8 W
573992	MLE SC W2/70 T/3R/840 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	2.7 V 2.7 V 2.8 V 2.8 V	0.4 W 0.5 W 0.7 W 0.8 W
573993	MLE SC W2/70 T/3R/850 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	2.7 V 2.7 V 2.8 V 2.8 V	0.4 W 0.5 W 0.7 W 0.8 W
573994	MLE SC W2/70 T/3R/865 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	2.7 V 2.7 V 2.8 V 2.8 V	0.4 W 0.5 W 0.7 W 0.8 W
573995	MLE SC W2/70 T/6/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
573996	MLE SC W2/70 T/6/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
573997	MLE SC W2/70 T/6/850 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
573998	MLE SC W2/70 T/6/865 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
573999	MLE SC W2/70 S/3R/830 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	2.7 V 2.7 V 2.8 V 2.8 V	0.4 W 0.5 W 0.7 W 0.8 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
574000	MLE SC W2/70 S/3R/840 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	75 lm 100 lm 125 lm 145 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574001	MLE SC W2/70 S/6/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	140 lm 190 lm 235 lm 280 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574002	MLE SC W2/70 S/6/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	150 lm 195 lm 245 lm 295 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
573991	MLE SC W2/70 T/3R/830 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	70 lm 95 lm 120 lm 140 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
573992	MLE SC W2/70 T/3R/840 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	75 lm 100 lm 125 lm 145 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
573993	MLE SC W2/70 T/3R/850 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	75 lm 100 lm 125 lm 145 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
573994	MLE SC W2/70 T/3R/865 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	70 lm 95 lm 120 lm 145 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
573995	MLE SC W2/70 T/6/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	140 lm 190 lm 235 lm 280 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
573996	MLE SC W2/70 T/6/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	150 lm 195 lm 245 lm 295 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
573997	MLE SC W2/70 T/6/850 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	150 lm 195 lm 245 lm 295 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
573998	MLE SC W2/70 T/6/865 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	145 lm 190 lm 240 lm 285 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
573999	MLE SC W2/70 S/3R/830 G3	3 pcs.	150 mA 200 mA 250 mA 300 mA	70 lm 95 lm 120 lm 140 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
574000	MLE SC W2/70 S/3R/840 G3	3 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574001	MLE SC W2/70 S/6/830 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574002	MLE SC W2/70 S/6/840 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
573991	MLE SC W2/70 T/3R/830 G3	3 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
573992	MLE SC W2/70 T/3R/840 G3	3 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
573993	MLE SC W2/70 T/3R/850 G3	3 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
573994	MLE SC W2/70 T/3R/865 G3	3 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
573995	MLE SC W2/70 T/6/830 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
573996	MLE SC W2/70 T/6/840 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
573997	MLE SC W2/70 T/6/850 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
573998	MLE SC W2/70 T/6/865 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
573999	MLE SC W2/70 S/3R/830 G3	3 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10

Ref. No.	Type	LED quantity	EU Declaration of Conformity
574000	MLE SC W2/70 S/3R/840 G3	3 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574001	MLE SC W2/70 S/6/830 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574002	MLE SC W2/70 S/6/840 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
573991	MLE SC W2/70 T/3R/830 G3	3 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
573992	MLE SC W2/70 T/3R/840 G3	3 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
573993	MLE SC W2/70 T/3R/850 G3	3 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
573994	MLE SC W2/70 T/3R/865 G3	3 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
573995	MLE SC W2/70 T/6/830 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
573996	MLE SC W2/70 T/6/840 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
573997	MLE SC W2/70 T/6/850 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
573998	MLE SC W2/70 T/6/865 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
573999	MLE SC W2/70 S/3R/830 G3	3 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf

Ref. No.	Type	LED quantity	2D data	3D data
574000	MLE SC W2/70 S/3R/840 G3	3 pcs.	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLE_SC_W2-70_x-3R-yzz_G3.zip
574001	MLE SC W2/70 S/6/830 G3	6 pcs.	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	3D_MLE_SC_W2-70_x-6-yzz_G3.zip
574002	MLE SC W2/70 S/6/840 G3	6 pcs.	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	3D_MLE_SC_W2-70_x-6-yzz_G3.zip
573991	MLE SC W2/70 T/3R/830 G3	3 pcs.	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLE_SC_W2-70_x-3R-yzz_G3.zip
573992	MLE SC W2/70 T/3R/840 G3	3 pcs.	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLE_SC_W2-70_x-3R-yzz_G3.zip
573993	MLE SC W2/70 T/3R/850 G3	3 pcs.	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLE_SC_W2-70_x-3R-yzz_G3.zip
573994	MLE SC W2/70 T/3R/865 G3	3 pcs.	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLE_SC_W2-70_x-3R-yzz_G3.zip
573995	MLE SC W2/70 T/6/830 G3	6 pcs.	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	3D_MLE_SC_W2-70_x-6-yzz_G3.zip
573996	MLE SC W2/70 T/6/840 G3	6 pcs.	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	3D_MLE_SC_W2-70_x-6-yzz_G3.zip
573997	MLE SC W2/70 T/6/850 G3	6 pcs.	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	3D_MLE_SC_W2-70_x-6-yzz_G3.zip
573998	MLE SC W2/70 T/6/865 G3	6 pcs.	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	3D_MLE_SC_W2-70_x-6-yzz_G3.zip
573999	MLE SC W2/70 S/3R/830 G3	3 pcs.	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	3D_MLE_SC_W2-70_x-3R-yzz_G3.zip

ldt und ies data
LDC_LED_Line_SMD_W2_Easy_Gen3_W2_Optics.zip

Ref. No.	Type
574000	MLE SC W2/70 S/3R/840 G3
574001	MLE SC W2/70 S/6/830 G3
574002	MLE SC W2/70 S/6/840 G3
573991	MLE SC W2/70 T/3R/830 G3
573992	MLE SC W2/70 T/3R/840 G3
573993	MLE SC W2/70 T/3R/850 G3
573994	MLE SC W2/70 T/3R/865 G3
573995	MLE SC W2/70 T/6/830 G3
573996	MLE SC W2/70 T/6/840 G3
573997	MLE SC W2/70 T/6/850 G3
573998	MLE SC W2/70 T/6/865 G3
573999	MLE SC W2/70 S/3R/830 G3

Ref. No.	Type	2D data	3D data
574000	MLE SC W2/70 S/3R/840 G3	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574001	MLE SC W2/70 S/6/830 G3	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574002	MLE SC W2/70 S/6/840 G3	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
573991	MLE SC W2/70 T/3R/830 G3	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
573992	MLE SC W2/70 T/3R/840 G3	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
573993	MLE SC W2/70 T/3R/850 G3	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
573994	MLE SC W2/70 T/3R/865 G3	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
573995	MLE SC W2/70 T/6/830 G3	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
573996	MLE SC W2/70 T/6/840 G3	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
573997	MLE SC W2/70 T/6/850 G3	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
573998	MLE SC W2/70 T/6/865 G3	2D_MLE_SC_W2-70_x-6-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
573999	MLE SC W2/70 S/3R/830 G3	2D_MLE_SC_W2-70_x-3R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10

LED Line SMD W2 EasyLine Gen.3, 140 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
574003	MLE SC W2/140 T/6R/830 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574004	MLE SC W2/140 T/6R/840 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574005	MLE SC W2/140 T/6R/850 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
574006	MLE SC W2/140 T/6R/865 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574007	MLE SC W2/140 T/12/830 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574008	MLE SC W2/140 T/12/840 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574009	MLE SC W2/140 T/12/850 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
574010	MLE SC W2/140 T/12/865 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574011	MLE SC W2/140 B/6R/830 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.4 mm	SMD	warm white	3000 K	120°
574012	MLE SC W2/140 B/6R/840 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.4 mm	SMD	neutral white	4000 K	120°
574013	MLE SC W2/140 B/12/830 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.4 mm	SMD	warm white	3000 K	120°
574014	MLE SC W2/140 B/12/840 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	6.4 mm	SMD	neutral white	4000 K	120°
574015	MLE SC W2/140 S/6R/830 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574016	MLE SC W2/140 S/6R/840 G3	6 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574017	MLE SC W2/140 S/12/830 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574018	MLE SC W2/140 S/12/840 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	139 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
574003	MLE SC W2/140 T/6R/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
574004	MLE SC W2/140 T/6R/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
574005	MLE SC W2/140 T/6R/850 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
574006	MLE SC W2/140 T/6R/865 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
574007	MLE SC W2/140 T/12/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574008	MLE SC W2/140 T/12/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574009	MLE SC W2/140 T/12/850 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574010	MLE SC W2/140 T/12/865 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574011	MLE SC W2/140 B/6R/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
574012	MLE SC W2/140 B/6R/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
574013	MLE SC W2/140 B/12/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574014	MLE SC W2/140 B/12/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574015	MLE SC W2/140 S/6R/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
574016	MLE SC W2/140 S/6R/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	5.4 V 5.5 V 5.6 V 5.6 V	0.8 W 1.1 W 1.4 W 1.7 W
574017	MLE SC W2/140 S/12/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574018	MLE SC W2/140 S/12/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
574003	MLE SC W2/140 T/6R/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	140 lm 190 lm 235 lm 280 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574004	MLE SC W2/140 T/6R/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	150 lm 195 lm 245 lm 295 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574005	MLE SC W2/140 T/6R/850 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	150 lm 195 lm 245 lm 295 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574006	MLE SC W2/140 T/6R/865 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	145 lm 190 lm 240 lm 285 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
574007	MLE SC W2/140 T/12/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	285 lm 380 lm 470 lm 565 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574008	MLE SC W2/140 T/12/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	295 lm 395 lm 490 lm 585 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574009	MLE SC W2/140 T/12/850 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	295 lm 395 lm 490 lm 585 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574010	MLE SC W2/140 T/12/865 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	290 lm 385 lm 480 lm 575 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
574011	MLE SC W2/140 B/6R/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	140 lm 190 lm 235 lm 280 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574012	MLE SC W2/140 B/6R/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	150 lm 195 lm 245 lm 295 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574013	MLE SC W2/140 B/12/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	285 lm 380 lm 470 lm 565 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574014	MLE SC W2/140 B/12/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	295 lm 395 lm 490 lm 585 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574015	MLE SC W2/140 S/6R/830 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	140 lm 190 lm 235 lm 280 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574016	MLE SC W2/140 S/6R/840 G3	6 pcs.	150 mA 200 mA 250 mA 300 mA	150 lm 195 lm 245 lm 295 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574017	MLE SC W2/140 S/12/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	285 lm 380 lm 470 lm 565 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574018	MLE SC W2/140 S/12/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	295 lm 395 lm 490 lm 585 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
574003	MLE SC W2/140 T/6R/830 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574004	MLE SC W2/140 T/6R/840 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574005	MLE SC W2/140 T/6R/850 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574006	MLE SC W2/140 T/6R/865 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574007	MLE SC W2/140 T/12/830 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574008	MLE SC W2/140 T/12/840 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574009	MLE SC W2/140 T/12/850 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574010	MLE SC W2/140 T/12/865 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C	57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574011	MLE SC W2/140 B/6R/830 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574012	MLE SC W2/140 B/6R/840 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574013	MLE SC W2/140 B/12/830 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574014	MLE SC W2/140 B/12/840 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574015	MLE SC W2/140 S/6R/830 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574016	MLE SC W2/140 S/6R/840 G3	6 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574017	MLE SC W2/140 S/12/830 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574018	MLE SC W2/140 S/12/840 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10

Ref. No.	Type	LED quantity	EU Declaration of Conformity
574003	MLE SC W2/140 T/6R/830 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574004	MLE SC W2/140 T/6R/840 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574005	MLE SC W2/140 T/6R/850 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574006	MLE SC W2/140 T/6R/865 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574007	MLE SC W2/140 T/12/830 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574008	MLE SC W2/140 T/12/840 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574009	MLE SC W2/140 T/12/850 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574010	MLE SC W2/140 T/12/865 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574011	MLE SC W2/140 B/6R/830 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574012	MLE SC W2/140 B/6R/840 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574013	MLE SC W2/140 B/12/830 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574014	MLE SC W2/140 B/12/840 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574015	MLE SC W2/140 S/6R/830 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574016	MLE SC W2/140 S/6R/840 G3	6 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574017	MLE SC W2/140 S/12/830 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574018	MLE SC W2/140 S/12/840 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf

Ref. No.	Type	LED quantity	2D data	3D data
574003	MLE SC W2/140 T/6R/830 G3	6 pcs.	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLE_SC_W2-140_x-6R-yzz_G3.zip
574004	MLE SC W2/140 T/6R/840 G3	6 pcs.	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLE_SC_W2-140_x-6R-yzz_G3.zip
574005	MLE SC W2/140 T/6R/850 G3	6 pcs.	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLE_SC_W2-140_x-6R-yzz_G3.zip
574006	MLE SC W2/140 T/6R/865 G3	6 pcs.	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLE_SC_W2-140_x-6R-yzz_G3.zip
574007	MLE SC W2/140 T/12/830 G3	12 pcs.	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	3D_MLE_SC_W2-140_x-12-yzz_G3.zip
574008	MLE SC W2/140 T/12/840 G3	12 pcs.	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	3D_MLE_SC_W2-140_x-12-yzz_G3.zip
574009	MLE SC W2/140 T/12/850 G3	12 pcs.	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	3D_MLE_SC_W2-140_x-12-yzz_G3.zip
574010	MLE SC W2/140 T/12/865 G3	12 pcs.	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	3D_MLE_SC_W2-140_x-12-yzz_G3.zip
574011	MLE SC W2/140 B/6R/830 G3	6 pcs.	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLE_SC_W2-140_x-6R-yzz_G3.zip
574012	MLE SC W2/140 B/6R/840 G3	6 pcs.	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLE_SC_W2-140_x-6R-yzz_G3.zip
574013	MLE SC W2/140 B/12/830 G3	12 pcs.	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	3D_MLE_SC_W2-140_x-12-yzz_G3.zip
574014	MLE SC W2/140 B/12/840 G3	12 pcs.	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	3D_MLE_SC_W2-140_x-12-yzz_G3.zip
574015	MLE SC W2/140 S/6R/830 G3	6 pcs.	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLE_SC_W2-140_x-6R-yzz_G3.zip
574016	MLE SC W2/140 S/6R/840 G3	6 pcs.	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	3D_MLE_SC_W2-140_x-6R-yzz_G3.zip
574017	MLE SC W2/140 S/12/830 G3	12 pcs.	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	3D_MLE_SC_W2-140_x-12-yzz_G3.zip
574018	MLE SC W2/140 S/12/840 G3	12 pcs.	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	3D_MLE_SC_W2-140_x-12-yzz_G3.zip

ldt und ies data
LDC_LED_Line_SMD_W2_Easy_Gen3_W2_Optics.zip

Ref. No.	Type
574003	MLE SC W2/140 T/6R/830 G3
574004	MLE SC W2/140 T/6R/840 G3
574005	MLE SC W2/140 T/6R/850 G3
574006	MLE SC W2/140 T/6R/865 G3
574007	MLE SC W2/140 T/12/830 G3
574008	MLE SC W2/140 T/12/840 G3
574009	MLE SC W2/140 T/12/850 G3
574010	MLE SC W2/140 T/12/865 G3
574011	MLE SC W2/140 B/6R/830 G3
574012	MLE SC W2/140 B/6R/840 G3
574013	MLE SC W2/140 B/12/830 G3
574014	MLE SC W2/140 B/12/840 G3
574015	MLE SC W2/140 S/6R/830 G3
574016	MLE SC W2/140 S/6R/840 G3
574017	MLE SC W2/140 S/12/830 G3
574018	MLE SC W2/140 S/12/840 G3

Ref. No.	Type	2D data	3D data
574003	MLE SC W2/140 T/6R/830 G3	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574004	MLE SC W2/140 T/6R/840 G3	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574005	MLE SC W2/140 T/6R/850 G3	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574006	MLE SC W2/140 T/6R/865 G3	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574007	MLE SC W2/140 T/12/830 G3	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574008	MLE SC W2/140 T/12/840 G3	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574009	MLE SC W2/140 T/12/850 G3	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574010	MLE SC W2/140 T/12/865 G3	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574011	MLE SC W2/140 B/6R/830 G3	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574012	MLE SC W2/140 B/6R/840 G3	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574013	MLE SC W2/140 B/12/830 G3	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574014	MLE SC W2/140 B/12/840 G3	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574015	MLE SC W2/140 S/6R/830 G3	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574016	MLE SC W2/140 S/6R/840 G3	2D_MLE_SC_W2-140_x-6R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574017	MLE SC W2/140 S/12/830 G3	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574018	MLE SC W2/140 S/12/840 G3	2D_MLE_SC_W2-140_x-12-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10

LED Line SMD W2 EasyLine Gen.3, 280 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
574123	MLE SC W2/280 S/12R/865 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	4.3 mm	SMD	cool white	6500 K	120°
574019	MLE SC W2/280 T/12R/830 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574020	MLE SC W2/280 T/12R/840 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574021	MLE SC W2/280 T/12R/850 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
574022	MLE SC W2/280 T/12R/865 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574023	MLE SC W2/280 T/24/830 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574024	MLE SC W2/280 T/24/840 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574025	MLE SC W2/280 T/24/850 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
574026	MLE SC W2/280 T/24/865 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574027	MLE SC W2/280 T/36/830 HE G3	36 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574028	MLE SC W2/280 T/36/840 HE G3	36 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574029	MLE SC W2/280 T/36/850 HE G3	36 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
574030	MLE SC W2/280 T/36/865 HE G3	36 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574031	MLE SC W2/280 B/12R/830 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.4 mm	SMD	warm white	3000 K	120°
574032	MLE SC W2/280 B/12R/840 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.4 mm	SMD	neutral white	4000 K	120°
574033	MLE SC W2/280 B/24/830 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.4 mm	SMD	warm white	3000 K	120°
574034	MLE SC W2/280 B/24/840 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.4 mm	SMD	neutral white	4000 K	120°
574036	MLE SC W2/280 B/36/840 HE G3	36 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.4 mm	SMD	neutral white	4000 K	120°
574037	MLE SC W2/280 S/12R/830 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574038	MLE SC W2/280 S/12R/840 G3	12 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574035	MLE SC W2/280 B/36/830 HE G3	36 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	6.4 mm	SMD	warm white	3000 K	120°
574039	MLE SC W2/280 S/24/830 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574040	MLE SC W2/280 S/24/840 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574041	MLE SC W2/280 S/36/830 HE G3	36 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574042	MLE SC W2/280 S/36/840 HE G3	36 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
574123	MLE SC W2/280 S/12R/865 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574019	MLE SC W2/280 T/12R/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574020	MLE SC W2/280 T/12R/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574021	MLE SC W2/280 T/12R/850 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574022	MLE SC W2/280 T/12R/865 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574023	MLE SC W2/280 T/24/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574024	MLE SC W2/280 T/24/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574025	MLE SC W2/280 T/24/850 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574026	MLE SC W2/280 T/24/865 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574027	MLE SC W2/280 T/36/830 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	24 V 24.4 V 24.6 V 24.9 V 25.2 V 25.4 V	3.6 W 4.9 W 6.2 W 7.5 W 8.8 W 10.2 W
574028	MLE SC W2/280 T/36/840 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	24 V 24.4 V 24.6 V 24.9 V 25.2 V 25.4 V	3.6 W 4.9 W 6.2 W 7.5 W 8.8 W 10.2 W
574029	MLE SC W2/280 T/36/850 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	24 V 24.4 V 24.6 V 24.9 V 25.2 V 25.4 V	3.6 W 4.9 W 6.2 W 7.5 W 8.8 W 10.2 W
574030	MLE SC W2/280 T/36/865 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	24 V 24.4 V 24.6 V 24.9 V 25.2 V 25.4 V	3.6 W 4.9 W 6.2 W 7.5 W 8.8 W 10.2 W
574031	MLE SC W2/280 B/12R/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574032	MLE SC W2/280 B/12R/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574033	MLE SC W2/280 B/24/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574034	MLE SC W2/280 B/24/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574036	MLE SC W2/280 B/36/840 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	24 V 24.4 V 24.6 V 24.9 V 25.2 V 25.4 V	3.6 W 4.9 W 6.2 W 7.5 W 8.8 W 10.2 W
574037	MLE SC W2/280 S/12R/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574038	MLE SC W2/280 S/12R/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	10.8 V 11 V 11.2 V 11.3 V	1.6 W 2.2 W 2.8 W 3.4 W
574035	MLE SC W2/280 B/36/830 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	24 V 24.4 V 24.6 V 24.9 V 25.2 V 25.4 V	3.6 W 4.9 W 6.2 W 7.5 W 8.8 W 10.2 W
574039	MLE SC W2/280 S/24/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574040	MLE SC W2/280 S/24/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574041	MLE SC W2/280 S/36/830 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	24 V 24.4 V 24.6 V 24.9 V 25.2 V 25.4 V	3.6 W 4.9 W 6.2 W 7.5 W 8.8 W 10.2 W
574042	MLE SC W2/280 S/36/840 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	24 V 24.4 V 24.6 V 24.9 V 25.2 V 25.4 V	3.6 W 4.9 W 6.2 W 7.5 W 8.8 W 10.2 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
574123	MLE SC W2/280 S/12R/865 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	290 lm 385 lm 480 lm 575 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
574019	MLE SC W2/280 T/12R/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	285 lm 380 lm 470 lm 565 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574020	MLE SC W2/280 T/12R/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	295 lm 395 lm 490 lm 585 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574021	MLE SC W2/280 T/12R/850 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	295 lm 395 lm 490 lm 585 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574022	MLE SC W2/280 T/12R/865 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	290 lm 385 lm 480 lm 575 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
574023	MLE SC W2/280 T/24/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	570 lm 755 lm 940 lm 1125 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574024	MLE SC W2/280 T/24/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	590 lm 785 lm 980 lm 1175 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574025	MLE SC W2/280 T/24/850 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	590 lm 785 lm 980 lm 1175 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574026	MLE SC W2/280 T/24/865 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	580 lm 770 lm 960 lm 1145 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
574027	MLE SC W2/280 T/36/830 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	640 lm 850 lm 1065 lm 1275 lm 1480 lm 1690 lm	178 lm/W 175 lm/W 173 lm/W 170 lm/W 168 lm/W 166 lm/W	80 80 80 80 80 80
574028	MLE SC W2/280 T/36/840 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	665 lm 890 lm 1105 lm 1325 lm 1545 lm 1760 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80
574029	MLE SC W2/280 T/36/850 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	665 lm 890 lm 1105 lm 1325 lm 1545 lm 1760 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80
574030	MLE SC W2/280 T/36/865 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	655 lm 870 lm 1085 lm 1295 lm 1510 lm 1720 lm	181 lm/W 178 lm/W 176 lm/W 173 lm/W 171 lm/W 169 lm/W	80 80 80 80 80 80
574031	MLE SC W2/280 B/12R/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	285 lm 380 lm 470 lm 565 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574032	MLE SC W2/280 B/12R/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	295 lm 395 lm 490 lm 585 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574033	MLE SC W2/280 B/24/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	570 lm 755 lm 940 lm 1125 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574034	MLE SC W2/280 B/24/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	590 lm 785 lm 980 lm 1175 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574036	MLE SC W2/280 B/36/840 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	665 lm 890 lm 1105 lm 1325 lm 1545 lm 1760 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80
574037	MLE SC W2/280 S/12R/830 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	285 lm 380 lm 470 lm 565 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574038	MLE SC W2/280 S/12R/840 G3	12 pcs.	150 mA 200 mA 250 mA 300 mA	295 lm 395 lm 490 lm 585 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574035	MLE SC W2/280 B/36/830 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	640 lm 850 lm 1065 lm 1275 lm 1480 lm 1690 lm	178 lm/W 175 lm/W 173 lm/W 170 lm/W 168 lm/W 166 lm/W	80 80 80 80 80 80
574039	MLE SC W2/280 S/24/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	570 lm 755 lm 940 lm 1125 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574040	MLE SC W2/280 S/24/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	590 lm 785 lm 980 lm 1175 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574041	MLE SC W2/280 S/36/830 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	640 lm 850 lm 1065 lm 1275 lm 1480 lm 1690 lm	178 lm/W 175 lm/W 173 lm/W 170 lm/W 168 lm/W 166 lm/W	80 80 80 80 80 80
574042	MLE SC W2/280 S/36/840 HE G3	36 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	665 lm 890 lm 1105 lm 1325 lm 1545 lm 1760 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
574123	MLE SC W2/280 S/12R/865 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574019	MLE SC W2/280 T/12R/830 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574020	MLE SC W2/280 T/12R/840 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574021	MLE SC W2/280 T/12R/850 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C	72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574022	MLE SC W2/280 T/12R/865 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C	72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574023	MLE SC W2/280 T/24/830 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574024	MLE SC W2/280 T/24/840 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574025	MLE SC W2/280 T/24/850 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574026	MLE SC W2/280 T/24/865 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574027	MLE SC W2/280 T/36/830 HE G3	36 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C	90000 hrs. 90000 hrs. 86000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574028	MLE SC W2/280 T/36/840 HE G3	36 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C	90000 hrs. 90000 hrs. 86000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574029	MLE SC W2/280 T/36/850 HE G3	36 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C	90000 hrs. 86000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574030	MLE SC W2/280 T/36/865 HE G3	36 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	90000 hrs. 90000 hrs. 86000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574031	MLE SC W2/280 B/12R/830 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574032	MLE SC W2/280 B/12R/840 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574033	MLE SC W2/280 B/24/830 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574034	MLE SC W2/280 B/24/840 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574036	MLE SC W2/280 B/36/840 HE G3	36 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	90000 hrs. 86000 hrs. 90000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574037	MLE SC W2/280 S/12R/830 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574038	MLE SC W2/280 S/12R/840 G3	12 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574035	MLE SC W2/280 B/36/830 HE G3	36 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	90000 hrs. 90000 hrs. 86000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574039	MLE SC W2/280 S/24/830 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574040	MLE SC W2/280 S/24/840 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574041	MLE SC W2/280 S/36/830 HE G3	36 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	90000 hrs. 90000 hrs. 86000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574042	MLE SC W2/280 S/36/840 HE G3	36 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	90000 hrs. 90000 hrs. 86000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Ref. No.	Type	LED quantity	EU Declaration of Conformity
574123	MLE SC W2/280 S/12R/865 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574019	MLE SC W2/280 T/12R/830 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574020	MLE SC W2/280 T/12R/840 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574021	MLE SC W2/280 T/12R/850 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574022	MLE SC W2/280 T/12R/865 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574023	MLE SC W2/280 T/24/830 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574024	MLE SC W2/280 T/24/840 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574025	MLE SC W2/280 T/24/850 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574026	MLE SC W2/280 T/24/865 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574027	MLE SC W2/280 T/36/830 HE G3	36 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574028	MLE SC W2/280 T/36/840 HE G3	36 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574029	MLE SC W2/280 T/36/850 HE G3	36 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574030	MLE SC W2/280 T/36/865 HE G3	36 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574031	MLE SC W2/280 B/12R/830 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574032	MLE SC W2/280 B/12R/840 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574033	MLE SC W2/280 B/24/830 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574034	MLE SC W2/280 B/24/840 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574036	MLE SC W2/280 B/36/840 HE G3	36 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574037	MLE SC W2/280 S/12R/830 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574038	MLE SC W2/280 S/12R/840 G3	12 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574035	MLE SC W2/280 B/36/830 HE G3	36 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574039	MLE SC W2/280 S/24/830 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574040	MLE SC W2/280 S/24/840 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574041	MLE SC W2/280 S/36/830 HE G3	36 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574042	MLE SC W2/280 S/36/840 HE G3	36 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf

Ref. No.	Type	LED quantity	2D data	3D data
574123	MLE SC W2/280 S/12R/865 G3	12 pcs.	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLE_SC_W2-280_x-12R-yzz_G3.zip
574019	MLE SC W2/280 T/12R/830 G3	12 pcs.	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLE_SC_W2-280_x-12R-yzz_G3.zip
574020	MLE SC W2/280 T/12R/840 G3	12 pcs.	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLE_SC_W2-280_x-12R-yzz_G3.zip
574021	MLE SC W2/280 T/12R/850 G3	12 pcs.	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLE_SC_W2-280_x-12R-yzz_G3.zip
574022	MLE SC W2/280 T/12R/865 G3	12 pcs.	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLE_SC_W2-280_x-12R-yzz_G3.zip
574023	MLE SC W2/280 T/24/830 G3	24 pcs.	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	3D_MLE_SC_W2-280_x-24-yzz_G3.zip
574024	MLE SC W2/280 T/24/840 G3	24 pcs.	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	3D_MLE_SC_W2-280_x-24-yzz_G3.zip
574025	MLE SC W2/280 T/24/850 G3	24 pcs.	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	3D_MLE_SC_W2-280_x-24-yzz_G3.zip
574026	MLE SC W2/280 T/24/865 G3	24 pcs.	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	3D_MLE_SC_W2-280_x-24-yzz_G3.zip
574027	MLE SC W2/280 T/36/830 HE G3	36 pcs.	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	3D_MLE_SC_W2-280_x-36-yzz_HE_G3.zip
574028	MLE SC W2/280 T/36/840 HE G3	36 pcs.	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	3D_MLE_SC_W2-280_x-36-yzz_HE_G3.zip
574029	MLE SC W2/280 T/36/850 HE G3	36 pcs.	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	3D_MLE_SC_W2-280_x-36-yzz_HE_G3.zip
574030	MLE SC W2/280 T/36/865 HE G3	36 pcs.	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	3D_MLE_SC_W2-280_x-36-yzz_HE_G3.zip
574031	MLE SC W2/280 B/12R/830 G3	12 pcs.	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLE_SC_W2-280_x-12R-yzz_G3.zip
574032	MLE SC W2/280 B/12R/840 G3	12 pcs.	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLE_SC_W2-280_x-12R-yzz_G3.zip
574033	MLE SC W2/280 B/24/830 G3	24 pcs.	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	3D_MLE_SC_W2-280_x-24-yzz_G3.zip
574034	MLE SC W2/280 B/24/840 G3	24 pcs.	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	3D_MLE_SC_W2-280_x-24-yzz_G3.zip
574036	MLE SC W2/280 B/36/840 HE G3	36 pcs.	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	3D_MLE_SC_W2-280_x-36-yzz_HE_G3.zip
574037	MLE SC W2/280 S/12R/830 G3	12 pcs.	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLE_SC_W2-280_x-12R-yzz_G3.zip
574038	MLE SC W2/280 S/12R/840 G3	12 pcs.	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	3D_MLE_SC_W2-280_x-12R-yzz_G3.zip
574035	MLE SC W2/280 B/36/830 HE G3	36 pcs.	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	3D_MLE_SC_W2-280_x-36-yzz_HE_G3.zip
574039	MLE SC W2/280 S/24/830 G3	24 pcs.	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	3D_MLE_SC_W2-280_x-24-yzz_G3.zip
574040	MLE SC W2/280 S/24/840 G3	24 pcs.	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	3D_MLE_SC_W2-280_x-24-yzz_G3.zip
574041	MLE SC W2/280 S/36/830 HE G3	36 pcs.	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	3D_MLE_SC_W2-280_x-36-yzz_HE_G3.zip
574042	MLE SC W2/280 S/36/840 HE G3	36 pcs.	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	3D_MLE_SC_W2-280_x-36-yzz_HE_G3.zip

ldt und ies data
LDC_LED_Line_SMD_W2_Easy_Gen3_W2_Optics.zip

Ref. No.	Type
574123	MLE SC W2/280 S/12R/865 G3
574019	MLE SC W2/280 T/12R/830 G3
574020	MLE SC W2/280 T/12R/840 G3
574021	MLE SC W2/280 T/12R/850 G3
574022	MLE SC W2/280 T/12R/865 G3
574023	MLE SC W2/280 T/24/830 G3
574024	MLE SC W2/280 T/24/840 G3
574025	MLE SC W2/280 T/24/850 G3
574026	MLE SC W2/280 T/24/865 G3
574027	MLE SC W2/280 T/36/830 HE G3
574028	MLE SC W2/280 T/36/840 HE G3
574029	MLE SC W2/280 T/36/850 HE G3
574030	MLE SC W2/280 T/36/865 HE G3
574031	MLE SC W2/280 B/12R/830 G3
574032	MLE SC W2/280 B/12R/840 G3
574033	MLE SC W2/280 B/24/830 G3
574034	MLE SC W2/280 B/24/840 G3
574036	MLE SC W2/280 B/36/840 HE G3
574037	MLE SC W2/280 S/12R/830 G3
574038	MLE SC W2/280 S/12R/840 G3
574035	MLE SC W2/280 B/36/830 HE G3
574039	MLE SC W2/280 S/24/830 G3
574040	MLE SC W2/280 S/24/840 G3
574041	MLE SC W2/280 S/36/830 HE G3
574042	MLE SC W2/280 S/36/840 HE G3

Ref. No.	Type	2D data	3D data
574123	MLE SC W2/280 S/12R/865 G3	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574019	MLE SC W2/280 T/12R/830 G3	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574020	MLE SC W2/280 T/12R/840 G3	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574021	MLE SC W2/280 T/12R/850 G3	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574022	MLE SC W2/280 T/12R/865 G3	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574023	MLE SC W2/280 T/24/830 G3	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574024	MLE SC W2/280 T/24/840 G3	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574025	MLE SC W2/280 T/24/850 G3	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574026	MLE SC W2/280 T/24/865 G3	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574027	MLE SC W2/280 T/36/830 HE G3	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574028	MLE SC W2/280 T/36/840 HE G3	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574029	MLE SC W2/280 T/36/850 HE G3	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574030	MLE SC W2/280 T/36/865 HE G3	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574031	MLE SC W2/280 B/12R/830 G3	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574032	MLE SC W2/280 B/12R/840 G3	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574033	MLE SC W2/280 B/24/830 G3	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574034	MLE SC W2/280 B/24/840 G3	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574036	MLE SC W2/280 B/36/840 HE G3	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574037	MLE SC W2/280 S/12R/830 G3	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574038	MLE SC W2/280 S/12R/840 G3	2D_MLE_SC_W2-280_x-12R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574035	MLE SC W2/280 B/36/830 HE G3	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574039	MLE SC W2/280 S/24/830 G3	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574040	MLE SC W2/280 S/24/840 G3	2D_MLE_SC_W2-280_x-24-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574041	MLE SC W2/280 S/36/830 HE G3	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574042	MLE SC W2/280 S/36/840 HE G3	2D_MLE_SC_W2-280_x-36-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

LED Line SMD W2 EasyLine Gen.3, 560 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
574043	MLE SC W2/560 T/24R/830 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574044	MLE SC W2/560 T/24R/840 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574045	MLE SC W2/560 T/24R/850 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
574046	MLE SC W2/560 T/24R/865 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574047	MLE SC W2/560 T/48/830 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574048	MLE SC W2/560 T/48/840 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574049	MLE SC W2/560 T/48/850 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
574050	MLE SC W2/560 T/48/865 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574051	MLE SC W2/560 T/72/830 HE G3	72 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574052	MLE SC W2/560 T/72/840 HE G3	72 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574053	MLE SC W2/560 T/72/850 HE G3	72 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	cool white	5000 K	120°
574054	MLE SC W2/560 T/72/865 HE G3	72 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574055	MLE SC W2/560 B/24R/830 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.4 mm	SMD	warm white	3000 K	120°
574056	MLE SC W2/560 B/24R/840 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.4 mm	SMD	neutral white	4000 K	120°
574057	MLE SC W2/560 B/48/830 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.4 mm	SMD	warm white	3000 K	120°
574058	MLE SC W2/560 B/48/840 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.4 mm	SMD	neutral white	4000 K	120°
574059	MLE SC W2/560 B/72/830 HE G3	72 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.4 mm	SMD	warm white	3000 K	120°
574060	MLE SC W2/560 B/72/840 HE G3	72 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	6.4 mm	SMD	neutral white	4000 K	120°
574061	MLE SC W2/560 S/24R/830 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574062	MLE SC W2/560 S/24R/840 G3	24 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574063	MLE SC W2/560 S/48/830 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574064	MLE SC W2/560 S/48/840 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574065	MLE SC W2/560 S/72/830 HE G3	72 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574066	MLE SC W2/560 S/72/840 HE G3	72 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	559 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
574043	MLE SC W2/560 T/24R/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574044	MLE SC W2/560 T/24R/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574045	MLE SC W2/560 T/24R/850 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574046	MLE SC W2/560 T/24R/865 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574047	MLE SC W2/560 T/48/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574048	MLE SC W2/560 T/48/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574049	MLE SC W2/560 T/48/850 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574050	MLE SC W2/560 T/48/865 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574051	MLE SC W2/560 T/72/830 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	48.1 V 48.7 V 49.3 V 49.8 V 50.3 V 50.8 V	7.2 W 9.7 W 12.3 W 15 W 17.6 W 20.3 W
574052	MLE SC W2/560 T/72/840 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	48.1 V 48.7 V 49.3 V 49.8 V 50.3 V 50.8 V	7.2 W 9.7 W 12.3 W 15 W 17.6 W 20.3 W
574053	MLE SC W2/560 T/72/850 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	48.1 V 48.7 V 49.3 V 49.8 V 50.3 V 50.8 V	7.2 W 9.7 W 12.3 W 15 W 17.6 W 20.3 W
574054	MLE SC W2/560 T/72/865 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	48.1 V 48.7 V 49.3 V 49.8 V 50.3 V 50.8 V	7.2 W 9.7 W 12.3 W 15 W 17.6 W 20.3 W
574055	MLE SC W2/560 B/24R/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574056	MLE SC W2/560 B/24R/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574057	MLE SC W2/560 B/48/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574058	MLE SC W2/560 B/48/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574059	MLE SC W2/560 B/72/830 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	48.1 V 48.7 V 49.3 V 49.8 V 50.3 V 50.8 V	7.2 W 9.7 W 12.3 W 15 W 17.6 W 20.3 W
574060	MLE SC W2/560 B/72/840 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	48.1 V 48.7 V 49.3 V 49.8 V 50.3 V 50.8 V	7.2 W 9.7 W 12.3 W 15 W 17.6 W 20.3 W
574061	MLE SC W2/560 S/24R/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574062	MLE SC W2/560 S/24R/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	21.7 V 22 V 22.3 V 22.6 V	3.2 W 4.4 W 5.6 W 6.8 W
574063	MLE SC W2/560 S/48/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574064	MLE SC W2/560 S/48/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574065	MLE SC W2/560 S/72/830 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	48.1 V 48.7 V 49.3 V 49.8 V 50.3 V 50.8 V	7.2 W 9.7 W 12.3 W 15 W 17.6 W 20.3 W
574066	MLE SC W2/560 S/72/840 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	48.1 V 48.7 V 49.3 V 49.8 V 50.3 V 50.8 V	7.2 W 9.7 W 12.3 W 15 W 17.6 W 20.3 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
574043	MLE SC W2/560 T/24R/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	570 lm 755 lm 940 lm 1125 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574044	MLE SC W2/560 T/24R/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	590 lm 785 lm 980 lm 1175 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574045	MLE SC W2/560 T/24R/850 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	590 lm 785 lm 980 lm 1175 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574046	MLE SC W2/560 T/24R/865 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	580 lm 770 lm 960 lm 1145 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
574047	MLE SC W2/560 T/48/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1135 lm 1510 lm 1880 lm 2255 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574048	MLE SC W2/560 T/48/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1185 lm 1575 lm 1960 lm 2345 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574049	MLE SC W2/560 T/48/850 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1185 lm 1575 lm 1960 lm 2345 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574050	MLE SC W2/560 T/48/865 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1160 lm 1540 lm 1915 lm 2295 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
574051	MLE SC W2/560 T/72/830 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	1280 lm 1705 lm 2125 lm 2545 lm 2965 lm 3380 lm	178 lm/W 175 lm/W 173 lm/W 170 lm/W 168 lm/W 166 lm/W	80 80 80 80 80 80
574052	MLE SC W2/560 T/72/840 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	1335 lm 1775 lm 2215 lm 2650 lm 3085 lm 3520 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80
574053	MLE SC W2/560 T/72/850 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	1335 lm 1775 lm 2215 lm 2650 lm 3085 lm 3520 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80
574054	MLE SC W2/560 T/72/865 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	1305 lm 1735 lm 2165 lm 2590 lm 3015 lm 3440 lm	181 lm/W 178 lm/W 176 lm/W 173 lm/W 171 lm/W 169 lm/W	80 80 80 80 80 80
574055	MLE SC W2/560 B/24R/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	570 lm 755 lm 940 lm 1125 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574056	MLE SC W2/560 B/24R/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	590 lm 785 lm 980 lm 1175 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574057	MLE SC W2/560 B/48/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1135 lm 1510 lm 1880 lm 2255 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574058	MLE SC W2/560 B/48/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1185 lm 1575 lm 1960 lm 2345 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574059	MLE SC W2/560 B/72/830 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	1280 lm 1705 lm 2125 lm 2545 lm 2965 lm 3380 lm	178 lm/W 175 lm/W 173 lm/W 170 lm/W 168 lm/W 166 lm/W	80 80 80 80 80 80
574060	MLE SC W2/560 B/72/840 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	1335 lm 1775 lm 2215 lm 2650 lm 3085 lm 3520 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80
574061	MLE SC W2/560 S/24R/830 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	570 lm 755 lm 940 lm 1125 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574062	MLE SC W2/560 S/24R/840 G3	24 pcs.	150 mA 200 mA 250 mA 300 mA	590 lm 785 lm 980 lm 1175 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574063	MLE SC W2/560 S/48/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1135 lm 1510 lm 1880 lm 2255 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574064	MLE SC W2/560 S/48/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1185 lm 1575 lm 1960 lm 2345 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574065	MLE SC W2/560 S/72/830 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	1280 lm 1705 lm 2125 lm 2545 lm 2965 lm 3380 lm	178 lm/W 175 lm/W 173 lm/W 170 lm/W 168 lm/W 166 lm/W	80 80 80 80 80 80
574066	MLE SC W2/560 S/72/840 HE G3	72 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	1335 lm 1775 lm 2215 lm 2650 lm 3085 lm 3520 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
574043	MLE SC W2/560 T/24R/830 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574044	MLE SC W2/560 T/24R/840 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C	72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574045	MLE SC W2/560 T/24R/850 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574046	MLE SC W2/560 T/24R/865 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574047	MLE SC W2/560 T/48/830 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574048	MLE SC W2/560 T/48/840 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574049	MLE SC W2/560 T/48/850 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574050	MLE SC W2/560 T/48/865 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574051	MLE SC W2/560 T/72/830 HE G3	72 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C	90000 hrs. 90000 hrs. 86000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574052	MLE SC W2/560 T/72/840 HE G3	72 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C	90000 hrs. 90000 hrs. 86000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574053	MLE SC W2/560 T/72/850 HE G3	72 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C	90000 hrs. 86000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574054	MLE SC W2/560 T/72/865 HE G3	72 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	86000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574055	MLE SC W2/560 B/24R/830 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574056	MLE SC W2/560 B/24R/840 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C	72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574057	MLE SC W2/560 B/48/830 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574058	MLE SC W2/560 B/48/840 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574059	MLE SC W2/560 B/72/830 HE G3	72 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C	90000 hrs. 86000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574060	MLE SC W2/560 B/72/840 HE G3	72 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	90000 hrs. 90000 hrs. 86000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574061	MLE SC W2/560 S/24R/830 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574062	MLE SC W2/560 S/24R/840 G3	24 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574063	MLE SC W2/560 S/48/830 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574064	MLE SC W2/560 S/48/840 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574065	MLE SC W2/560 S/72/830 HE G3	72 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C	86000 hrs. 90000 hrs. 90000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574066	MLE SC W2/560 S/72/840 HE G3	72 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C	90000 hrs. 90000 hrs. 86000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Ref. No.	Type	LED quantity	EU Declaration of Conformity
574043	MLE SC W2/560 T/24R/830 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574044	MLE SC W2/560 T/24R/840 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574045	MLE SC W2/560 T/24R/850 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574046	MLE SC W2/560 T/24R/865 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574047	MLE SC W2/560 T/48/830 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574048	MLE SC W2/560 T/48/840 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574049	MLE SC W2/560 T/48/850 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574050	MLE SC W2/560 T/48/865 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574051	MLE SC W2/560 T/72/830 HE G3	72 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574052	MLE SC W2/560 T/72/840 HE G3	72 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574053	MLE SC W2/560 T/72/850 HE G3	72 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574054	MLE SC W2/560 T/72/865 HE G3	72 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574055	MLE SC W2/560 B/24R/830 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574056	MLE SC W2/560 B/24R/840 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574057	MLE SC W2/560 B/48/830 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574058	MLE SC W2/560 B/48/840 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574059	MLE SC W2/560 B/72/830 HE G3	72 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574060	MLE SC W2/560 B/72/840 HE G3	72 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574061	MLE SC W2/560 S/24R/830 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574062	MLE SC W2/560 S/24R/840 G3	24 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574063	MLE SC W2/560 S/48/830 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574064	MLE SC W2/560 S/48/840 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574065	MLE SC W2/560 S/72/830 HE G3	72 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574066	MLE SC W2/560 S/72/840 HE G3	72 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf

Ref. No.	Type	LED quantity	2D data	3D data
574043	MLE SC W2/560 T/24R/830 G3	24 pcs.	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLE_SC_W2-560_x-24R-yzz_G3.zip
574044	MLE SC W2/560 T/24R/840 G3	24 pcs.	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLE_SC_W2-560_x-24R-yzz_G3.zip
574045	MLE SC W2/560 T/24R/850 G3	24 pcs.	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLE_SC_W2-560_x-24R-yzz_G3.zip
574046	MLE SC W2/560 T/24R/865 G3	24 pcs.	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLE_SC_W2-560_x-24R-yzz_G3.zip
574047	MLE SC W2/560 T/48/830 G3	48 pcs.	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	3D_MLE_SC_W2-560_x-48-yzz_G3.zip
574048	MLE SC W2/560 T/48/840 G3	48 pcs.	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	3D_MLE_SC_W2-560_x-48-yzz_G3.zip
574049	MLE SC W2/560 T/48/850 G3	48 pcs.	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	3D_MLE_SC_W2-560_x-48-yzz_G3.zip
574050	MLE SC W2/560 T/48/865 G3	48 pcs.	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	3D_MLE_SC_W2-560_x-48-yzz_G3.zip
574051	MLE SC W2/560 T/72/830 HE G3	72 pcs.	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	3D_MLE_SC_W2-560_x-72-yzz_HE_G3.zip
574052	MLE SC W2/560 T/72/840 HE G3	72 pcs.	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	3D_MLE_SC_W2-560_x-72-yzz_HE_G3.zip
574053	MLE SC W2/560 T/72/850 HE G3	72 pcs.	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	3D_MLE_SC_W2-560_x-72-yzz_HE_G3.zip
574054	MLE SC W2/560 T/72/865 HE G3	72 pcs.	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	3D_MLE_SC_W2-560_x-72-yzz_HE_G3.zip
574055	MLE SC W2/560 B/24R/830 G3	24 pcs.	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLE_SC_W2-560_x-24R-yzz_G3.zip
574056	MLE SC W2/560 B/24R/840 G3	24 pcs.	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLE_SC_W2-560_x-24R-yzz_G3.zip
574057	MLE SC W2/560 B/48/830 G3	48 pcs.	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	3D_MLE_SC_W2-560_x-48-yzz_G3.zip
574058	MLE SC W2/560 B/48/840 G3	48 pcs.	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	3D_MLE_SC_W2-560_x-48-yzz_G3.zip
574059	MLE SC W2/560 B/72/830 HE G3	72 pcs.	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	3D_MLE_SC_W2-560_x-72-yzz_HE_G3.zip
574060	MLE SC W2/560 B/72/840 HE G3	72 pcs.	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	3D_MLE_SC_W2-560_x-72-yzz_HE_G3.zip
574061	MLE SC W2/560 S/24R/830 G3	24 pcs.	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLE_SC_W2-560_x-24R-yzz_G3.zip
574062	MLE SC W2/560 S/24R/840 G3	24 pcs.	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	3D_MLE_SC_W2-560_x-24R-yzz_G3.zip
574063	MLE SC W2/560 S/48/830 G3	48 pcs.	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	3D_MLE_SC_W2-560_x-48-yzz_G3.zip
574064	MLE SC W2/560 S/48/840 G3	48 pcs.	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	3D_MLE_SC_W2-560_x-48-yzz_G3.zip
574065	MLE SC W2/560 S/72/830 HE G3	72 pcs.	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	3D_MLE_SC_W2-560_x-72-yzz_HE_G3.zip
574066	MLE SC W2/560 S/72/840 HE G3	72 pcs.	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	3D_MLE_SC_W2-560_x-72-yzz_HE_G3.zip

ldt und ies data
LDC_LED_Line_SMD_W2_Easy_Gen3_W2_Optics.zip

Ref. No.	Type
574043	MLE SC W2/560 T/24R/830 G3
574044	MLE SC W2/560 T/24R/840 G3
574045	MLE SC W2/560 T/24R/850 G3
574046	MLE SC W2/560 T/24R/865 G3
574047	MLE SC W2/560 T/48/830 G3
574048	MLE SC W2/560 T/48/840 G3
574049	MLE SC W2/560 T/48/850 G3
574050	MLE SC W2/560 T/48/865 G3
574051	MLE SC W2/560 T/72/830 HE G3
574052	MLE SC W2/560 T/72/840 HE G3
574053	MLE SC W2/560 T/72/850 HE G3
574054	MLE SC W2/560 T/72/865 HE G3
574055	MLE SC W2/560 B/24R/830 G3
574056	MLE SC W2/560 B/24R/840 G3
574057	MLE SC W2/560 B/48/830 G3
574058	MLE SC W2/560 B/48/840 G3
574059	MLE SC W2/560 B/72/830 HE G3
574060	MLE SC W2/560 B/72/840 HE G3
574061	MLE SC W2/560 S/24R/830 G3
574062	MLE SC W2/560 S/24R/840 G3
574063	MLE SC W2/560 S/48/830 G3
574064	MLE SC W2/560 S/48/840 G3
574065	MLE SC W2/560 S/72/830 HE G3
574066	MLE SC W2/560 S/72/840 HE G3

Ref. No.	Type	2D data	3D data
574043	MLE SC W2/560 T/24R/830 G3	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574044	MLE SC W2/560 T/24R/840 G3	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574045	MLE SC W2/560 T/24R/850 G3	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574046	MLE SC W2/560 T/24R/865 G3	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574047	MLE SC W2/560 T/48/830 G3	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574048	MLE SC W2/560 T/48/840 G3	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574049	MLE SC W2/560 T/48/850 G3	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574050	MLE SC W2/560 T/48/865 G3	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574051	MLE SC W2/560 T/72/830 HE G3	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574052	MLE SC W2/560 T/72/840 HE G3	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574053	MLE SC W2/560 T/72/850 HE G3	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574054	MLE SC W2/560 T/72/865 HE G3	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574055	MLE SC W2/560 B/24R/830 G3	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574056	MLE SC W2/560 B/24R/840 G3	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574057	MLE SC W2/560 B/48/830 G3	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574058	MLE SC W2/560 B/48/840 G3	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574059	MLE SC W2/560 B/72/830 HE G3	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574060	MLE SC W2/560 B/72/840 HE G3	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574061	MLE SC W2/560 S/24R/830 G3	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574062	MLE SC W2/560 S/24R/840 G3	2D_MLE_SC_W2-560_x-24R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574063	MLE SC W2/560 S/48/830 G3	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574064	MLE SC W2/560 S/48/840 G3	2D_MLE_SC_W2-560_x-48-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574065	MLE SC W2/560 S/72/830 HE G3	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574066	MLE SC W2/560 S/72/840 HE G3	2D_MLE_SC_W2-560_x-72-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

LED Line SMD W2 EasyLine Gen.3, 1120 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
574067	MLE SC W2/1120 T/48R/830 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	5.5 mm	20 mm	SMD	warm white	3000 K	120°
574068	MLE SC W2/1120 T/48R/840 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	5.5 mm	20 mm	SMD	neutral white	4000 K	120°
574069	MLE SC W2/1120 T/48R/850 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	5.5 mm	20 mm	SMD	cool white	5000 K	120°
574070	MLE SC W2/1120 T/48R/865 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	5.5 mm	20 mm	SMD	cool white	6500 K	120°
574071	MLE SC W2/1120 T/96/830 G3	96 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	5.5 mm	SMD	warm white	3000 K	120°
574072	MLE SC W2/1120 T/96/840 G3	96 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	5.5 mm	SMD	neutral white	4000 K	120°
574073	MLE SC W2/1120 T/96/850 G3	96 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	5.5 mm	SMD	cool white	5000 K	120°
574074	MLE SC W2/1120 B/96/865 G3	96 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574075	MLE SC W2/1120 T/144/830 HE G3	144 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	5.5 mm	SMD	warm white	3000 K	120°
574076	MLE SC W2/1120 T/144/840 HE G3	144 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	5.5 mm	SMD	neutral white	4000 K	120°
574077	MLE SC W2/1120 T/144/850 HE G3	144 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	5.5 mm	SMD	cool white	5000 K	120°
574078	MLE SC W2/1120 B/144/865 HE G3	144 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	6.1 mm	SMD	cool white	6500 K	120°
574079	MLE SC W2/1120 B/48R/830 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	6.4 mm	20 mm	SMD	warm white	3000 K	120°
574080	MLE SC W2/1120 B/48R/840 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	6.4 mm	20 mm	SMD	neutral white	4000 K	120°
574081	MLE SC W2/1120 B/96/830 G3	96 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574082	MLE SC W2/1120 B/96/840 G3	96 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574083	MLE SC W2/1120 B/144/830 HE G3	144 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	6.1 mm	SMD	warm white	3000 K	120°
574084	MLE SC W2/1120 B/144/840 HE G3	144 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	6.1 mm	SMD	neutral white	4000 K	120°
574085	MLE SC W2/1120 S/48R/830 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	3.7 mm	20 mm	SMD	warm white	3000 K	120°
574086	MLE SC W2/1120 S/48R/840 G3	48 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	3.7 mm	20 mm	SMD	neutral white	4000 K	120°
574087	MLE SC W2/1120 S/96/830 G3	96 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	3.7 mm	SMD	warm white	3000 K	120°
574088	MLE SC W2/1120 S/96/840 G3	96 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	3.7 mm	SMD	neutral white	4000 K	120°
574089	MLE SC W2/1120 S/144/830 HE G3	144 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	3.7 mm	SMD	warm white	3000 K	120°
574090	MLE SC W2/1120 S/144/840 HE G3	144 pcs.	LED-Line-SMD_W2_Easy_Gen. 3_EN.pdf	1119 mm	20 mm	3.7 mm	SMD	neutral white	4000 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
574067	MLE SC W2/1120 T/48R/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574068	MLE SC W2/1120 T/48R/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574069	MLE SC W2/1120 T/48R/850 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574070	MLE SC W2/1120 T/48R/865 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574071	MLE SC W2/1120 T/96/830 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	86.6 V 88 V 89.2 V 90.3 V	13 W 17.6 W 22.3 W 27.1 W
574072	MLE SC W2/1120 T/96/840 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	86.6 V 88 V 89.2 V 90.3 V	13 W 17.6 W 22.3 W 27.1 W
574073	MLE SC W2/1120 T/96/850 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	86.6 V 88 V 89.2 V 90.3 V	13 W 17.6 W 22.3 W 27.1 W
574074	MLE SC W2/1120 B/96/865 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	86.6 V 88 V 89.2 V 90.3 V	13 W 17.6 W 22.3 W 27.1 W
574075	MLE SC W2/1120 T/144/830 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	96.1 V 97.4 V 98.6 V 99.7 V 100.7 V 101.6 V	14.4 W 19.5 W 24.6 W 29.9 W 35.2 W 40.7 W
574076	MLE SC W2/1120 T/144/840 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	96.1 V 97.4 V 98.6 V 99.7 V 100.7 V 101.6 V	14.4 W 19.5 W 24.6 W 29.9 W 35.2 W 40.7 W
574077	MLE SC W2/1120 T/144/850 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	96.1 V 97.4 V 98.6 V 99.7 V 100.7 V 101.6 V	14.4 W 19.5 W 24.6 W 29.9 W 35.2 W 40.7 W
574078	MLE SC W2/1120 B/144/865 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	96.1 V 97.4 V 98.6 V 99.7 V 100.7 V 101.6 V	14.4 W 19.5 W 24.6 W 29.9 W 35.2 W 40.7 W
574079	MLE SC W2/1120 B/48R/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574080	MLE SC W2/1120 B/48R/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574081	MLE SC W2/1120 B/96/830 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	86.6 V 88 V 89.2 V 90.3 V	13 W 17.6 W 22.3 W 27.1 W
574082	MLE SC W2/1120 B/96/840 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	86.6 V 88 V 89.2 V 90.3 V	13 W 17.6 W 22.3 W 27.1 W
574083	MLE SC W2/1120 B/144/830 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	96.1 V 97.4 V 98.6 V 99.7 V 100.7 V 101.6 V	14.4 W 19.5 W 24.6 W 29.9 W 35.2 W 40.7 W
574084	MLE SC W2/1120 B/144/840 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	96.1 V 97.4 V 98.6 V 99.7 V 100.7 V 101.6 V	14.4 W 19.5 W 24.6 W 29.9 W 35.2 W 40.7 W
574085	MLE SC W2/1120 S/48R/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574086	MLE SC W2/1120 S/48R/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	43.3 V 44 V 44.6 V 45.2 V	6.5 W 8.8 W 11.2 W 13.6 W
574087	MLE SC W2/1120 S/96/830 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	86.6 V 88 V 89.2 V 90.3 V	13 W 17.6 W 22.3 W 27.1 W
574088	MLE SC W2/1120 S/96/840 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	86.6 V 88 V 89.2 V 90.3 V	13 W 17.6 W 22.3 W 27.1 W
574089	MLE SC W2/1120 S/144/830 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	96.1 V 97.4 V 98.6 V 99.7 V 100.7 V 101.6 V	14.4 W 19.5 W 24.6 W 29.9 W 35.2 W 40.7 W
574090	MLE SC W2/1120 S/144/840 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	96.1 V 97.4 V 98.6 V 99.7 V 100.7 V 101.6 V	14.4 W 19.5 W 24.6 W 29.9 W 35.2 W 40.7 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
574067	MLE SC W2/1120 T/48R/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1135 lm 1510 lm 1880 lm 2255 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574068	MLE SC W2/1120 T/48R/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1185 lm 1575 lm 1960 lm 2345 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574069	MLE SC W2/1120 T/48R/850 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1185 lm 1575 lm 1960 lm 2345 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574070	MLE SC W2/1120 T/48R/865 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1160 lm 1540 lm 1915 lm 2295 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
574071	MLE SC W2/1120 T/96/830 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	2275 lm 3020 lm 3765 lm 4505 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574072	MLE SC W2/1120 T/96/840 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	2365 lm 3145 lm 3920 lm 4690 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574073	MLE SC W2/1120 T/96/850 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	2365 lm 3145 lm 3920 lm 4690 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574074	MLE SC W2/1120 B/96/865 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	2315 lm 3075 lm 3835 lm 4590 lm	178 lm/W 175 lm/W 172 lm/W 169 lm/W	80 80 80 80
574075	MLE SC W2/1120 T/144/830 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	2565 lm 3410 lm 4250 lm 5090 lm 5925 lm 6760 lm	178 lm/W 175 lm/W 173 lm/W 170 lm/W 168 lm/W 166 lm/W	80 80 80 80 80 80
574076	MLE SC W2/1120 T/144/840 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	2670 lm 3550 lm 4430 lm 5300 lm 6170 lm 7040 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80
574077	MLE SC W2/1120 T/144/850 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	2670 lm 3550 lm 4430 lm 5300 lm 6170 lm 7040 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80
574078	MLE SC W2/1120 B/144/865 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	2610 lm 3475 lm 4330 lm 5185 lm 6035 lm 6885 lm	181 lm/W 178 lm/W 176 lm/W 173 lm/W 171 lm/W 169 lm/W	80 80 80 80 80 80
574079	MLE SC W2/1120 B/48R/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1135 lm 1510 lm 1880 lm 2255 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574080	MLE SC W2/1120 B/48R/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1185 lm 1575 lm 1960 lm 2345 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574081	MLE SC W2/1120 B/96/830 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	2275 lm 3020 lm 3765 lm 4505 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574082	MLE SC W2/1120 B/96/840 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	2365 lm 3145 lm 3920 lm 4690 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574083	MLE SC W2/1120 B/144/830 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	2565 lm 3410 lm 4250 lm 5090 lm 5925 lm 6760 lm	178 lm/W 175 lm/W 173 lm/W 170 lm/W 168 lm/W 166 lm/W	80 80 80 80 80 80
574084	MLE SC W2/1120 B/144/840 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	2670 lm 3550 lm 4430 lm 5300 lm 6170 lm 7040 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80
574085	MLE SC W2/1120 S/48R/830 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1135 lm 1510 lm 1880 lm 2255 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574086	MLE SC W2/1120 S/48R/840 G3	48 pcs.	150 mA 200 mA 250 mA 300 mA	1185 lm 1575 lm 1960 lm 2345 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574087	MLE SC W2/1120 S/96/830 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	2275 lm 3020 lm 3765 lm 4505 lm	175 lm/W 172 lm/W 169 lm/W 166 lm/W	80 80 80 80
574088	MLE SC W2/1120 S/96/840 G3	96 pcs.	150 mA 200 mA 250 mA 300 mA	2365 lm 3145 lm 3920 lm 4690 lm	182 lm/W 179 lm/W 176 lm/W 173 lm/W	80 80 80 80
574089	MLE SC W2/1120 S/144/830 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	2565 lm 3410 lm 4250 lm 5090 lm 5925 lm 6760 lm	178 lm/W 175 lm/W 173 lm/W 170 lm/W 168 lm/W 166 lm/W	80 80 80 80 80 80
574090	MLE SC W2/1120 S/144/840 HE G3	144 pcs.	150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	2670 lm 3550 lm 4430 lm 5300 lm 6170 lm 7040 lm	185 lm/W 182 lm/W 180 lm/W 177 lm/W 175 lm/W 173 lm/W	80 80 80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
574067	MLE SC W2/1120 T/48R/830 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574068	MLE SC W2/1120 T/48R/840 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574069	MLE SC W2/1120 T/48R/850 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574070	MLE SC W2/1120 T/48R/865 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574071	MLE SC W2/1120 T/96/830 G3	96 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	57000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574072	MLE SC W2/1120 T/96/840 G3	96 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574073	MLE SC W2/1120 T/96/850 G3	96 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574074	MLE SC W2/1120 B/96/865 G3	96 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574075	MLE SC W2/1120 T/144/830 HE G3	144 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	90000 hrs. 86000 hrs. 90000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574076	MLE SC W2/1120 T/144/840 HE G3	144 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C	90000 hrs. 90000 hrs. 86000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574077	MLE SC W2/1120 T/144/850 HE G3	144 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C	86000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574078	MLE SC W2/1120 B/144/865 HE G3	144 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	86000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574079	MLE SC W2/1120 B/48R/830 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C	72000 hrs. 57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574080	MLE SC W2/1120 B/48R/840 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574081	MLE SC W2/1120 B/96/830 G3	96 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574082	MLE SC W2/1120 B/96/840 G3	96 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574083	MLE SC W2/1120 B/144/830 HE G3	144 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	90000 hrs. 86000 hrs. 90000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574084	MLE SC W2/1120 B/144/840 HE G3	144 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C	90000 hrs. 90000 hrs. 86000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 55000 hrs. 72000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574085	MLE SC W2/1120 S/48R/830 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C	72000 hrs. 57000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574086	MLE SC W2/1120 S/48R/840 G3	48 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574087	MLE SC W2/1120 S/96/830 G3	96 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	72000 hrs. 72000 hrs. 57000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574088	MLE SC W2/1120 S/96/840 G3	96 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA	80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	57000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
574089	MLE SC W2/1120 S/144/830 HE G3	144 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	90000 hrs. 90000 hrs. 86000 hrs. 72000 hrs. 56000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574090	MLE SC W2/1120 S/144/840 HE G3	144 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 300 mA 350 mA 400 mA	80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C	86000 hrs. 90000 hrs. 90000 hrs. 72000 hrs. 72000 hrs. 56000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 55000 hrs. 72000 hrs. 55000 hrs. 72000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Ref. No.	Type	LED quantity	EU Declaration of Conformity
574067	MLE SC W2/1120 T/48R/830 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574068	MLE SC W2/1120 T/48R/840 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574069	MLE SC W2/1120 T/48R/850 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574070	MLE SC W2/1120 T/48R/865 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574071	MLE SC W2/1120 T/96/830 G3	96 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574072	MLE SC W2/1120 T/96/840 G3	96 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574073	MLE SC W2/1120 T/96/850 G3	96 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574074	MLE SC W2/1120 B/96/865 G3	96 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574075	MLE SC W2/1120 T/144/830 HE G3	144 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574076	MLE SC W2/1120 T/144/840 HE G3	144 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574077	MLE SC W2/1120 T/144/850 HE G3	144 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574078	MLE SC W2/1120 B/144/865 HE G3	144 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574079	MLE SC W2/1120 B/48R/830 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574080	MLE SC W2/1120 B/48R/840 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574081	MLE SC W2/1120 B/96/830 G3	96 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574082	MLE SC W2/1120 B/96/840 G3	96 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574083	MLE SC W2/1120 B/144/830 HE G3	144 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574084	MLE SC W2/1120 B/144/840 HE G3	144 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574085	MLE SC W2/1120 S/48R/830 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574086	MLE SC W2/1120 S/48R/840 G3	48 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574087	MLE SC W2/1120 S/96/830 G3	96 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574088	MLE SC W2/1120 S/96/840 G3	96 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574089	MLE SC W2/1120 S/144/830 HE G3	144 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf
574090	MLE SC W2/1120 S/144/840 HE G3	144 pcs.	EU Declaration of Conformity Module LED Line SMD W2 Comfort Gen. 3 High Reliability-Efficacy_AS_MS.pdf EU Declaration of Conformity Module LED Line SMD W2 EasyLine Gen. 3.pdf

Ref. No.	Type	LED quantity	2D data	3D data
574067	MLE SC W2/1120 T/48R/830 G3	48 pcs.	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-48R-yzz_G3.zip
574068	MLE SC W2/1120 T/48R/840 G3	48 pcs.	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-48R-yzz_G3.zip
574069	MLE SC W2/1120 T/48R/850 G3	48 pcs.	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-48R-yzz_G3.zip
574070	MLE SC W2/1120 T/48R/865 G3	48 pcs.	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-48R-yzz_G3.zip
574071	MLE SC W2/1120 T/96/830 G3	96 pcs.	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-96-yzz_G3.zip
574072	MLE SC W2/1120 T/96/840 G3	96 pcs.	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-96-yzz_G3.zip
574073	MLE SC W2/1120 T/96/850 G3	96 pcs.	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-96-yzz_G3.zip
574074	MLE SC W2/1120 B/96/865 G3	96 pcs.	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-96-yzz_G3.zip
574075	MLE SC W2/1120 T/144/830 HE G3	144 pcs.	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	3D_MLE_SC_W2-1120_x-144-yzz_HE_G3.zip
574076	MLE SC W2/1120 T/144/840 HE G3	144 pcs.	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	3D_MLE_SC_W2-1120_x-144-yzz_HE_G3.zip
574077	MLE SC W2/1120 T/144/850 HE G3	144 pcs.	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	3D_MLE_SC_W2-1120_x-144-yzz_HE_G3.zip
574078	MLE SC W2/1120 B/144/865 HE G3	144 pcs.	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	3D_MLE_SC_W2-1120_x-144-yzz_HE_G3.zip
574079	MLE SC W2/1120 B/48R/830 G3	48 pcs.	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-48R-yzz_G3.zip
574080	MLE SC W2/1120 B/48R/840 G3	48 pcs.	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-48R-yzz_G3.zip
574081	MLE SC W2/1120 B/96/830 G3	96 pcs.	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-96-yzz_G3.zip
574082	MLE SC W2/1120 B/96/840 G3	96 pcs.	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-96-yzz_G3.zip
574083	MLE SC W2/1120 B/144/830 HE G3	144 pcs.	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	3D_MLE_SC_W2-1120_x-144-yzz_HE_G3.zip
574084	MLE SC W2/1120 B/144/840 HE G3	144 pcs.	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	3D_MLE_SC_W2-1120_x-144-yzz_HE_G3.zip
574085	MLE SC W2/1120 S/48R/830 G3	48 pcs.	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-48R-yzz_G3.zip
574086	MLE SC W2/1120 S/48R/840 G3	48 pcs.	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-48R-yzz_G3.zip
574087	MLE SC W2/1120 S/96/830 G3	96 pcs.	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-96-yzz_G3.zip
574088	MLE SC W2/1120 S/96/840 G3	96 pcs.	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	3D_MLE_SC_W2-1120_x-96-yzz_G3.zip
574089	MLE SC W2/1120 S/144/830 HE G3	144 pcs.	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	3D_MLE_SC_W2-1120_x-144-yzz_HE_G3.zip
574090	MLE SC W2/1120 S/144/840 HE G3	144 pcs.	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	3D_MLE_SC_W2-1120_x-144-yzz_HE_G3.zip

ldt und ies data
LDC_LED_Line_SMD_W2_Easy_Gen3_W2_Optics.zip

Ref. No.	Type
574067	MLE SC W2/1120 T/48R/830 G3
574068	MLE SC W2/1120 T/48R/840 G3
574069	MLE SC W2/1120 T/48R/850 G3
574070	MLE SC W2/1120 T/48R/865 G3
574071	MLE SC W2/1120 T/96/830 G3
574072	MLE SC W2/1120 T/96/840 G3
574073	MLE SC W2/1120 T/96/850 G3
574074	MLE SC W2/1120 B/96/865 G3
574075	MLE SC W2/1120 T/144/830 HE G3
574076	MLE SC W2/1120 T/144/840 HE G3
574077	MLE SC W2/1120 T/144/850 HE G3
574078	MLE SC W2/1120 B/144/865 HE G3
574079	MLE SC W2/1120 B/48R/830 G3
574080	MLE SC W2/1120 B/48R/840 G3
574081	MLE SC W2/1120 B/96/830 G3
574082	MLE SC W2/1120 B/96/840 G3
574083	MLE SC W2/1120 B/144/830 HE G3
574084	MLE SC W2/1120 B/144/840 HE G3
574085	MLE SC W2/1120 S/48R/830 G3
574086	MLE SC W2/1120 S/48R/840 G3
574087	MLE SC W2/1120 S/96/830 G3
574088	MLE SC W2/1120 S/96/840 G3
574089	MLE SC W2/1120 S/144/830 HE G3
574090	MLE SC W2/1120 S/144/840 HE G3

Ref. No.	Type	2D data	3D data
574067	MLE SC W2/1120 T/48R/830 G3	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574068	MLE SC W2/1120 T/48R/840 G3	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574069	MLE SC W2/1120 T/48R/850 G3	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574070	MLE SC W2/1120 T/48R/865 G3	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574071	MLE SC W2/1120 T/96/830 G3	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574072	MLE SC W2/1120 T/96/840 G3	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574073	MLE SC W2/1120 T/96/850 G3	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574074	MLE SC W2/1120 B/96/865 G3	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574075	MLE SC W2/1120 T/144/830 HE G3	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574076	MLE SC W2/1120 T/144/840 HE G3	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574077	MLE SC W2/1120 T/144/850 HE G3	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574078	MLE SC W2/1120 B/144/865 HE G3	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574079	MLE SC W2/1120 B/48R/830 G3	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574080	MLE SC W2/1120 B/48R/840 G3	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574081	MLE SC W2/1120 B/96/830 G3	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574082	MLE SC W2/1120 B/96/840 G3	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574083	MLE SC W2/1120 B/144/830 HE G3	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574084	MLE SC W2/1120 B/144/840 HE G3	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574085	MLE SC W2/1120 S/48R/830 G3	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574086	MLE SC W2/1120 S/48R/840 G3	2D_MLE_SC_W2-1120_x-48R-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574087	MLE SC W2/1120 S/96/830 G3	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574088	MLE SC W2/1120 S/96/840 G3	2D_MLE_SC_W2-1120_x-96-yzz_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10
574089	MLE SC W2/1120 S/144/830 HE G3	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574090	MLE SC W2/1120 S/144/840 HE G3	2D_MLE_SC_W2-1120_x-144-yzz_HE_G3.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Contact

LED Line SMD W2 EasyLine Gen.3

LED modules for linear lighting applications

Product benefits

Choose a variant:

LED Line SMD W2 EasyLine Gen.3, 70 mm

General data

Electrical operating data

Optical operating data

Lifetime

LED Line SMD W2 EasyLine Gen.3, 140 mm

General data

Electrical operating data

Optical operating data

Lifetime

LED Line SMD W2 EasyLine Gen.3, 280 mm

General data

Electrical operating data

Optical operating data

Lifetime

LED Line SMD W2 EasyLine Gen.3, 560 mm

General data

Electrical operating data

Optical operating data

Lifetime

LED Line SMD W2 EasyLine Gen.3, 1120 mm

General data

Electrical operating data

Optical operating data

Lifetime

Contact

CREE

Nichia

Complementary secondary optics
