EasyLine DIP switch UIT-230
For 230 V track lighting systems

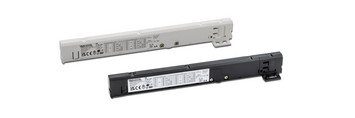

Adapter with integrated LED driver and individual setting of output current via DIP switch. Available in two different casing colours: white and black.
Product benefits
- Compatible with different 3-phase track systems
- Complete integration of the LED driver into the track rail
- High-efficiency: up to 92,5%
- Product guarantee: 5 years
- SELV
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100.000 hrs.
Choose a variant:
EasyLine DIP switch UIT-230
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary - secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187773 | ECXe1050.854 | 40 W | SELV | 230 mm | 30 mm | 26.3 mm | 93 g | |
| 187774 | ECXe1050.854 | 40 W | SELV | 230 mm | 30 mm | 26.3 mm | 93 g |
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|---|
| 187773 | ECXe1050.854 | 40 W |
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
|
42 V
42 V
42 V
42 V
42 V
42 V
42 V
42 V
42 V
42 V
42 V
40 V
40 V
40 V
40 V
38 V
|
3 % | < 0.4 | DIP switch | -5 % | 5 % | |
| 187774 | ECXe1050.854 | 40 W |
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
|
42 V
42 V
42 V
42 V
42 V
42 V
42 V
42 V
42 V
42 V
42 V
40 V
40 V
40 V
40 V
38 V
|
3 % | < 0.4 | DIP switch | -5 % | 5 % |
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187773 | ECXe1050.854 | 40 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 190 mA | 0.99 | 0.92 | 6 % | no standby operation possible | no load operation not intended | 14 A | 25 µs | 300 ms |
| 187774 | ECXe1050.854 | 40 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 190 mA | 0.99 | 0.92 | 6 % | no standby operation possible | no load operation not intended | 14 A | 25 µs | 300 ms |
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187773 | ECXe1050.854 | 40 W |
| 187774 | ECXe1050.854 | 40 W |
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | DALI power supply switchable | Min. dimming level | Max. dimming level |
|---|---|---|---|---|---|---|---|
| 187773 | ECXe1050.854 | 40 W | No | No | No | 100 % | 100 % |
| 187774 | ECXe1050.854 | 40 W | No | No | No | 100 % | 100 % |
| Ref. No. | Type | Max. output power at AC operation | Isolation primary - secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187773 | ECXe1050.854 | 40 W | SELV | 59 V | 2 kV | 4 kV | 0.2 mA |
| 187774 | ECXe1050.854 | 40 W | SELV | 59 V | 2 kV | 4 kV | 0.2 mA |
| Ref. No. | Type | Max. output power at AC operation | EU Declaration of Conformity | CB certificate | ENEC certificate |
|---|---|---|---|---|---|
| 187773 | ECXe1050.854 | 40 W | |||
| 187774 | ECXe1050.854 | 40 W |
| Ref. No. | Type | Max. output power at AC operation | 2D data | 3D data |
|---|---|---|---|---|
| 187773 | ECXe1050.854 | 40 W | ||
| 187774 | ECXe1050.854 | 40 W |
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187773 | ECXe1050.854 | 40 W |
| 187774 | ECXe1050.854 | 40 W |
| Ref. No. | Type | Prüfzeichen | Prüfzertifikate |
|---|---|---|---|
| 187773 | ECXe1050.854 | ||
| 187774 | ECXe1050.854 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 187773 | ECXe1050.854 |
|
|
| 187774 | ECXe1050.854 |
|
