Linear Covers 1R for COB W1.8


Linear 1-row covers for aluminium profiles

Due to brilliant surfaces and clear or diffuse materials the optics made of high-quality PMMA offer a variety of usage in application fields of industry, retail, corridor and shelf lighting. The covers are being fixed by simply clipping them onto aluminium profiles. Possible lenghts up to five feet with additional endcap enable luminaires with lenghts of 1.5 m or continuous trunking lights without interruptions.

Product benefits

  • Homogeneous illumination
  • Screwless clip fixation
  • UV-resistance
  • Variants with Constant Light Colour (CLC) available
  • Variants with end caps available, for luminaire protection class IP40
  • Optical efficiency: up to 97%

Choose a variant:

Linear Covers 1R for COB W1.8 AluFix

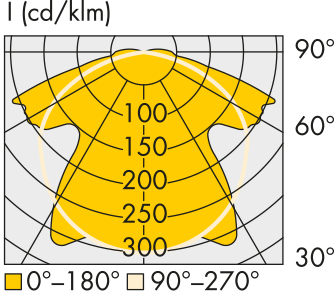

Ref. No. Type Light distribution Material Light transmission Surface texture Length Width Height LED technology
553447 89005 PMMA clear high-glossy 1397mm 36.6mm 13.2mm SMD and COB
553752 89003 PMMA clear high-glossy 835mm 36.6mm 13.2mm SMD and COB
553753 89004 PMMA clear high-glossy 1116mm 36.6mm 13.2mm SMD and COB
554123 89003 PMMA diffuse high-glossy 835mm 36.6mm 13.2mm SMD and COB
554124 89004 PMMA diffuse high-glossy 1116mm 36.6mm 13.2mm SMD and COB
554125 89005 PMMA diffuse high-glossy 1397mm 36.6mm 13.2mm SMD and COB
569250 890 PMMA clear high-glossy 2500mm 36.6mm 13.2mm SMD and COB
569829 890 PMMA diffuse high-glossy 2500mm 36.6mm 13.2mm SMD and COB
554124 89004 PMMA diffuse high-glossy 1116mm 36.6mm 13.2mm SMD and COB
Ref. No. Type Light distribution
553447 89005
553752 89003
553753 89004
554123 89003
554124 89004
554125 89005
569250 890
569829 890
554124 89004
Ref. No. Type Light distribution
553447 89005
553752 89003
553753 89004
554123 89003
554124 89004
554125 89005
569250 890
569829 890
554124 89004
Ref. No. Type Light distribution
553447 89005
553752 89003
553753 89004
554123 89003
554124 89004
554125 89005
569250 890
569829 890
554124 89004
Ref. No. Type Light distribution
553447 89005
553752 89003
553753 89004
554123 89003
554124 89004
554125 89005
569250 890
569829 890
554124 89004
Ref. No. Type
553447 89005
553752 89003
553753 89004
554123 89003
554124 89004
554125 89005
569250 890
569829 890
554124 89004
Ref. No. Type 2D data 3D data
553447 89005
553752 89003
553753 89004
554123 89003
554124 89004
554125 89005
569250 890
569829 890
554124 89004
