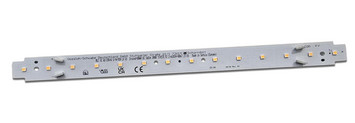

LED Line SMD W2 Light&Dark Mini

LED modules for linear lighting applications

Dedicated LED module design optimized for the Optics 1R Light&Dark Mini optic system. With a width of only 2 mm, the module enables extremely slim luminaire designs. The LED module is available with a white PCB and can be supplied in both SELV and non-SELV versions.

Product benefits

'Available in CRI 80 and CRI 90
'Available in SELV and non-SELV versions
Available in various color temperatures from 2700 K to 6500 K
Compact design with a width of only 2 mm
Narrow colour tolerance: 3-step MacAdam
Optimized for VS 1R Light&Dark Mini optic
Product guarantee: 5 years

Efficiency: up to 209 lm/W

Long service life: up to 93.000 hrs.

Find system solution!

Choose a variant:

LED Line SMD W2 Light&Dark Mini, 280 mm

LED Line SMD W2 Light&Dark Mini, 280 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
574563	MLC SC W2/280/W S/14/827 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	2700 K	120°
574564	MLC SC W2/280/W S/14/830 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574565	MLC SC W2/280/W S/14/835 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	3500 K	120°
574566	MLC SC W2/280/W S/14/840 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574567	MLC SC W2/280/W S/14/850 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	5000 K	120°
574568	MLC SC W2/280/W S/14/865 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	cool white	6500 K	120°
574569	MLC SC W2/280/W S/14/827 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	2700 K	120°
574570	MLC SC W2/280/W S/14/830 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574571	MLC SC W2/280/W S/14/835 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	3500 K	120°
574572	MLC SC W2/280/W S/14/840 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574576	MLC SC W2/280/W S/14/930 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574578	MLC SC W2/280/W S/14/940 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574582	MLC SC W2/280/W S/14/930 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
574584	MLC SC W2/280/W S/14/940 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
574573	MLC SC W2/280/W S/14/850 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	5000 K	120°
574574	MLC SC W2/280/W S/14/865 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	cool white	6500 K	120°
574575	MLC SC W2/280/W S/14/927 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	2700 K	120°
574577	MLC SC W2/280/W S/14/935 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	3500 K	120°
574579	MLC SC W2/280/W S/14/950 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	5000 K	120°
574580	MLC SC W2/280/W S/14/965 G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	cool white	6500 K	120°
574581	MLC SC W2/280/W S/14/927 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	warm white	2700 K	120°
574583	MLC SC W2/280/W S/14/935 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	3500 K	120°
574585	MLC SC W2/280/W S/14/950 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	neutral white	5000 K	120°
574586	MLC SC W2/280/W S/14/965 LV G1	14 pcs.	LED-Line-SMD_W2_Light&Dark_Mini_EN.pdf	279 mm	20 mm	4.3 mm	SMD	cool white	6500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
574563	MLC SC W2/280/W S/14/827 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574564	MLC SC W2/280/W S/14/830 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574565	MLC SC W2/280/W S/14/835 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574566	MLC SC W2/280/W S/14/840 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574567	MLC SC W2/280/W S/14/850 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574568	MLC SC W2/280/W S/14/865 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574569	MLC SC W2/280/W S/14/827 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574570	MLC SC W2/280/W S/14/830 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574571	MLC SC W2/280/W S/14/835 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574572	MLC SC W2/280/W S/14/840 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574576	MLC SC W2/280/W S/14/930 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574578	MLC SC W2/280/W S/14/940 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574582	MLC SC W2/280/W S/14/930 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574584	MLC SC W2/280/W S/14/940 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574573	MLC SC W2/280/W S/14/850 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574574	MLC SC W2/280/W S/14/865 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574575	MLC SC W2/280/W S/14/927 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574577	MLC SC W2/280/W S/14/935 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574579	MLC SC W2/280/W S/14/950 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574580	MLC SC W2/280/W S/14/965 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574581	MLC SC W2/280/W S/14/927 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574583	MLC SC W2/280/W S/14/935 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574585	MLC SC W2/280/W S/14/950 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W
574586	MLC SC W2/280/W S/14/965 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	18.3 V 18.6 V 18.8 V 19.1 V 19.5 V 19.7 V	1.8 W 2.8 W 3.8 W 4.8 W 6.8 W 7.9 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
574563	MLC SC W2/280/W S/14/827 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	360 lm 530 lm 695 lm 855 lm 1165 lm 1315 lm	196 lm/W 190 lm/W 184 lm/W 179 lm/W 171 lm/W 167 lm/W	80 80 80 80 80 80
574564	MLC SC W2/280/W S/14/830 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	360 lm 530 lm 695 lm 855 lm 1165 lm 1315 lm	196 lm/W 190 lm/W 184 lm/W 179 lm/W 171 lm/W 167 lm/W	80 80 80 80 80 80
574565	MLC SC W2/280/W S/14/835 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	385 lm 565 lm 740 lm 915 lm 1245 lm 1410 lm	209 lm/W 203 lm/W 197 lm/W 192 lm/W 183 lm/W 179 lm/W	80 80 80 80 80 80
574566	MLC SC W2/280/W S/14/840 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	385 lm 565 lm 740 lm 915 lm 1245 lm 1410 lm	209 lm/W 203 lm/W 197 lm/W 192 lm/W 183 lm/W 179 lm/W	80 80 80 80 80 80
574567	MLC SC W2/280/W S/14/850 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	385 lm 565 lm 740 lm 915 lm 1245 lm 1410 lm	209 lm/W 203 lm/W 197 lm/W 192 lm/W 183 lm/W 179 lm/W	80 80 80 80 80 80
574568	MLC SC W2/280/W S/14/865 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	385 lm 565 lm 740 lm 915 lm 1245 lm 1410 lm	209 lm/W 203 lm/W 197 lm/W 192 lm/W 183 lm/W 179 lm/W	80 80 80 80 80 80
574569	MLC SC W2/280/W S/14/827 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	360 lm 530 lm 695 lm 855 lm 1165 lm 1315 lm	196 lm/W 190 lm/W 184 lm/W 179 lm/W 171 lm/W 167 lm/W	80 80 80 80 80 80
574570	MLC SC W2/280/W S/14/830 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	360 lm 530 lm 695 lm 855 lm 1165 lm 1315 lm	196 lm/W 190 lm/W 184 lm/W 179 lm/W 171 lm/W 167 lm/W	80 80 80 80 80 80
574571	MLC SC W2/280/W S/14/835 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	385 lm 565 lm 740 lm 915 lm 1245 lm 1410 lm	209 lm/W 203 lm/W 197 lm/W 192 lm/W 183 lm/W 179 lm/W	80 80 80 80 80 80
574572	MLC SC W2/280/W S/14/840 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	385 lm 565 lm 740 lm 915 lm 1245 lm 1410 lm	209 lm/W 203 lm/W 197 lm/W 192 lm/W 183 lm/W 179 lm/W	80 80 80 80 80 80
574576	MLC SC W2/280/W S/14/930 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	310 lm 455 lm 595 lm 735 lm 1005 lm 1135 lm	169 lm/W 164 lm/W 159 lm/W 155 lm/W 147 lm/W 144 lm/W	90 90 90 90 90 90
574578	MLC SC W2/280/W S/14/940 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	335 lm 490 lm 645 lm 795 lm 1085 lm 1225 lm	182 lm/W 177 lm/W 171 lm/W 167 lm/W 159 lm/W 156 lm/W	90 90 90 90 90 90
574582	MLC SC W2/280/W S/14/930 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	310 lm 455 lm 595 lm 735 lm 1005 lm 1135 lm	169 lm/W 164 lm/W 159 lm/W 155 lm/W 147 lm/W 144 lm/W	90 90 90 90 90 90
574584	MLC SC W2/280/W S/14/940 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	335 lm 490 lm 645 lm 795 lm 1085 lm 1225 lm	182 lm/W 177 lm/W 171 lm/W 167 lm/W 159 lm/W 156 lm/W	90 90 90 90 90 90
574573	MLC SC W2/280/W S/14/850 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	385 lm 565 lm 740 lm 915 lm 1245 lm 1410 lm	209 lm/W 203 lm/W 197 lm/W 192 lm/W 183 lm/W 179 lm/W	80 80 80 80 80 80
574574	MLC SC W2/280/W S/14/865 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	385 lm 565 lm 740 lm 915 lm 1245 lm 1410 lm	209 lm/W 203 lm/W 197 lm/W 192 lm/W 183 lm/W 179 lm/W	80 80 80 80 80 80
574575	MLC SC W2/280/W S/14/927 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	285 lm 420 lm 550 lm 675 lm 825 lm 1045 lm	155 lm/W 150 lm/W 146 lm/W 142 lm/W 136 lm/W 133 lm/W	90 90 90 90 90 90
574577	MLC SC W2/280/W S/14/935 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	310 lm 455 lm 595 lm 735 lm 1005 lm 1135 lm	169 lm/W 164 lm/W 159 lm/W 155 lm/W 147 lm/W 144 lm/W	90 90 90 90 90 90
574579	MLC SC W2/280/W S/14/950 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	335 lm 490 lm 645 lm 795 lm 1085 lm 1225 lm	182 lm/W 177 lm/W 171 lm/W 167 lm/W 159 lm/W 156 lm/W	90 90 90 90 90 90
574580	MLC SC W2/280/W S/14/965 G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	335 lm 490 lm 645 lm 795 lm 1085 lm 1225 lm	182 lm/W 177 lm/W 171 lm/W 167 lm/W 159 lm/W 156 lm/W	90 90 90 90 90 90
574581	MLC SC W2/280/W S/14/927 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	285 lm 420 lm 550 lm 675 lm 825 lm 1045 lm	155 lm/W 150 lm/W 146 lm/W 142 lm/W 136 lm/W 133 lm/W	90 90 90 90 90 90
574583	MLC SC W2/280/W S/14/935 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	310 lm 455 lm 595 lm 735 lm 1005 lm 1135 lm	169 lm/W 164 lm/W 159 lm/W 155 lm/W 147 lm/W 144 lm/W	90 90 90 90 90 90
574585	MLC SC W2/280/W S/14/950 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	335 lm 490 lm 645 lm 795 lm 1085 lm 1225 lm	182 lm/W 177 lm/W 171 lm/W 167 lm/W 159 lm/W 156 lm/W	90 90 90 90 90 90
574586	MLC SC W2/280/W S/14/965 LV G1	14 pcs.	100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	335 lm 490 lm 645 lm 795 lm 1085 lm 1225 lm	182 lm/W 177 lm/W 171 lm/W 167 lm/W 159 lm/W 156 lm/W	90 90 90 90 90 90

Lifetime

Ref. No.	Type	LED quantity
574563	MLC SC W2/280/W S/14/827 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	80 °C 40 °C 50 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574564	MLC SC W2/280/W S/14/830 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574565	MLC SC W2/280/W S/14/835 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574566	MLC SC W2/280/W S/14/840 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574567	MLC SC W2/280/W S/14/850 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	40 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574568	MLC SC W2/280/W S/14/865 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	40 °C 80 °C 50 °C 50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574569	MLC SC W2/280/W S/14/827 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	80 °C 50 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574570	MLC SC W2/280/W S/14/830 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	40 °C 50 °C 50 °C 80 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574571	MLC SC W2/280/W S/14/835 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574572	MLC SC W2/280/W S/14/840 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574576	MLC SC W2/280/W S/14/930 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	40 °C 50 °C 80 °C 50 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574578	MLC SC W2/280/W S/14/940 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	40 °C 50 °C 50 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574582	MLC SC W2/280/W S/14/930 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574584	MLC SC W2/280/W S/14/940 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574573	MLC SC W2/280/W S/14/850 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574574	MLC SC W2/280/W S/14/865 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	80 °C 40 °C 50 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574575	MLC SC W2/280/W S/14/927 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574577	MLC SC W2/280/W S/14/935 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574579	MLC SC W2/280/W S/14/950 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	80 °C 50 °C 50 °C 40 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574580	MLC SC W2/280/W S/14/965 G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574581	MLC SC W2/280/W S/14/927 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574583	MLC SC W2/280/W S/14/935 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574585	MLC SC W2/280/W S/14/950 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	50 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574586	MLC SC W2/280/W S/14/965 LV G1	14 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
100 mA 150 mA 200 mA 250 mA 350 mA 400 mA	40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 70 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Ref. No.	Type	LED quantity	EU Declaration of Conformity
574563	MLC SC W2/280/W S/14/827 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574564	MLC SC W2/280/W S/14/830 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574565	MLC SC W2/280/W S/14/835 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574566	MLC SC W2/280/W S/14/840 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574567	MLC SC W2/280/W S/14/850 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574568	MLC SC W2/280/W S/14/865 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574569	MLC SC W2/280/W S/14/827 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574570	MLC SC W2/280/W S/14/830 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574571	MLC SC W2/280/W S/14/835 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574572	MLC SC W2/280/W S/14/840 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574576	MLC SC W2/280/W S/14/930 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574578	MLC SC W2/280/W S/14/940 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574582	MLC SC W2/280/W S/14/930 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574584	MLC SC W2/280/W S/14/940 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574573	MLC SC W2/280/W S/14/850 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574574	MLC SC W2/280/W S/14/865 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574575	MLC SC W2/280/W S/14/927 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574577	MLC SC W2/280/W S/14/935 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574579	MLC SC W2/280/W S/14/950 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574580	MLC SC W2/280/W S/14/965 G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574581	MLC SC W2/280/W S/14/927 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574583	MLC SC W2/280/W S/14/935 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574585	MLC SC W2/280/W S/14/950 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf
574586	MLC SC W2/280/W S/14/965 LV G1	14 pcs.	EU Declaration of Conformity_LED Line SMD W2 LightDark Mini.pdf

Ref. No.	Type	LED quantity	2D data	3D data
574563	MLC SC W2/280/W S/14/827 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574564	MLC SC W2/280/W S/14/830 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574565	MLC SC W2/280/W S/14/835 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574566	MLC SC W2/280/W S/14/840 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574567	MLC SC W2/280/W S/14/850 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574568	MLC SC W2/280/W S/14/865 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574569	MLC SC W2/280/W S/14/827 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574570	MLC SC W2/280/W S/14/830 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574571	MLC SC W2/280/W S/14/835 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574572	MLC SC W2/280/W S/14/840 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574576	MLC SC W2/280/W S/14/930 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574578	MLC SC W2/280/W S/14/940 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574582	MLC SC W2/280/W S/14/930 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574584	MLC SC W2/280/W S/14/940 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574573	MLC SC W2/280/W S/14/850 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574574	MLC SC W2/280/W S/14/865 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574575	MLC SC W2/280/W S/14/927 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574577	MLC SC W2/280/W S/14/935 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574579	MLC SC W2/280/W S/14/950 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574580	MLC SC W2/280/W S/14/965 G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574581	MLC SC W2/280/W S/14/927 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574583	MLC SC W2/280/W S/14/935 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574585	MLC SC W2/280/W S/14/950 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip
574586	MLC SC W2/280/W S/14/965 LV G1	14 pcs.	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	3D_MLC SC W2-280-W S-14-yzz G1.zip

ldt und ies data
LDC_Light&Dark-Mini.zip

Ref. No.	Type	Prüfzeichen	Prüfzertifikate
574563	MLC SC W2/280/W S/14/827 G1
574564	MLC SC W2/280/W S/14/830 G1
574565	MLC SC W2/280/W S/14/835 G1
574566	MLC SC W2/280/W S/14/840 G1
574567	MLC SC W2/280/W S/14/850 G1
574568	MLC SC W2/280/W S/14/865 G1
574569	MLC SC W2/280/W S/14/827 LV G1
574570	MLC SC W2/280/W S/14/830 LV G1
574571	MLC SC W2/280/W S/14/835 LV G1
574572	MLC SC W2/280/W S/14/840 LV G1
574576	MLC SC W2/280/W S/14/930 G1
574578	MLC SC W2/280/W S/14/940 G1
574582	MLC SC W2/280/W S/14/930 LV G1
574584	MLC SC W2/280/W S/14/940 LV G1
574573	MLC SC W2/280/W S/14/850 LV G1
574574	MLC SC W2/280/W S/14/865 LV G1
574575	MLC SC W2/280/W S/14/927 G1
574577	MLC SC W2/280/W S/14/935 G1
574579	MLC SC W2/280/W S/14/950 G1
574580	MLC SC W2/280/W S/14/965 G1
574581	MLC SC W2/280/W S/14/927 LV G1
574583	MLC SC W2/280/W S/14/935 LV G1
574585	MLC SC W2/280/W S/14/950 LV G1
574586	MLC SC W2/280/W S/14/965 LV G1

Ref. No.	Type	2D data	3D data
574563	MLC SC W2/280/W S/14/827 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574564	MLC SC W2/280/W S/14/830 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574565	MLC SC W2/280/W S/14/835 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574566	MLC SC W2/280/W S/14/840 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574567	MLC SC W2/280/W S/14/850 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574568	MLC SC W2/280/W S/14/865 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574569	MLC SC W2/280/W S/14/827 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574570	MLC SC W2/280/W S/14/830 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574571	MLC SC W2/280/W S/14/835 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574572	MLC SC W2/280/W S/14/840 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574576	MLC SC W2/280/W S/14/930 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574578	MLC SC W2/280/W S/14/940 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574582	MLC SC W2/280/W S/14/930 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574584	MLC SC W2/280/W S/14/940 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574573	MLC SC W2/280/W S/14/850 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574574	MLC SC W2/280/W S/14/865 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574575	MLC SC W2/280/W S/14/927 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574577	MLC SC W2/280/W S/14/935 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574579	MLC SC W2/280/W S/14/950 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574580	MLC SC W2/280/W S/14/965 G1	2D_MLC SC W2-280-W S-14-yzz G1.pdf	10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574581	MLC SC W2/280/W S/14/927 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574583	MLC SC W2/280/W S/14/935 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574585	MLC SC W2/280/W S/14/950 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
574586	MLC SC W2/280/W S/14/965 LV G1	2D_MLC SC W2-280-W S-14-yzz LV G1.pdf	10 10 10 50 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

Contact
