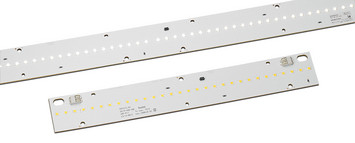

LED Line SMD W4 Gen. 4

LED modules for linear lighting applications

LED built-in module for installation in luminaires with on-board push-in terminals.

Product benefits

Available in different lengths
Available in different power classes
Can be combined with VS optics

Efficiency: up to 201 lm/W

Tuneable White max: 6000 K

Tuneable White min: 2700 K

Find system solution!

LED Line W4 1R Gen. 4, 280 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
569465	WU-M-501-S2-TC-830	15 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.1 mm	SMD	warm white	3000 K	120°
569468	WU-M-501-S2-TC-865	15 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.1 mm	SMD	cool white	6500 K	120°
569469	WU-M-501-S2-BC-830	15 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.4 mm	SMD	warm white	3000 K	120°
569466	WU-M-501-S2-TC-840	15 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.1 mm	SMD	neutral white	4000 K	120°
569467	WU-M-501-S2-TC-850	15 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.1 mm	SMD	cool white	5000 K	120°
569470	WU-M-501-S2-BC-840	15 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.4 mm	SMD	neutral white	4000 K	120°
569471	WU-M-501-S2-BC-850	15 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.4 mm	SMD	cool white	5000 K	120°
569472	WU-M-501-S2-BC-865	15 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.4 mm	SMD	cool white	6500 K	120°
569481	WU-M-480-S2-TC-830	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.1 mm	SMD	warm white	3000 K	120°
569482	WU-M-480-S2-TC-840	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.1 mm	SMD	neutral white	4000 K	120°
569483	WU-M-480-S2-TC-850	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.1 mm	SMD	cool white	5000 K	120°
569484	WU-M-480-S2-TC-865	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.1 mm	SMD	cool white	6500 K	120°
569485	WU-M-480-S2-BC-830	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.4 mm	SMD	warm white	3000 K	120°
569486	WU-M-480-S2-BC-840	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.4 mm	SMD	neutral white	4000 K	120°
569487	WU-M-480-S2-BC-850	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.4 mm	SMD	cool white	5000 K	120°
569488	WU-M-480-S2-BC-865	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	279.6 mm	39.6 mm	6.4 mm	SMD	cool white	6500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
569465	WU-M-501-S2-TC-830	15 pcs.	350 mA 500 mA 700 mA 1050 mA	8.2 V 8.4 V 8.6 V 9 V	2.9 W 4.2 W 6 W 9.4 W
569468	WU-M-501-S2-TC-865	15 pcs.	350 mA 500 mA 700 mA 1050 mA	8.2 V 8.4 V 8.6 V 9 V	2.9 W 4.2 W 6 W 9.4 W
569469	WU-M-501-S2-BC-830	15 pcs.	350 mA 500 mA 700 mA 1050 mA	8.2 V 8.4 V 8.6 V 9 V	2.9 W 4.2 W 6 W 9.4 W
569466	WU-M-501-S2-TC-840	15 pcs.	350 mA 500 mA 700 mA 1050 mA	8.2 V 8.4 V 8.6 V 9 V	2.9 W 4.2 W 6 W 9.4 W
569467	WU-M-501-S2-TC-850	15 pcs.	350 mA 500 mA 700 mA 1050 mA	8.2 V 8.4 V 8.6 V 9 V	2.9 W 4.2 W 6 W 9.4 W
569470	WU-M-501-S2-BC-840	15 pcs.	350 mA 500 mA 700 mA 1050 mA	8.2 V 8.4 V 8.6 V 9 V	2.9 W 4.2 W 6 W 9.4 W
569471	WU-M-501-S2-BC-850	15 pcs.	350 mA 500 mA 700 mA 1050 mA	8.2 V 8.4 V 8.6 V 9 V	2.9 W 4.2 W 6 W 9.4 W
569472	WU-M-501-S2-BC-865	15 pcs.	350 mA 500 mA 700 mA 1050 mA	8.2 V 8.4 V 8.6 V 9 V	2.9 W 4.2 W 6 W 9.4 W
569481	WU-M-480-S2-TC-830	30 pcs.	350 mA 500 mA 700 mA 1050 mA	13.5 V 13.8 V 14.1 V 14.6 V	4.7 W 6.9 W 9.9 W 15.4 W
569482	WU-M-480-S2-TC-840	30 pcs.	350 mA 500 mA 700 mA 1050 mA	13.5 V 13.8 V 14.1 V 14.6 V	4.7 W 6.9 W 9.9 W 15.4 W
569483	WU-M-480-S2-TC-850	30 pcs.	350 mA 500 mA 700 mA 1050 mA	13.5 V 13.8 V 14.1 V 14.6 V	4.7 W 6.9 W 9.9 W 15.4 W
569484	WU-M-480-S2-TC-865	30 pcs.	350 mA 500 mA 700 mA 1050 mA	13.5 V 13.8 V 14.1 V 14.6 V	4.7 W 6.9 W 9.9 W 15.4 W
569485	WU-M-480-S2-BC-830	30 pcs.	350 mA 500 mA 700 mA 1050 mA	13.5 V 13.8 V 14.1 V 14.6 V	4.7 W 6.9 W 9.9 W 15.4 W
569486	WU-M-480-S2-BC-840	30 pcs.	350 mA 500 mA 700 mA 1050 mA	13.5 V 13.8 V 14.1 V 14.6 V	4.7 W 6.9 W 9.9 W 15.4 W
569487	WU-M-480-S2-BC-850	30 pcs.	350 mA 500 mA 700 mA 1050 mA	13.5 V 13.8 V 14.1 V 14.6 V	4.7 W 6.9 W 9.9 W 15.4 W
569488	WU-M-480-S2-BC-865	30 pcs.	350 mA 500 mA 700 mA 1050 mA	13.5 V 13.8 V 14.1 V 14.6 V	4.7 W 6.9 W 9.9 W 15.4 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
569465	WU-M-501-S2-TC-830	15 pcs.	350 mA 500 mA 700 mA 1050 mA	530 lm 745 lm 1020 lm 1490 lm	185 lm/W 178 lm/W 170 lm/W 159 lm/W	80 80 80 80
569468	WU-M-501-S2-TC-865	15 pcs.	350 mA 500 mA 700 mA 1050 mA	525 lm 735 lm 1010 lm 1475 lm	183 lm/W 176 lm/W 168 lm/W 157 lm/W	80 80 80 80
569469	WU-M-501-S2-BC-830	15 pcs.	350 mA 500 mA 700 mA 1050 mA	530 lm 745 lm 1020 lm 1490 lm	185 lm/W 178 lm/W 170 lm/W 159 lm/W	80 80 80 80
569466	WU-M-501-S2-TC-840	15 pcs.	350 mA 500 mA 700 mA 1050 mA	565 lm 790 lm 1090 lm 1590 lm	197 lm/W 190 lm/W 181 lm/W 169 lm/W	80 80 80 80
569467	WU-M-501-S2-TC-850	15 pcs.	350 mA 500 mA 700 mA 1050 mA	565 lm 790 lm 90 lm 1590 lm	197 lm/W 190 lm/W 181 lm/W 169 lm/W	80 80 80 80
569470	WU-M-501-S2-BC-840	15 pcs.	350 mA 500 mA 700 mA 1050 mA	565 lm 790 lm 1090 lm 1590 lm	197 lm/W 190 lm/W 181 lm/W 169 lm/W	80 80 80 80
569471	WU-M-501-S2-BC-850	15 pcs.	350 mA 500 mA 700 mA 1050 mA	565 lm 790 lm 90 lm 1590 lm	197 lm/W 190 lm/W 181 lm/W 169 lm/W	80 80 80 80
569472	WU-M-501-S2-BC-865	15 pcs.	350 mA 500 mA 700 mA 1050 mA	525 lm 735 lm 1010 lm 1475 lm	183 lm/W 176 lm/W 168 lm/W 157 lm/W	80 80 80 80
569481	WU-M-480-S2-TC-830	30 pcs.	350 mA 500 mA 700 mA 1050 mA	890 lm 1250 lm 1720 lm 2520 lm	189 lm/W 182 lm/W 175 lm/W 164 lm/W	80 80 80 80
569482	WU-M-480-S2-TC-840	30 pcs.	350 mA 500 mA 700 mA 1050 mA	950 lm 1330 lm 1835 lm 2685 lm	201 lm/W 194 lm/W 186 lm/W 175 lm/W	80 80 80 80
569483	WU-M-480-S2-TC-850	30 pcs.	350 mA 500 mA 700 mA 1050 mA	950 lm 1330 lm 1835 lm 2685 lm	201 lm/W 194 lm/W 186 lm/W 175 lm/W	80 80 80 80
569484	WU-M-480-S2-TC-865	30 pcs.	350 mA 500 mA 700 mA 1050 mA	880 lm 1240 lm 1705 lm 2495 lm	187 lm/W 180 lm/W 173 lm/W 162 lm/W	80 80 80 80
569485	WU-M-480-S2-BC-830	30 pcs.	350 mA 500 mA 700 mA 1050 mA	890 lm 1250 lm 1720 lm 2520 lm	189 lm/W 182 lm/W 175 lm/W 164 lm/W	80 80 80 80
569486	WU-M-480-S2-BC-840	30 pcs.	350 mA 500 mA 700 mA 1050 mA	950 lm 1330 lm 1835 lm 2685 lm	201 lm/W 194 lm/W 186 lm/W 175 lm/W	80 80 80 80
569487	WU-M-480-S2-BC-850	30 pcs.	350 mA 500 mA 700 mA 1050 mA	950 lm 1330 lm 1835 lm 2685 lm	201 lm/W 194 lm/W 186 lm/W 175 lm/W	80 80 80 80
569488	WU-M-480-S2-BC-865	30 pcs.	350 mA 500 mA 700 mA 1050 mA	880 lm 1240 lm 1705 lm 2495 lm	187 lm/W 180 lm/W 173 lm/W 162 lm/W	80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
569465	WU-M-501-S2-TC-830	15 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 75 °C 40 °C 75 °C 40 °C 50 °C 75 °C 40 °C 50 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569468	WU-M-501-S2-TC-865	15 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	75 °C 40 °C 50 °C 75 °C 40 °C 50 °C 50 °C 75 °C 40 °C 40 °C 75 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569469	WU-M-501-S2-BC-830	15 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 50 °C 75 °C 75 °C 40 °C 50 °C 40 °C 50 °C 75 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569466	WU-M-501-S2-TC-840	15 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 75 °C 50 °C 50 °C 75 °C 40 °C 50 °C 75 °C 40 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569467	WU-M-501-S2-TC-850	15 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 50 °C 75 °C 75 °C 40 °C 50 °C 40 °C 50 °C 75 °C 40 °C 50 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569470	WU-M-501-S2-BC-840	15 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 40 °C 75 °C 75 °C 40 °C 50 °C 75 °C 40 °C 50 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569471	WU-M-501-S2-BC-850	15 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	75 °C 40 °C 50 °C 40 °C 75 °C 50 °C 40 °C 50 °C 75 °C 40 °C 50 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569472	WU-M-501-S2-BC-865	15 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	75 °C 40 °C 50 °C 50 °C 75 °C 40 °C 40 °C 50 °C 75 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569481	WU-M-480-S2-TC-830	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	75 °C 40 °C 50 °C 50 °C 75 °C 40 °C 75 °C 50 °C 40 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569482	WU-M-480-S2-TC-840	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	75 °C 50 °C 40 °C 50 °C 40 °C 75 °C 40 °C 75 °C 50 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569483	WU-M-480-S2-TC-850	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 40 °C 75 °C 40 °C 50 °C 75 °C 40 °C 75 °C 50 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569484	WU-M-480-S2-TC-865	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 75 °C 40 °C 50 °C 40 °C 75 °C 50 °C 75 °C 40 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569485	WU-M-480-S2-BC-830	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 75 °C 50 °C 40 °C 50 °C 75 °C 50 °C 40 °C 75 °C 75 °C 50 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569486	WU-M-480-S2-BC-840	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 75 °C 50 °C 75 °C 40 °C 50 °C 50 °C 40 °C 75 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569487	WU-M-480-S2-BC-850	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	75 °C 50 °C 40 °C 50 °C 75 °C 40 °C 40 °C 75 °C 50 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569488	WU-M-480-S2-BC-865	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 75 °C 50 °C 40 °C 75 °C 50 °C 40 °C 50 °C 75 °C 40 °C 50 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
569465	WU-M-501-S2-TC-830	908088	C
569468	WU-M-501-S2-TC-865	908091	C
569469	WU-M-501-S2-BC-830	908082	C
569466	WU-M-501-S2-TC-840	908089	C
569467	WU-M-501-S2-TC-850	908090	C
569470	WU-M-501-S2-BC-840	908085	C
569471	WU-M-501-S2-BC-850	908086	C
569472	WU-M-501-S2-BC-865	908087	C
569481	WU-M-480-S2-TC-830	908065	C
569482	WU-M-480-S2-TC-840	908066	B
569483	WU-M-480-S2-TC-850	908067	B
569484	WU-M-480-S2-TC-865	908068	C
569485	WU-M-480-S2-BC-830	908061	C
569486	WU-M-480-S2-BC-840	908062	B
569487	WU-M-480-S2-BC-850	908063	B
569488	WU-M-480-S2-BC-865	908064	C

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
569465	WU-M-501-S2-TC-830	15 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569468	WU-M-501-S2-TC-865	15 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569469	WU-M-501-S2-BC-830	15 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569466	WU-M-501-S2-TC-840	15 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569467	WU-M-501-S2-TC-850	15 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569470	WU-M-501-S2-BC-840	15 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569471	WU-M-501-S2-BC-850	15 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569472	WU-M-501-S2-BC-865	15 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569481	WU-M-480-S2-TC-830	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569482	WU-M-480-S2-TC-840	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569483	WU-M-480-S2-TC-850	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569484	WU-M-480-S2-TC-865	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569485	WU-M-480-S2-BC-830	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569486	WU-M-480-S2-BC-840	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569487	WU-M-480-S2-BC-850	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569488	WU-M-480-S2-BC-865	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf

Ref. No.	Type	LED quantity	2D data	3D data
569465	WU-M-501-S2-TC-830	15 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-501-S-TC_with_Optic.zip
569468	WU-M-501-S2-TC-865	15 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-501-S-TC_with_Optic.zip
569469	WU-M-501-S2-BC-830	15 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-501-S-BC_with_Optic.zip
569466	WU-M-501-S2-TC-840	15 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-501-S-TC_with_Optic.zip
569467	WU-M-501-S2-TC-850	15 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-501-S-TC_with_Optic.zip
569470	WU-M-501-S2-BC-840	15 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-501-S-BC_with_Optic.zip
569471	WU-M-501-S2-BC-850	15 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-501-S-BC_with_Optic.zip
569472	WU-M-501-S2-BC-865	15 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-501-S-BC_with_Optic.zip
569481	WU-M-480-S2-TC-830	30 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-480-S-TC_with_Optic.zip
569482	WU-M-480-S2-TC-840	30 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-480-S-TC_with_Optic.zip
569483	WU-M-480-S2-TC-850	30 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-480-S-TC_with_Optic.zip
569484	WU-M-480-S2-TC-865	30 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-480-S-TC_with_Optic.zip
569485	WU-M-480-S2-BC-830	30 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-480-S-BC_with_Optic.zip
569486	WU-M-480-S2-BC-840	30 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-480-S-BC_with_Optic.zip
569487	WU-M-480-S2-BC-850	30 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-480-S-BC_with_Optic.zip
569488	WU-M-480-S2-BC-865	30 pcs.	2D_WU-M-501-S2_Catalogue-graphic.pdf	3D_WU-M-480-S-BC_with_Optic.zip

ldt und ies data
LDC_LED_Line_SMD_W4_Gen4_LED-Optics_1R_for_SMD_PCB_W4.zip LDC_LED_Line_SMD_W4_Gen4.zip

Application notes
Thermal_Design_EN.pdf ESD Protection Procedures_EN.pdf Chemical Incompatibility_EN.pdf

Ref. No.	Type
569465	WU-M-501-S2-TC-830
569468	WU-M-501-S2-TC-865
569469	WU-M-501-S2-BC-830
569466	WU-M-501-S2-TC-840
569467	WU-M-501-S2-TC-850
569470	WU-M-501-S2-BC-840
569471	WU-M-501-S2-BC-850
569472	WU-M-501-S2-BC-865
569481	WU-M-480-S2-TC-830
569482	WU-M-480-S2-TC-840
569483	WU-M-480-S2-TC-850
569484	WU-M-480-S2-TC-865
569485	WU-M-480-S2-BC-830
569486	WU-M-480-S2-BC-840
569487	WU-M-480-S2-BC-850
569488	WU-M-480-S2-BC-865

Ref. No.	Type	2D data	3D data
569465	WU-M-501-S2-TC-830	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569468	WU-M-501-S2-TC-865	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569469	WU-M-501-S2-BC-830	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569466	WU-M-501-S2-TC-840	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569467	WU-M-501-S2-TC-850	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569470	WU-M-501-S2-BC-840	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569471	WU-M-501-S2-BC-850	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569472	WU-M-501-S2-BC-865	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569481	WU-M-480-S2-TC-830	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569482	WU-M-480-S2-TC-840	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569483	WU-M-480-S2-TC-850	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569484	WU-M-480-S2-TC-865	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569485	WU-M-480-S2-BC-830	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569486	WU-M-480-S2-BC-840	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569487	WU-M-480-S2-BC-850	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569488	WU-M-480-S2-BC-865	2D_WU-M-501-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10

LED Line W4 1R Gen. 4, 560 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
569457	WU-M-502-S2-TC-830	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.1 mm	SMD	warm white	3000 K	120°
569464	WU-M-502-S2-BC-865	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.4 mm	SMD	cool white	6500 K	120°
569458	WU-M-502-S2-TC-840	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.1 mm	SMD	neutral white	4000 K	120°
569459	WU-M-502-S2-TC-850	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.1 mm	SMD	cool white	5000 K	120°
569460	WU-M-502-S2-TC-865	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.1 mm	SMD	cool white	6500 K	120°
569461	WU-M-502-S2-BC-830	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.4 mm	SMD	warm white	3000 K	120°
569462	WU-M-502-S2-BC-840	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.4 mm	SMD	neutral white	4000 K	120°
569463	WU-M-502-S2-BC-850	30 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.4 mm	SMD	cool white	5000 K	120°
569473	WU-M-481-S2-TC-830	60 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.1 mm	SMD	warm white	3000 K	120°
569474	WU-M-481-S2-TC-840	60 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.1 mm	SMD	neutral white	4000 K	120°
569475	WU-M-481-S2-TC-850	60 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.1 mm	SMD	cool white	5000 K	120°
569476	WU-M-481-S2-TC-865	60 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.1 mm	SMD	cool white	6500 K	120°
569477	WU-M-481-S2-BC-830	60 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.4 mm	SMD	warm white	3000 K	120°
569478	WU-M-481-S2-BC-840	60 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.4 mm	SMD	neutral white	4000 K	120°
569479	WU-M-481-S2-BC-850	60 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.4 mm	SMD	cool white	5000 K	120°
569480	WU-M-481-S2-BC-865	60 pcs.	LED-Line-SMD-Kit_GEN-4_EN.pdf	560.6 mm	39.6 mm	6.4 mm	SMD	cool white	6500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
569457	WU-M-502-S2-TC-830	30 pcs.	350 mA 500 mA 700 mA 1050 mA	16.3 V 16.7 V 17.2 V 17.9 V	5.7 W 8.4 W 12 W 18.8 W
569464	WU-M-502-S2-BC-865	30 pcs.	350 mA 500 mA 700 mA 1050 mA	16.3 V 16.7 V 17.2 V 17.9 V	5.7 W 8.4 W 12 W 18.8 W
569458	WU-M-502-S2-TC-840	30 pcs.	350 mA 500 mA 700 mA 1050 mA	16.3 V 16.7 V 17.2 V 17.9 V	5.7 W 8.4 W 12 W 18.8 W
569459	WU-M-502-S2-TC-850	30 pcs.	350 mA 500 mA 700 mA 1050 mA	16.3 V 16.7 V 17.2 V 17.9 V	5.7 W 8.4 W 12 W 18.8 W
569460	WU-M-502-S2-TC-865	30 pcs.	350 mA 500 mA 700 mA 1050 mA	16.3 V 16.7 V 17.2 V 17.9 V	5.7 W 8.4 W 12 W 18.8 W
569461	WU-M-502-S2-BC-830	30 pcs.	350 mA 500 mA 700 mA 1050 mA	16.3 V 16.7 V 17.2 V 17.9 V	5.7 W 8.4 W 12 W 18.8 W
569462	WU-M-502-S2-BC-840	30 pcs.	350 mA 500 mA 700 mA 1050 mA	16.3 V 16.7 V 17.2 V 17.9 V	5.7 W 8.4 W 12 W 18.8 W
569463	WU-M-502-S2-BC-850	30 pcs.	350 mA 500 mA 700 mA 1050 mA	16.3 V 16.7 V 17.2 V 17.9 V	5.7 W 8.4 W 12 W 18.8 W
569473	WU-M-481-S2-TC-830	60 pcs.	350 mA 500 mA 700 mA 1050 mA	27 V 27.5 V 28.2 V 29.3 V	9.4 W 13.8 W 19.7 W 30.7 W
569474	WU-M-481-S2-TC-840	60 pcs.	350 mA 500 mA 700 mA 1050 mA	27 V 27.5 V 28.2 V 29.3 V	9.4 W 13.8 W 19.7 W 30.7 W
569475	WU-M-481-S2-TC-850	60 pcs.	350 mA 500 mA 700 mA 1050 mA	27 V 27.5 V 28.2 V 29.3 V	9.4 W 13.8 W 19.7 W 30.7 W
569476	WU-M-481-S2-TC-865	60 pcs.	350 mA 500 mA 700 mA 1050 mA	27 V 27.5 V 28.2 V 29.3 V	9.4 W 13.8 W 19.7 W 30.7 W
569477	WU-M-481-S2-BC-830	60 pcs.	350 mA 500 mA 700 mA 1050 mA	27 V 27.5 V 28.2 V 29.3 V	9.4 W 13.8 W 19.7 W 30.7 W
569478	WU-M-481-S2-BC-840	60 pcs.	350 mA 500 mA 700 mA 1050 mA	27 V 27.5 V 28.2 V 29.3 V	9.4 W 13.8 W 19.7 W 30.7 W
569479	WU-M-481-S2-BC-850	60 pcs.	350 mA 500 mA 700 mA 1050 mA	27 V 27.5 V 28.2 V 29.3 V	9.4 W 13.8 W 19.7 W 30.7 W
569480	WU-M-481-S2-BC-865	60 pcs.	350 mA 500 mA 700 mA 1050 mA	27 V 27.5 V 28.2 V 29.3 V	9.4 W 13.8 W 19.7 W 30.7 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
569457	WU-M-502-S2-TC-830	30 pcs.	350 mA 500 mA 700 mA 1050 mA	1060 lm 1485 lm 2045 lm 2985 lm	185 lm/W 178 lm/W 170 lm/W 159 lm/W	80 80 80 80
569464	WU-M-502-S2-BC-865	30 pcs.	350 mA 500 mA 700 mA 1050 mA	1050 lm 1470 lm 2025 lm 2950 lm	183 lm/W 176 lm/W 168 lm/W 157 lm/W	80 80 80 80
569458	WU-M-502-S2-TC-840	30 pcs.	350 mA 500 mA 700 mA 1050 mA	1130 lm 1585 lm 2175 lm 3175 lm	197 lm/W 190 lm/W 181 lm/W 169 lm/W	80 80 80 80
569459	WU-M-502-S2-TC-850	30 pcs.	350 mA 500 mA 700 mA 1050 mA	1130 lm 1585 lm 2175 lm 3175 lm	197 lm/W 190 lm/W 181 lm/W 169 lm/W	80 80 80 80
569460	WU-M-502-S2-TC-865	30 pcs.	350 mA 500 mA 700 mA 1050 mA	1050 lm 1470 lm 2025 lm 2950 lm	183 lm/W 176 lm/W 168 lm/W 157 lm/W	80 80 80 80
569461	WU-M-502-S2-BC-830	30 pcs.	350 mA 500 mA 700 mA 1050 mA	1060 lm 1485 lm 2045 lm 2985 lm	185 lm/W 178 lm/W 170 lm/W 159 lm/W	80 80 80 80
569462	WU-M-502-S2-BC-840	30 pcs.	350 mA 500 mA 700 mA 1050 mA	1130 lm 1585 lm 2175 lm 3175 lm	197 lm/W 190 lm/W 181 lm/W 169 lm/W	80 80 80 80
569463	WU-M-502-S2-BC-850	30 pcs.	350 mA 500 mA 700 mA 1050 mA	1130 lm 1585 lm 2175 lm 3175 lm	197 lm/W 190 lm/W 181 lm/W 169 lm/W	80 80 80 80
569473	WU-M-481-S2-TC-830	60 pcs.	350 mA 500 mA 700 mA 1050 mA	1780 lm 2500 lm 3445 lm 5045 lm	189 lm/W 182 lm/W 175 lm/W 164 lm/W	80 80 80 80
569474	WU-M-481-S2-TC-840	60 pcs.	350 mA 500 mA 700 mA 1050 mA	1895 lm 2665 lm 3665 lm 5370 lm	201 lm/W 194 lm/W 186 lm/W 175 lm/W	80 80 80 80
569475	WU-M-481-S2-TC-850	60 pcs.	350 mA 500 mA 700 mA 1050 mA	1895 lm 2665 lm 3665 lm 5370 lm	201 lm/W 194 lm/W 186 lm/W 175 lm/W	80 80 80 80
569476	WU-M-481-S2-TC-865	60 pcs.	350 mA 500 mA 700 mA 1050 mA	1760 lm 2475 lm 3405 lm 4990 lm	187 lm/W 180 lm/W 173 lm/W 162 lm/W	80 80 80 80
569477	WU-M-481-S2-BC-830	60 pcs.	350 mA 500 mA 700 mA 1050 mA	1780 lm 2500 lm 3445 lm 5045 lm	189 lm/W 182 lm/W 175 lm/W 164 lm/W	80 80 80 80
569478	WU-M-481-S2-BC-840	60 pcs.	350 mA 500 mA 700 mA 1050 mA	1895 lm 2665 lm 3665 lm 5370 lm	201 lm/W 194 lm/W 186 lm/W 175 lm/W	80 80 80 80
569479	WU-M-481-S2-BC-850	60 pcs.	350 mA 500 mA 700 mA 1050 mA	1895 lm 2665 lm 3665 lm 5370 lm	201 lm/W 194 lm/W 186 lm/W 175 lm/W	80 80 80 80
569480	WU-M-481-S2-BC-865	60 pcs.	350 mA 500 mA 700 mA 1050 mA	1760 lm 2475 lm 3405 lm 4990 lm	187 lm/W 180 lm/W 173 lm/W 162 lm/W	80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
569457	WU-M-502-S2-TC-830	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 75 °C 40 °C 75 °C 50 °C 40 °C 40 °C 75 °C 50 °C 75 °C 50 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569464	WU-M-502-S2-BC-865	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 50 °C 75 °C 40 °C 75 °C 50 °C 40 °C 75 °C 50 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569458	WU-M-502-S2-TC-840	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 50 °C 75 °C 40 °C 50 °C 75 °C 75 °C 40 °C 50 °C 40 °C 50 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569459	WU-M-502-S2-TC-850	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 40 °C 75 °C 50 °C 75 °C 40 °C 75 °C 40 °C 50 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569460	WU-M-502-S2-TC-865	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 75 °C 40 °C 50 °C 40 °C 75 °C 50 °C 75 °C 40 °C 40 °C 75 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569461	WU-M-502-S2-BC-830	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 75 °C 40 °C 75 °C 40 °C 50 °C 40 °C 50 °C 75 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569462	WU-M-502-S2-BC-840	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 40 °C 75 °C 50 °C 75 °C 40 °C 50 °C 75 °C 40 °C 40 °C 50 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569463	WU-M-502-S2-BC-850	30 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 75 °C 40 °C 75 °C 40 °C 50 °C 75 °C 40 °C 50 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569473	WU-M-481-S2-TC-830	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	75 °C 50 °C 40 °C 40 °C 50 °C 75 °C 50 °C 40 °C 75 °C 75 °C 40 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569474	WU-M-481-S2-TC-840	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 50 °C 75 °C 75 °C 40 °C 50 °C 75 °C 50 °C 40 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569475	WU-M-481-S2-TC-850	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	75 °C 50 °C 40 °C 40 °C 50 °C 75 °C 40 °C 50 °C 75 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569476	WU-M-481-S2-TC-865	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	75 °C 40 °C 50 °C 75 °C 40 °C 50 °C 75 °C 40 °C 50 °C 50 °C 75 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569477	WU-M-481-S2-BC-830	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 75 °C 40 °C 75 °C 40 °C 50 °C 75 °C 50 °C 40 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569478	WU-M-481-S2-BC-840	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	40 °C 75 °C 50 °C 40 °C 50 °C 75 °C 50 °C 75 °C 40 °C 40 °C 75 °C 50 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569479	WU-M-481-S2-BC-850	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 75 °C 40 °C 75 °C 50 °C 40 °C 50 °C 75 °C 40 °C 50 °C 40 °C 75 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10
569480	WU-M-481-S2-BC-865	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
350 mA 500 mA 700 mA 1050 mA	50 °C 75 °C 40 °C 50 °C 75 °C 40 °C 75 °C 40 °C 50 °C 75 °C 50 °C 40 °C	54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs. 54000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
569457	WU-M-502-S2-TC-830	908101	C
569464	WU-M-502-S2-BC-865	908100	C
569458	WU-M-502-S2-TC-840	908102	C
569459	WU-M-502-S2-TC-850	908103	C
569460	WU-M-502-S2-TC-865	908104	C
569461	WU-M-502-S2-BC-830	908095	C
569462	WU-M-502-S2-BC-840	908097	C
569463	WU-M-502-S2-BC-850	908098	C
569473	WU-M-481-S2-TC-830	908073	C
569474	WU-M-481-S2-TC-840	908075	B
569475	WU-M-481-S2-TC-850	908077	B
569476	WU-M-481-S2-TC-865	920398	C
569477	WU-M-481-S2-BC-830	908069	C
569478	WU-M-481-S2-BC-840	908070	B
569479	WU-M-481-S2-BC-850	908071	B
569480	WU-M-481-S2-BC-865	908072	C

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
569457	WU-M-502-S2-TC-830	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569464	WU-M-502-S2-BC-865	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569458	WU-M-502-S2-TC-840	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569459	WU-M-502-S2-TC-850	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569460	WU-M-502-S2-TC-865	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569461	WU-M-502-S2-BC-830	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569462	WU-M-502-S2-BC-840	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569463	WU-M-502-S2-BC-850	30 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569473	WU-M-481-S2-TC-830	60 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569474	WU-M-481-S2-TC-840	60 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569475	WU-M-481-S2-TC-850	60 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569476	WU-M-481-S2-TC-865	60 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569477	WU-M-481-S2-BC-830	60 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569478	WU-M-481-S2-BC-840	60 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569479	WU-M-481-S2-BC-850	60 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf
569480	WU-M-481-S2-BC-865	60 pcs.	Module LED Line SMD W4 Gen.4 (WU-M-480-481-501-502-S2-xC-yzz)_EU Declaration of Conformity.pdf	VDE_CERTIFICATE_0040043474_ORDER_300662_11309323.pdf

Ref. No.	Type	LED quantity	2D data	3D data
569457	WU-M-502-S2-TC-830	30 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-502-S-TC_with_Optic.zip
569464	WU-M-502-S2-BC-865	30 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-502-S-BC_with_Optic.zip
569458	WU-M-502-S2-TC-840	30 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-502-S-TC_with_Optic.zip
569459	WU-M-502-S2-TC-850	30 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-502-S-TC_with_Optic.zip
569460	WU-M-502-S2-TC-865	30 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-502-S-TC_with_Optic.zip
569461	WU-M-502-S2-BC-830	30 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-502-S-BC_with_Optic.zip
569462	WU-M-502-S2-BC-840	30 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-502-S-BC_with_Optic.zip
569463	WU-M-502-S2-BC-850	30 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-502-S-BC_with_Optic.zip
569473	WU-M-481-S2-TC-830	60 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-481-S-TC_with_Optic.zip
569474	WU-M-481-S2-TC-840	60 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-481-S-TC_with_Optic.zip
569475	WU-M-481-S2-TC-850	60 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-481-S-TC_with_Optic.zip
569476	WU-M-481-S2-TC-865	60 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-481-S-TC_with_Optic.zip
569477	WU-M-481-S2-BC-830	60 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-481-S-BC_with_Optic.zip
569478	WU-M-481-S2-BC-840	60 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-481-S-BC_with_Optic.zip
569479	WU-M-481-S2-BC-850	60 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-481-S-BC_with_Optic.zip
569480	WU-M-481-S2-BC-865	60 pcs.	2D_WU-M-502-S2_Catalogue-graphic.pdf	3D_WU-M-481-S-BC_with_Optic.zip

ldt und ies data
LDC_LED_Line_SMD_W4_Gen4_LED-Optics_1R_for_SMD_PCB_W4.zip LDC_LED_Line_SMD_W4_Gen4.zip

Application notes
Thermal_Design_EN.pdf ESD Protection Procedures_EN.pdf Chemical Incompatibility_EN.pdf

Ref. No.	Type
569457	WU-M-502-S2-TC-830
569464	WU-M-502-S2-BC-865
569458	WU-M-502-S2-TC-840
569459	WU-M-502-S2-TC-850
569460	WU-M-502-S2-TC-865
569461	WU-M-502-S2-BC-830
569462	WU-M-502-S2-BC-840
569463	WU-M-502-S2-BC-850
569473	WU-M-481-S2-TC-830
569474	WU-M-481-S2-TC-840
569475	WU-M-481-S2-TC-850
569476	WU-M-481-S2-TC-865
569477	WU-M-481-S2-BC-830
569478	WU-M-481-S2-BC-840
569479	WU-M-481-S2-BC-850
569480	WU-M-481-S2-BC-865

Ref. No.	Type	2D data	3D data
569457	WU-M-502-S2-TC-830	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569464	WU-M-502-S2-BC-865	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569458	WU-M-502-S2-TC-840	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569459	WU-M-502-S2-TC-850	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569460	WU-M-502-S2-TC-865	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569461	WU-M-502-S2-BC-830	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569462	WU-M-502-S2-BC-840	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569463	WU-M-502-S2-BC-850	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569473	WU-M-481-S2-TC-830	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569474	WU-M-481-S2-TC-840	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569475	WU-M-481-S2-TC-850	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569476	WU-M-481-S2-TC-865	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569477	WU-M-481-S2-BC-830	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569478	WU-M-481-S2-BC-840	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569479	WU-M-481-S2-BC-850	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10
569480	WU-M-481-S2-BC-865	2D_WU-M-502-S2_Catalogue-graphic.pdf	10 10 10 10 10 10 10 10 10 10 10 10

Contact

LED Line SMD W4 Gen. 4

LED modules for linear lighting applications

Product benefits

Choose a variant:

LED Line W4 1R Gen. 4, 280 mm

General data

Electrical operating data

Optical operating data

Lifetime

EPREL data

LED Line W4 1R Gen. 4, 560 mm

General data

Electrical operating data

Optical operating data

Lifetime

EPREL data

Contact

CREE

Nichia

Complementary secondary optics
