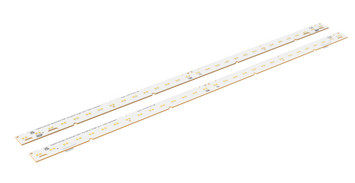

LED Line SMD W2 ComfortLine TwinLED

Linear build-in LED modules

Linear LED module with Twin-pair LEDs perfectly matched to the new W2 Optics system with Twin Lens. Available in 560 mm legth, with 30 mid-power LEDs offers broad range of luminous flux up to ~7000 lm and efficacy level over 201 lm/W.

Product benefits

Available in different colour temperatures
Can be combined with VS optics
Narrow colour tolerance: 3-step MacAdam
Product guarantee: 5 years

Efficiency: up to 201 lm/W

Long service life: up to 93.000 hrs.

Find system solution!

Choose a variant:

LED Line SMD W2 ComfortLine TwinLED, 560mm

LED Line SMD W2 ComfortLine TwinLED, 560mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
573607	WU-M-719-BC-830	60 pcs.	LED-Line-SMD_W2_TwinLED_WU-M-719_EN.pdf	559 mm	20 mm	6.4 mm	SMD	warm white	3000 K	120°
573608	WU-M-719-STC-830	60 pcs.	LED-Line-SMD_W2_TwinLED_WU-M-719_EN.pdf	559 mm	20 mm	4.3 mm	SMD	warm white	3000 K	120°
573610	WU-M-719-BC-840	60 pcs.	LED-Line-SMD_W2_TwinLED_WU-M-719_EN.pdf	559 mm	20 mm	6.4 mm	SMD	neutral white	4000 K	120°
573611	WU-M-719-STC-840	60 pcs.	LED-Line-SMD_W2_TwinLED_WU-M-719_EN.pdf	559 mm	20 mm	4.3 mm	SMD	neutral white	4000 K	120°
573613	WU-M-719-BC-850	60 pcs.	LED-Line-SMD_W2_TwinLED_WU-M-719_EN.pdf	559 mm	20 mm	6.4 mm	SMD	cool white	5000 K	120°
573614	WU-M-719-STC-850	60 pcs.	LED-Line-SMD_W2_TwinLED_WU-M-719_EN.pdf	559 mm	20 mm	4.3 mm	SMD	cool white	5000 K	120°
573616	WU-M-719-BC-865	60 pcs.	LED-Line-SMD_W2_TwinLED_WU-M-719_EN.pdf	559 mm	20 mm	6.4 mm	SMD	cool white	6500 K	120°
573617	WU-M-719-STC-865	60 pcs.	LED-Line-SMD_W2_TwinLED_WU-M-719_EN.pdf	559 mm	20 mm	4.3 mm	SMD	cool white	6500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
573607	WU-M-719-BC-830	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	53.3 V 54.2 V 55.5 V 56.2 V 57 V	13.3 W 19 W 27.7 W 33.7 W 39.9 W
573608	WU-M-719-STC-830	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	53.3 V 54.2 V 55.5 V 56.2 V 57 V	13.3 W 19 W 27.7 W 33.7 W 39.9 W
573610	WU-M-719-BC-840	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	53.3 V 54.2 V 55.5 V 56.2 V 57 V	13.3 W 19 W 27.7 W 33.7 W 39.9 W
573611	WU-M-719-STC-840	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	53.3 V 54.2 V 55.5 V 56.2 V 57 V	13.3 W 19 W 27.7 W 33.7 W 39.9 W
573613	WU-M-719-BC-850	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	53.3 V 54.2 V 55.5 V 56.2 V 57 V	13.3 W 19 W 27.7 W 33.7 W 39.9 W
573614	WU-M-719-STC-850	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	53.3 V 54.2 V 55.5 V 56.2 V 57 V	13.3 W 19 W 27.7 W 33.7 W 39.9 W
573616	WU-M-719-BC-865	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	53.3 V 54.2 V 55.5 V 56.2 V 57 V	13.3 W 19 W 27.7 W 33.7 W 39.9 W
573617	WU-M-719-STC-865	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	53.3 V 54.2 V 55.5 V 56.2 V 57 V	13.3 W 19 W 27.7 W 33.7 W 39.9 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
573607	WU-M-719-BC-830	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	2500 lm 3430 lm 4780 lm 5645 lm 6480 lm	187.729738279291 lm/W 180.77564146148 lm/W 172.327274843592 lm/W 167.315896034339 lm/W 162.484650701322 lm/W	80 80 80 80 80
573608	WU-M-719-STC-830	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	2500 lm 3430 lm 4780 lm 5645 lm 6480 lm	187.729738279291 lm/W 180.77564146148 lm/W 172.327274843592 lm/W 167.315896034339 lm/W 162.484650701322 lm/W	80 80 80 80 80
573610	WU-M-719-BC-840	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	2675 lm 3665 lm 5110 lm 6035 lm 6930 lm	200.676616781225 lm/W 193.242927079165 lm/W 184.211914486412 lm/W 178.854923343645 lm/W 173.690488674118 lm/W	80 80 80 80 80
573611	WU-M-719-STC-840	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	2675 lm 3665 lm 5110 lm 6035 lm 6930 lm	200.676616781225 lm/W 193.242927079165 lm/W 184.211914486412 lm/W 178.854923343645 lm/W 173.690488674118 lm/W	80 80 80 80 80
573613	WU-M-719-BC-850	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	2675 lm 3665 lm 5110 lm 6035 lm 6930 lm	200.676616781225 lm/W 193.242927079165 lm/W 184 lm/W 179 lm/W 174 lm/W	80 80 80 80 80
573614	WU-M-719-STC-850	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	2675 lm 3665 lm 5110 lm 6035 lm 6930 lm	201 lm/W 193 lm/W 184 lm/W 179 lm/W 174 lm/W	80 80 80 80 80
573616	WU-M-719-BC-865	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	2675 lm 3665 lm 5110 lm 6035 lm 6930 lm	200.676616781225 lm/W 193.242927079165 lm/W 184.211914486412 lm/W 178.854923343645 lm/W 173.690488674118 lm/W	80 80 80 80 80
573617	WU-M-719-STC-865	60 pcs.	250 mA 350 mA 500 mA 600 mA 700 mA	2675 lm 3665 lm 5110 lm 6035 lm 6930 lm	200.676616781225 lm/W 193.242927079165 lm/W 184.211914486412 lm/W 178.854923343645 lm/W 173.690488674118 lm/W	80 80 80 80 80

Lifetime

Ref. No.	Type	LED quantity
573607	WU-M-719-BC-830	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
250 mA 350 mA 500 mA 600 mA 700 mA	80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573608	WU-M-719-STC-830	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
250 mA 350 mA 500 mA 600 mA 700 mA	40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573610	WU-M-719-BC-840	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
250 mA 350 mA 500 mA 600 mA 700 mA	80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573611	WU-M-719-STC-840	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
250 mA 350 mA 500 mA 600 mA 700 mA	50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573613	WU-M-719-BC-850	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
250 mA 350 mA 500 mA 600 mA 700 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573614	WU-M-719-STC-850	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
250 mA 350 mA 500 mA 600 mA 700 mA	50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 80 °C 40 °C 50 °C 40 °C 80 °C 50 °C 40 °C 80 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573616	WU-M-719-BC-865	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)

573617	WU-M-719-STC-865	60 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
573607	WU-M-719-BC-830	2268978	C
573608	WU-M-719-STC-830	2269021	C
573610	WU-M-719-BC-840	2268981	C
573611	WU-M-719-STC-840	2269024	C
573613	WU-M-719-BC-850	2268990	C
573614	WU-M-719-STC-850	2269058	C
573616	WU-M-719-BC-865	2269019	C
573617	WU-M-719-STC-865	2269080	C

Ref. No.	Type	LED quantity	EU Declaration of Conformity
573607	WU-M-719-BC-830	60 pcs.	EU Declaration of Conformity Module LED Line SMD W2 TwinLED (WU-M-719).pdf
573608	WU-M-719-STC-830	60 pcs.	EU Declaration of Conformity Module LED Line SMD W2 TwinLED (WU-M-719).pdf
573610	WU-M-719-BC-840	60 pcs.	EU Declaration of Conformity Module LED Line SMD W2 TwinLED (WU-M-719).pdf
573611	WU-M-719-STC-840	60 pcs.	EU Declaration of Conformity Module LED Line SMD W2 TwinLED (WU-M-719).pdf
573613	WU-M-719-BC-850	60 pcs.	EU Declaration of Conformity Module LED Line SMD W2 TwinLED (WU-M-719).pdf
573614	WU-M-719-STC-850	60 pcs.	EU Declaration of Conformity Module LED Line SMD W2 TwinLED (WU-M-719).pdf
573616	WU-M-719-BC-865	60 pcs.	EU Declaration of Conformity Module LED Line SMD W2 TwinLED (WU-M-719).pdf
573617	WU-M-719-STC-865	60 pcs.	EU Declaration of Conformity Module LED Line SMD W2 TwinLED (WU-M-719).pdf

Ref. No.	Type	LED quantity	2D data	3D data
573607	WU-M-719-BC-830	60 pcs.	2D_WU-M-719_BC-STC.pdf	3D_WU-M-719.zip
573608	WU-M-719-STC-830	60 pcs.	2D_WU-M-719_BC-STC.pdf	3D_WU-M-719.zip
573610	WU-M-719-BC-840	60 pcs.	2D_WU-M-719_BC-STC.pdf	3D_WU-M-719.zip
573611	WU-M-719-STC-840	60 pcs.	2D_WU-M-719_BC-STC.pdf	3D_WU-M-719.zip
573613	WU-M-719-BC-850	60 pcs.	2D_WU-M-719_BC-STC.pdf	3D_WU-M-719.zip
573614	WU-M-719-STC-850	60 pcs.	2D_WU-M-719_BC-STC.pdf	3D_WU-M-719.zip
573616	WU-M-719-BC-865	60 pcs.	2D_WU-M-719_BC-STC.pdf	3D_WU-M-719.zip
573617	WU-M-719-STC-865	60 pcs.	2D_WU-M-719_BC-STC.pdf	3D_WU-M-719.zip

Ref. No.	Type
573607	WU-M-719-BC-830
573608	WU-M-719-STC-830
573610	WU-M-719-BC-840
573611	WU-M-719-STC-840
573613	WU-M-719-BC-850
573614	WU-M-719-STC-850
573616	WU-M-719-BC-865
573617	WU-M-719-STC-865

Ref. No.	Type	2D data	3D data
573607	WU-M-719-BC-830	2D_WU-M-719_BC-STC.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573608	WU-M-719-STC-830	2D_WU-M-719_BC-STC.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573610	WU-M-719-BC-840	2D_WU-M-719_BC-STC.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573611	WU-M-719-STC-840	2D_WU-M-719_BC-STC.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573613	WU-M-719-BC-850	2D_WU-M-719_BC-STC.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573614	WU-M-719-STC-850	2D_WU-M-719_BC-STC.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
573616	WU-M-719-BC-865	2D_WU-M-719_BC-STC.pdf
573617	WU-M-719-STC-865	2D_WU-M-719_BC-STC.pdf
