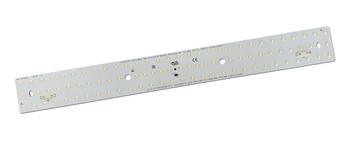

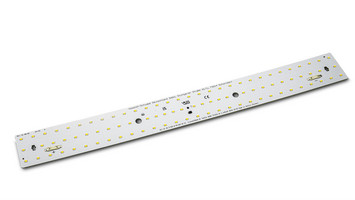

LED Line SMD Comfort-B 3R HO

LED modules for linear lighting applications

LED build-in Linear modules, for integration mainly into linear luminaires. With increased number of LEDs, the module is capable of delivering significantly higher lumen output compared to the standard Comfort-B module. Available with on-board push-in terminal for BackSide connection possibility. Perfectly fits to 3R Comfort-B 90 Single lenses Linear Optic system.

Product benefits

Available in different colour temperatures
Can be combined with VS optics
Narrow colour tolerance: 3-step MacAdam
Product guarantee: 5 years

Efficiency: up to 209 lm/W

Long service life: up to 93.000 hrs.

Find system solution!

Choose a variant:

LED Line SMD Comfort-B 3R HO, 500 mm

LED Line SMD Comfort-B 3R HO, 500 mm

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle
573960	MLC SC W5.5/500 B/90/827 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	warm white	2700 K	120°
573961	MLC SC W5.5/500 B/90/830 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
573962	MLC SC W5.5/500 B/90/835 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	warm white	3500 K	120°
573963	MLC SC W5.5/500 B/90/840 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
573964	MLC SC W5.5/500 B/90/850 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
573965	MLC SC W5.5/500 B/90/865 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	cool white	6500 K	120°
573966	MLC SC W5.5/500 B/90/927 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	warm white	2700 K	120°
573967	MLC SC W5.5/500 B/90/930 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	warm white	3000 K	120°
573968	MLC SC W5.5/500 B/90/935 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	warm white	3500 K	120°
573969	MLC SC W5.5/500 B/90/940 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	neutral white	4000 K	120°
573970	MLC SC W5.5/500 B/90/950 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	cool white	5000 K	120°
573971	MLC SC W5.5/500 B/90/965 HO G1	90 pcs.	LED-Line-SMD-3R-Comfort-B_HO_EN.pdf	493 mm	55 mm	6.4 mm	SMD	cool white	6500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
573960	MLC SC W5.5/500 B/90/827 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573961	MLC SC W5.5/500 B/90/830 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573962	MLC SC W5.5/500 B/90/835 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573963	MLC SC W5.5/500 B/90/840 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573964	MLC SC W5.5/500 B/90/850 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573965	MLC SC W5.5/500 B/90/865 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573966	MLC SC W5.5/500 B/90/927 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573967	MLC SC W5.5/500 B/90/930 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573968	MLC SC W5.5/500 B/90/935 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573969	MLC SC W5.5/500 B/90/940 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573970	MLC SC W5.5/500 B/90/950 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W
573971	MLC SC W5.5/500 B/90/965 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	78.4 V 79.2 V 80 V 81.3 V 83.2 V 85.5 V	11.8 W 15.8 W 20 W 28.5 W 41.6 W 59.8 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
573960	MLC SC W5.5/500 B/90/827 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	2305 lm 3040 lm 3755 lm 5145 lm 7170 lm 9720 lm	196 lm/W 192 lm/W 188 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573961	MLC SC W5.5/500 B/90/830 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	2305 lm 3040 lm 3755 lm 5145 lm 7170 lm 9720 lm	196 lm/W 192 lm/W 188 lm/W 181 lm/W 172 lm/W 162 lm/W	80 80 80 80 80 80
573962	MLC SC W5.5/500 B/90/835 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	2465 lm 3245 lm 4010 lm 5500 lm 7665 lm 10390 lm	209 lm/W 205 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573963	MLC SC W5.5/500 B/90/840 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	2465 lm 3245 lm 4010 lm 5500 lm 7665 lm 10390 lm	209 lm/W 205 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573964	MLC SC W5.5/500 B/90/850 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	2465 lm 3245 lm 4010 lm 5500 lm 7665 lm 10390 lm	209 lm/W 205 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573965	MLC SC W5.5/500 B/90/865 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	2465 lm 3245 lm 4010 lm 5500 lm 7665 lm 10390 lm	209 lm/W 205 lm/W 201 lm/W 193 lm/W 184 lm/W 174 lm/W	80 80 80 80 80 80
573966	MLC SC W5.5/500 B/90/927 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	1825 lm 2410 lm 2975 lm 4080 lm 5685 lm 7710 lm	155 lm/W 152 lm/W 149 lm/W 143 lm/W 137 lm/W 129 lm/W	90 90 90 90 90 90
573967	MLC SC W5.5/500 B/90/930 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	1985 lm 2620 lm 3235 lm 4435 lm 6180 lm 8380 lm	169 lm/W 265 lm/W 162 lm/W 156 lm/W 149 lm/W 140 lm/W	90 90 90 90 90 90
573968	MLC SC W5.5/500 B/90/935 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	1985 lm 2620 lm 3235 lm 4435 lm 6180 lm 8380 lm	169 lm/W 265 lm/W 162 lm/W 156 lm/W 149 lm/W 140 lm/W	90 90 90 90 90 90
573969	MLC SC W5.5/500 B/90/940 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	2145 lm 2830 lm 3495 lm 4790 lm 6675 lm 9050 lm	182 lm/W 179 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573970	MLC SC W5.5/500 B/90/950 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	2145 lm 2830 lm 3495 lm 4790 lm 6675 lm 9050 lm	182 lm/W 179 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90
573971	MLC SC W5.5/500 B/90/965 HO G1	90 pcs.	150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	2145 lm 2830 lm 3495 lm 4790 lm 6675 lm 9050 lm	182 lm/W 179 lm/W 175 lm/W 168 lm/W 160 lm/W 151 lm/W	90 90 90 90 90 90

Lifetime

Ref. No.	Type	LED quantity
573960	MLC SC W5.5/500 B/90/827 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573961	MLC SC W5.5/500 B/90/830 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 80 °C 40 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573962	MLC SC W5.5/500 B/90/835 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10 10
573963	MLC SC W5.5/500 B/90/840 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 50 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10 10
573964	MLC SC W5.5/500 B/90/850 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 80 °C 50 °C 40 °C 50 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573965	MLC SC W5.5/500 B/90/865 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 50 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573966	MLC SC W5.5/500 B/90/927 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10 10 10 10
573967	MLC SC W5.5/500 B/90/930 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	50 °C 80 °C 40 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 40 °C 50 °C 80 °C 40 °C 80 °C 50 °C 50 °C 50 °C 40 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573968	MLC SC W5.5/500 B/90/935 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 40 °C 40 °C 80 °C 50 °C 50 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573969	MLC SC W5.5/500 B/90/940 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	50 °C 40 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 80 °C 40 °C 80 °C 50 °C 80 °C 50 °C 40 °C 50 °C 40 °C 50 °C 80 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573970	MLC SC W5.5/500 B/90/950 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	40 °C 80 °C 50 °C 40 °C 50 °C 80 °C 80 °C 50 °C 40 °C 50 °C 40 °C 80 °C 80 °C 40 °C 50 °C 50 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573971	MLC SC W5.5/500 B/90/965 HO G1	90 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
150 mA 200 mA 250 mA 350 mA 500 mA 700 mA	80 °C 50 °C 40 °C 40 °C 80 °C 50 °C 80 °C 40 °C 50 °C 80 °C 50 °C 40 °C 40 °C 50 °C 50 °C 80 °C 80 °C 50 °C 40 °C	93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 102000 hrs. 93000 hrs. 93000 hrs. 93000 hrs. 93000 hrs.	80 80 80 80 80 80 80 80 80 80 80 80 80 80 70 80 80 80 80	10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
573960	MLC SC W5.5/500 B/90/827 HO G1	2640430	D
573961	MLC SC W5.5/500 B/90/830 HO G1	2640431	D
573962	MLC SC W5.5/500 B/90/835 HO G1	2640433	C
573963	MLC SC W5.5/500 B/90/840 HO G1	2640434	C
573964	MLC SC W5.5/500 B/90/850 HO G1	2640435	C
573965	MLC SC W5.5/500 B/90/865 HO G1	2640437	C
573966	MLC SC W5.5/500 B/90/927 HO G1	2640438	E
573967	MLC SC W5.5/500 B/90/930 HO G1	2640439	D
573968	MLC SC W5.5/500 B/90/935 HO G1	2640441	D
573969	MLC SC W5.5/500 B/90/940 HO G1	2640442	D
573970	MLC SC W5.5/500 B/90/950 HO G1	2640443	D
573971	MLC SC W5.5/500 B/90/965 HO G1	2640444	D

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
573960	MLC SC W5.5/500 B/90/827 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573961	MLC SC W5.5/500 B/90/830 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573962	MLC SC W5.5/500 B/90/835 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573963	MLC SC W5.5/500 B/90/840 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573964	MLC SC W5.5/500 B/90/850 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573965	MLC SC W5.5/500 B/90/865 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573966	MLC SC W5.5/500 B/90/927 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573967	MLC SC W5.5/500 B/90/930 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573968	MLC SC W5.5/500 B/90/935 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573969	MLC SC W5.5/500 B/90/940 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573970	MLC SC W5.5/500 B/90/950 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf
573971	MLC SC W5.5/500 B/90/965 HO G1	90 pcs.	EU Declaration of Conformity Module LED Line SMD Comfort-B 3R High Output.pdf	VDE_CERTIFICATE_0040060920_ORDER_329664_13022644.pdf

Ref. No.	Type	LED quantity	2D data	3D data
573960	MLC SC W5.5/500 B/90/827 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573961	MLC SC W5.5/500 B/90/830 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573962	MLC SC W5.5/500 B/90/835 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573963	MLC SC W5.5/500 B/90/840 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573964	MLC SC W5.5/500 B/90/850 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573965	MLC SC W5.5/500 B/90/865 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573966	MLC SC W5.5/500 B/90/927 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573967	MLC SC W5.5/500 B/90/930 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573968	MLC SC W5.5/500 B/90/935 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573969	MLC SC W5.5/500 B/90/940 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573970	MLC SC W5.5/500 B/90/950 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip
573971	MLC SC W5.5/500 B/90/965 HO G1	90 pcs.	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	3D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.zip

ldt und ies data
LDC_LED Line SMD 3R Comfort-B HO + Optics 500mm IP40.zip

Ref. No.	Type
573960	MLC SC W5.5/500 B/90/827 HO G1
573961	MLC SC W5.5/500 B/90/830 HO G1
573962	MLC SC W5.5/500 B/90/835 HO G1
573963	MLC SC W5.5/500 B/90/840 HO G1
573964	MLC SC W5.5/500 B/90/850 HO G1
573965	MLC SC W5.5/500 B/90/865 HO G1
573966	MLC SC W5.5/500 B/90/927 HO G1
573967	MLC SC W5.5/500 B/90/930 HO G1
573968	MLC SC W5.5/500 B/90/935 HO G1
573969	MLC SC W5.5/500 B/90/940 HO G1
573970	MLC SC W5.5/500 B/90/950 HO G1
573971	MLC SC W5.5/500 B/90/965 HO G1

Ref. No.	Type	2D data	3D data
573960	MLC SC W5.5/500 B/90/827 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573961	MLC SC W5.5/500 B/90/830 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573962	MLC SC W5.5/500 B/90/835 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10 10
573963	MLC SC W5.5/500 B/90/840 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10 10
573964	MLC SC W5.5/500 B/90/850 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573965	MLC SC W5.5/500 B/90/865 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573966	MLC SC W5.5/500 B/90/927 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10 10 10 10
573967	MLC SC W5.5/500 B/90/930 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573968	MLC SC W5.5/500 B/90/935 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573969	MLC SC W5.5/500 B/90/940 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573970	MLC SC W5.5/500 B/90/950 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10
573971	MLC SC W5.5/500 B/90/965 HO G1	2D_MLC_SC_W5.5-500_B-90-yzz_HO_G1.pdf	10 10 10 10 10 10 10 10 10 10 10 10 10 10 50 10 10 10 10
