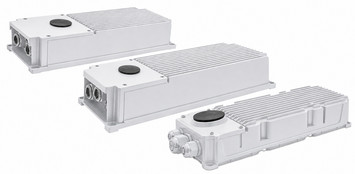

PrimeLine NFC HP DMX DALI2 Dx
For installation in stadium lighting
Robust LED driver with NFC interface for configuring parameters and functions and for reading out operating data (DALI Parts 251, 252, 253). The LED drivers have standardised DALI2 and DMX512 dimming interfaces, as well as an integrated DALI bus power supply (DALI Part 250) and a 24V/125 mA power supply (DALI Part 150). The LED drivers are therefore ideal for all applications in combination with and without sensors.
Product benefits
- D4i certified
- Degree of protection: IP66
- Dimmable: DALI (Ed. 2)
- Dimmable: DMX512/RDM
- Low power consumption in standby: < 0.5W
- Product guarantee: 5 years
- Selectable output current via DALI
- Selectable output current via NFC
- Surge protection: up to 20 kV
- Very low ripple: < 5%
- Long service life: up to 100.000 hrs.
Choose a variant:
PrimeLine NFC HP DMX DALI2 Dx
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary - secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187628 | ECXd 2600.759 | 680 W | no Isolation | 335 mm | 143.5 mm | 58.6 mm | 3200 g | |
| 187629 | ECXd 3400.760 | 880 W | no Isolation | 400 mm | 150 mm | 80.5 mm | 4100 g | |
| 187630 | ECXd22300.761 | 600 W | no Isolation | 400 mm | 150 mm | 80.5 mm | 4500 g | |
| 187631 | ECXd32300.761 | 600 W | no Isolation | 500 mm | 150 mm | 80.5 mm | 7000 g | |
| 187632 | ECXd32700.761 | 700 W | no Isolation | 500 mm | 150 mm | 80.5 mm | 7000 g |
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|---|
| 187628 | ECXd 2600.759 | 680 W |
