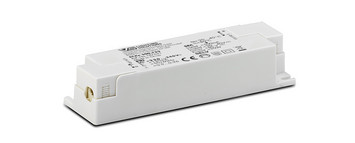

EasyLine Simple Fix C

For installation in compact luminaires

Compact casing design with integrated strain relief for independent operation.

Product benefits

  • Product guarantee: 5 years
  • SELV
  • Very low ripple: < 5%
  • With integrated cord grip for independent operation
  • Long service life: up to 50.000 hrs.

Choose a variant:

EasyLine Simple Fix C

Ref. No. Type Max. output power at AC operation Family data sheet Isolation primary - secondary Length Width Height Weight
187621 ECXe 500.752 20 W SELV 127 mm 43 mm 25 mm 80 g
187622 ECXe 600.753 24 W SELV 127 mm 43 mm 25 mm 80 g
187623 ECXe 700.754 28 W SELV 127 mm 43 mm 25 mm 80 g
187624 ECXe 800.755 32 W SELV 127 mm 43 mm 25 mm 80 g
187625 ECXe 900.756 36 W SELV 127 mm 43 mm 25 mm 80 g
187626 ECXe 1050.757 42 W SELV 127 mm 43 mm 25 mm 150 g
187678 ECXe 100.792 4 W SELV 127 mm 43 mm 25 mm 61 g
187679 ECXe 150.793 6 W SELV 127 mm 43 mm 25 mm 61 g
187680 ECXe 200.794 8 W SELV 127 mm 43 mm 25 mm 61 g
187681 ECXe 250.795 10 W SELV 127 mm 43 mm 25 mm 61 g
187682 ECXe 300.796 12 W SELV 127 mm 43 mm 25 mm 66 g
187683 ECXe 350.797 14 W SELV 127 mm 43 mm 25 mm 66 g
187684 ECXe 400.798 16 W SELV 127 mm 43 mm 25 mm 66 g
187685 ECXe 450.799 18 W SELV 127 mm 43 mm 25 mm 66 g
Ref. No. Type Max. output power at AC operation Output current Min. output voltage Max. output voltage Output ripple (100 Hz) SVM value Output current tolerance – Output current tolerance +
187621 ECXe 500.752 20 W 500 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187622 ECXe 600.753 24 W 600 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187623 ECXe 700.754 28 W 700 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187624 ECXe 800.755 32 W 800 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187625 ECXe 900.756 36 W 900 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187626 ECXe 1050.757 42 W 1050 mA 30 V 40 V 4 % < 0.4 -5 % 5 %
187678 ECXe 100.792 4 W 100 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187679 ECXe 150.793 6 W 150 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187680 ECXe 200.794 8 W 200 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187681 ECXe 250.795 10 W 250 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187682 ECXe 300.796 12 W 300 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187683 ECXe 350.797 14 W 350 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187684 ECXe 400.798 16 W 400 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
187685 ECXe 450.799 18 W 450 mA 30 V 40 V 3 % < 0.4 -5 % 5 %
Ref. No. Type Max. output power at AC operation Min. voltage Max. voltage Min. input voltage AC Max. input voltage AC Min. mains frequency Max. mains frequency Input current at 230 V AC with max. load Power factor at full load (230 V) Efficiency at full load (230 V) THD at full load (230 V) Standby power No-load standby power Inrush current Inrush current time at 50% Ipeak Time to light on in AC operation
187621 ECXe 500.752 20 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 110 mA 0.96 0.875 9 % no standby operation possible no load operation not intended 18.7 A 218 µs 300 ms
187622 ECXe 600.753 24 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 125 mA 0.97 0.885 7 % no standby operation possible no load operation not intended 18.7 A 218 µs 300 ms
187623 ECXe 700.754 28 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 145 mA 0.97 0.885 7 % no standby operation possible no load operation not intended 18.7 A 218 µs 300 ms
187624 ECXe 800.755 32 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 165 mA 0.98 0.89 6 % no standby operation possible no load operation not intended 18.7 A 218 µs 300 ms
187625 ECXe 900.756 36 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 185 mA 0.98 0.89 9 % no standby operation possible no load operation not intended 18.7 A 218 µs 300 ms
187626 ECXe 1050.757 42 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 220 mA 0.98 0.9 5 % no standby operation possible ≤ 0.45 W 20.9 A 286 µs 250 ms
187678 ECXe 100.792 4 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 24 mA 0.96 0.78 10 % no standby operation possible no load operation not intended 11.5 A 160 µs 300 ms
187679 ECXe 150.793 6 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 34 mA 0.96 0.82 13 % no standby operation possible no load operation not intended 11.5 A 160 µs 300 ms
187680 ECXe 200.794 8 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 43 mA 0.98 0.84 8 % no standby operation possible no load operation not intended 11.5 A 160 µs 300 ms
187681 ECXe 250.795 10 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 54 mA 0.98 0.86 6 % no standby operation possible no load operation not intended 11.5 A 160 µs 300 ms
187682 ECXe 300.796 12 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 63 mA 0.98 0.855 9 % no standby operation possible no load operation not intended 11.7 A 174 µs 300 ms
187683 ECXe 350.797 14 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 73 mA 0.98 0.865 7 % no standby operation possible no load operation not intended 11.7 A 174 µs 300 ms
187684 ECXe 400.798 16 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 83 mA 0.98 0.87 6 % no standby operation possible no load operation not intended 11.7 A 174 µs 300 ms
187685 ECXe 450.799 18 W 220 V 240 V 198 V 264 V 50 Hz 60 Hz 93 mA 0.98 0.87 6 % no standby operation possible no load operation not intended 11.7 A 174 µs 300 ms
Ref. No. Type Max. output power at AC operation
187621 ECXe 500.752 20 W
187622 ECXe 600.753 24 W
187623 ECXe 700.754 28 W
187624 ECXe 800.755 32 W
187625 ECXe 900.756 36 W
187626 ECXe 1050.757 42 W
187678 ECXe 100.792 4 W
187679 ECXe 150.793 6 W
187680 ECXe 200.794 8 W
187681 ECXe 250.795 10 W
187682 ECXe 300.796 12 W
187683 ECXe 350.797 14 W
187684 ECXe 400.798 16 W
187685 ECXe 450.799 18 W
Ref. No. Type Max. output power at AC operation Dimmable DALI power supply integrated Min. dimming level Max. dimming level
187621 ECXe 500.752 20 W No No 100 % 100 %
187622 ECXe 600.753 24 W No No 100 % 100 %
187623 ECXe 700.754 28 W No No 100 % 100 %
187624 ECXe 800.755 32 W No No 100 % 100 %
187625 ECXe 900.756 36 W No No 100 % 100 %
187626 ECXe 1050.757 42 W No No 100 % 100 %
187678 ECXe 100.792 4 W No No 100 % 100 %
187679 ECXe 150.793 6 W No No 100 % 100 %
187680 ECXe 200.794 8 W No No 100 % 100 %
187681 ECXe 250.795 10 W No No 100 % 100 %
187682 ECXe 300.796 12 W No No 100 % 100 %
187683 ECXe 350.797 14 W No No 100 % 100 %
187684 ECXe 400.798 16 W No No 100 % 100 %
187685 ECXe 450.799 18 W No No 100 % 100 %
Ref. No. Type Max. output power at AC operation Isolation primary - secondary Open circuit voltage (Umax.) Protection against transient main peaks L–N Leakage current over PE
187621 ECXe 500.752 20 W SELV 60 V 1 kV 0.5 mA
187622 ECXe 600.753 24 W SELV 60 V 1 kV 0.5 mA
187623 ECXe 700.754 28 W SELV 60 V 1 kV 0.5 mA
187624 ECXe 800.755 32 W SELV 60 V 1 kV 0.5 mA
187625 ECXe 900.756 36 W SELV 60 V 1 kV 0.5 mA
187626 ECXe 1050.757 42 W SELV 60 V 1 kV 0.5 mA
187678 ECXe 100.792 4 W SELV 60 V 1 kV 0.5 mA
187679 ECXe 150.793 6 W SELV 60 V 1 kV 0.5 mA
187680 ECXe 200.794 8 W SELV 60 V 1 kV 0.5 mA
187681 ECXe 250.795 10 W SELV 60 V 1 kV 0.5 mA
187682 ECXe 300.796 12 W SELV 60 V 1 kV 0.5 mA
187683 ECXe 350.797 14 W SELV 60 V 1 kV 0.5 mA
187684 ECXe 400.798 16 W SELV 60 V 1 kV 0.5 mA
187685 ECXe 450.799 18 W SELV 60 V 1 kV 0.5 mA
