Vossloh-Schwabe as a systems supplier for street lighting

VS offers a comprehensive range of products for street and industrial applications, including LED drivers, LED modules, LED optics and surge protectors.

Vossloh-Schwabe is a trusted and experienced lighting system provider with a remarkable 100-year presence in the lighting market. VS offers a comprehensive range of products in street and industry lighting applications, including LED drivers, LED modules, LED optics, and surge protection devices, all from a single source. Their extensive experience and expertise in the industry enable them to deliver high-quality, reliable solutions for street lighting applications.

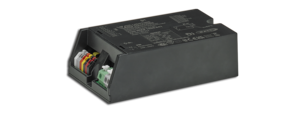

LED Driver

Product family: PrimeLine NFC S-MD DALI2 Dx (see datasheet)
Product series:     26 W / 20–38 V
                              40 W / 28–57 V
                            85 W / 35–115 V
                            120 W / 75–172 V
Current range:      300–1050 mA – current setting via NFC

Product benefits: D4i and DALI2 functionality
                           Multi-dim functionality
                               All-round protection
                               Integrated power supply
                               Compact shape - one housing for all series

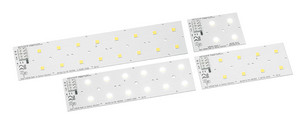

LED Modules

Product family: LED Linear Allround 5050 Gen. 2 (see datasheet)
CCT: 3000 / 4000 / 5000 / 6500 K
CRI: 70, 80
LEDs: 4 / 8 / 12 / 16
Efficiency: up to 201 lm/W

Product family: LED Linear Allround SMD Gen. 4 (see datasheet)
CCT: 2200 / 3000 / 4000 / 5000 K
CRI: 70, 80
LEDs: 4 / 8 / 12 / 16
Efficiency: up to 205 lm/W

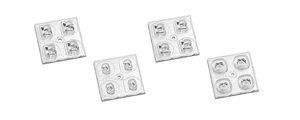

LED Optics

Product family: Compact Optics 2x2 for SMD W5
Product series: High Power 3535 (see datasheet)
High Power 5050 (see datasheet)

Product benefits: Optical Efficiency up to 96
                             High quality optical material
                         Uniform and glare-free light
                         low colour deviations

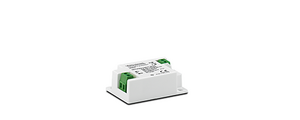

Surge protection Devices

Product family:      Light protection devices
Product series:    SPC230/10K/i-IP20 (see datasheet)
                     SPC3/230/10K/i-IP20 (see datasheet)

Product benefits: Protection class I and II available
                           Combined discharge voltage up to 12 kV
                 Voltage protection level L-N < 1,5 kV/L-PE < 1,8 kV
                             Cut-off function for max. protection of components
               Thermal protection of the MOV
                 EN 61643 certificate
