Offices

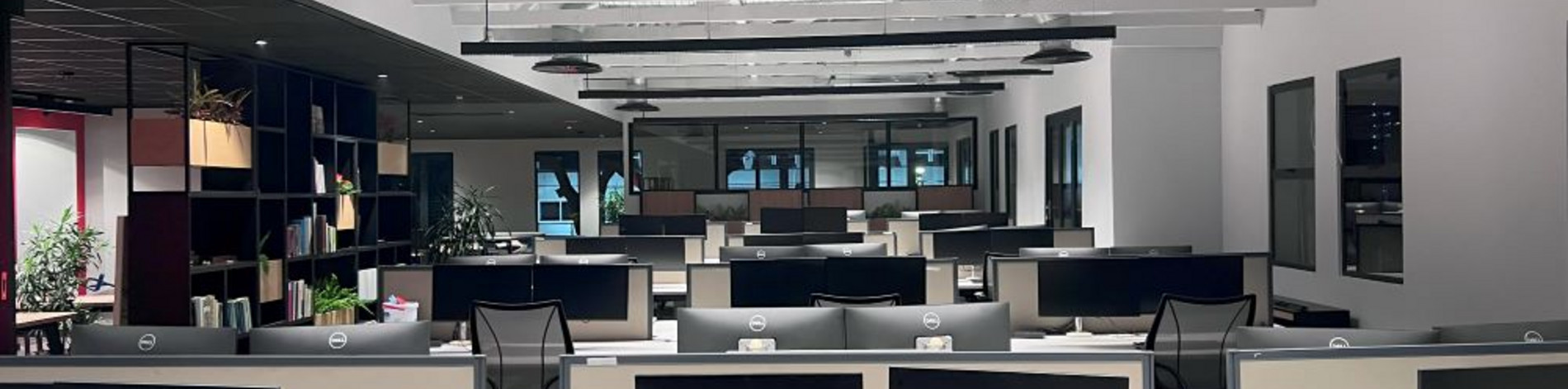

Blu2light was specified to be installed into Lighting Engineer offices in Durban, South
Africa.
The Scope of work was clear, energy saving, easy functionality, and aftersales
support.


Each space in the office is controlled by Blu2light, Motion control and daylight
harvesting is making sure.
That the correct lux levels are always present while Dali Relays are controlling
230VAC pendants and Track lighting.
Lighting in open areas that receive a lot of natural light reduce their output to up to
60%.


Wireless EnOcean switches are used in the boardroom to control the atmosphere,
the Lina Touch APP has also been setup to control the Lighting for each space.
Each space has the ability to select pre-set scenes as well as manual control.

Used Products:

186693, 45mA Dali Power Supply
186706, Blu2light MultiSensor XS
186773, Blu2light Switch S4
186561, Dali Relay
186564, 84 Watt Linear LEDset Driver, DALI
186565, 40 Watt Linear LEDset Driver, DALI
186763, 38 Watt Compact 300-1050mA Dip, DALI, independent
572123, LED Line SMD W2.5 560mm Black Dark Lighting 4000K
571825, Grid W2 1R 7x1 280mm Short end PC Matt Black
571881, Grid W2 1R 7x1 280mm Line up PC Matt Black
571827, Optic W2 1R 7x1 280mm TP PMMA 90 degree Wide
